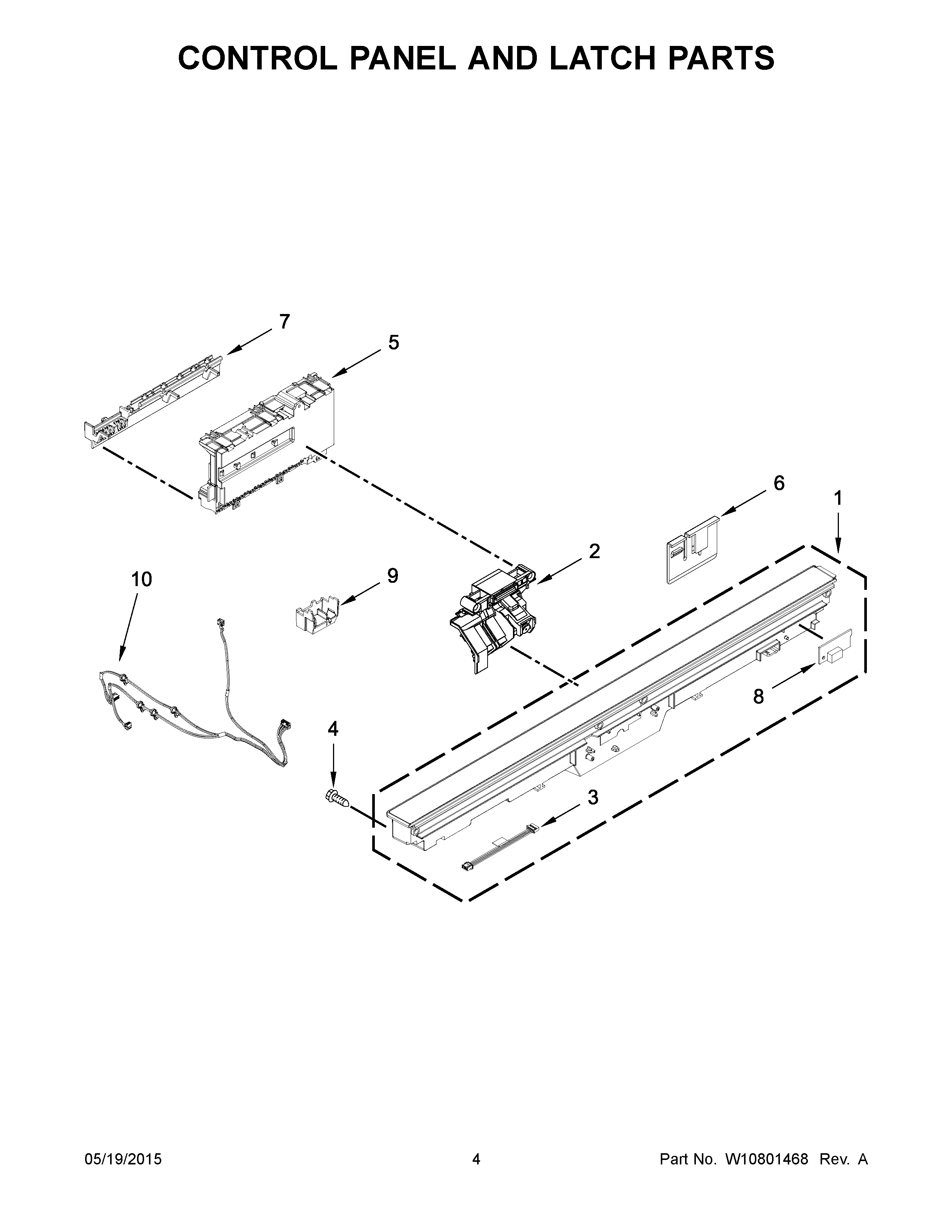

JDB9200CWP2 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	CONSOLE ASSEMBLY INCLUDES INSERT) (BLACK)
2	LATCH ASSEMBLY (INCLUDES SWITCH)
3	MAY W10528492
4	SCREW
5	MAY W10643061
6	CLIP, CONTROL
7	BRACE, CONNECTOR
8	MAY W10538035
9	BOX, CONNECTOR
10	MAY W10751782
