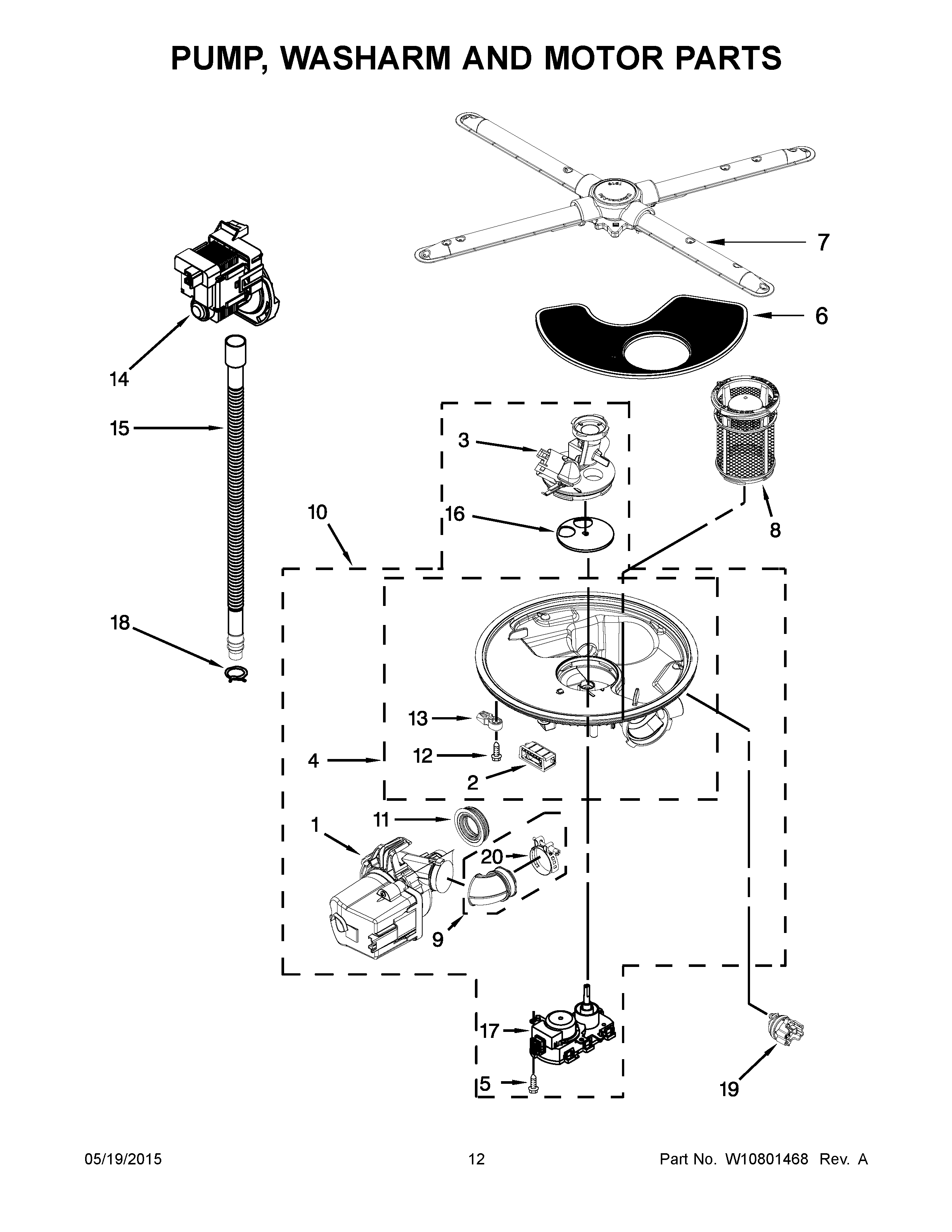

JDB9200CWP2 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1MAY W10314568
2MOTOR, ISOLATOR
3COVER, OUTLET
4SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5MAY 9741232
6SCREEN
7SPRAYARM ASSEMBLY, LOWER
8MAY W10693534
9HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
10MAY W10455260
11GROMMET
12MAY W10348407
13TAB, SUMP
14MOTOR, DRAIN
15MAY 8269144
16DISC, DIVERTER
17MAY W10476222
18HOSE CLAMP
19MAY W10705575
20CLAMP, HOSE
