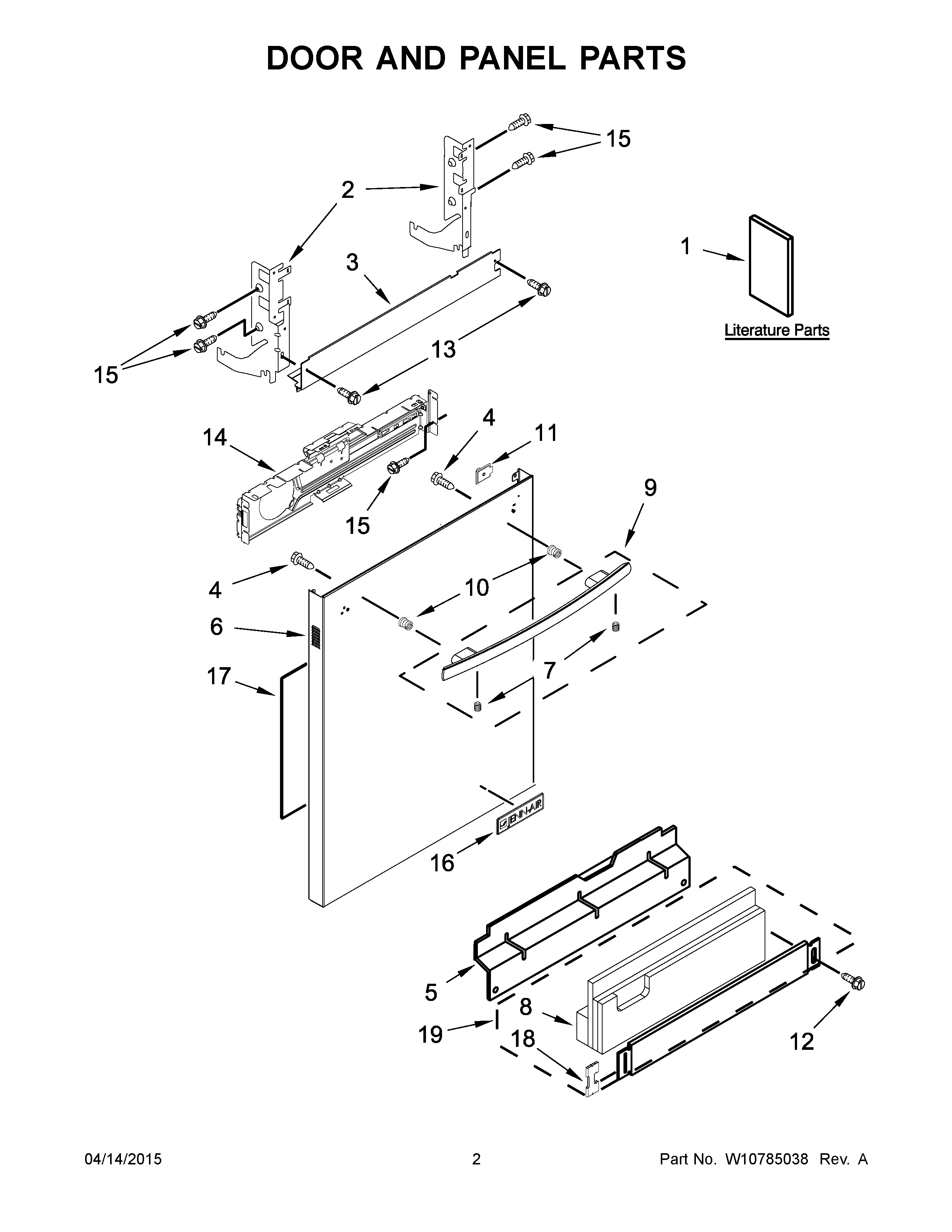

JDB9200CWS1 02 – DOOR AND PANEL PARTS

Products

Position	Product
1D	MAY W10754472
1C	MAY W10750900
1	MAY W10741197
1A	MAY W10665625
1B	MAY W10665639
2A	MAY 8534853
2	MAY 8534854
3	MAY W10321448
4	MAY W10316572
5	MAY W10195777
6	MAY W10665707
7	MAY W10276608
8	INSULATION, ACCESS PANEL
9	MAY W10709335
10	STUD, MOUNTING
11	LIGHT, PIPE
12	SCREW (BLACK)
13	Screw
14	BRACKET, CONTROL
15	SCREW
16	ASSEMBLY, BADGE (STAINLESS)
17	MAY W10073520
18	CLIP, GROUNDING
19	TOE PANEL (INCLUDES ITEM 9) (BLACK)
