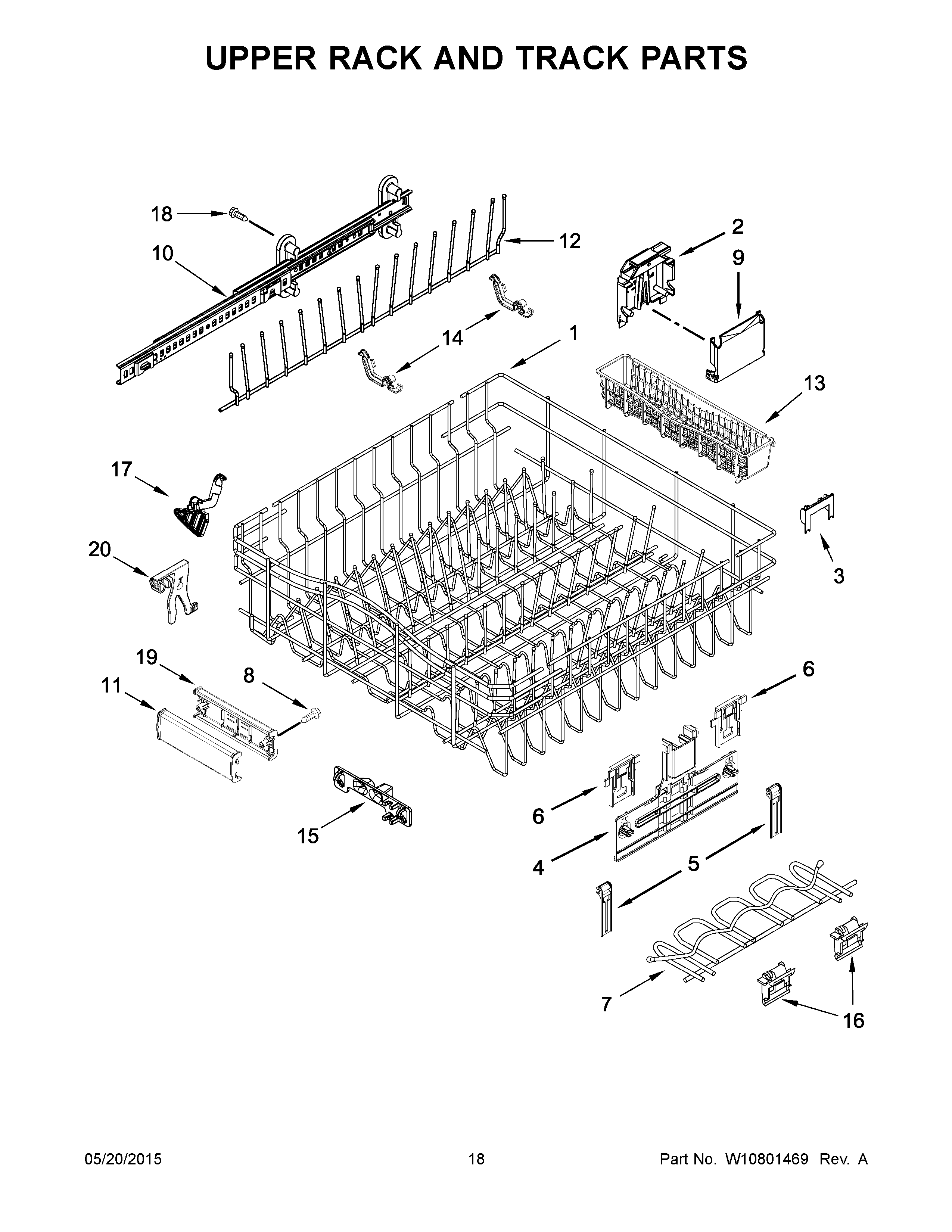

JDB9200CWS2 10 – UPPER RACK AND TRACK PARTS

JDB9200CWS2 10 – UPPER RACK AND TRACK PARTS

Written by

in

JDB9200CWS2 10 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, UPPER
2HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
2AHOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
3CLIP-LOCK ADJUSTER ARM
4ADJUSTER ASSEMBLY
5MAY W10195839
6POSITIONER, ADJUSTER
7CUPSHELF
8MAY 9741232
9MAY W10250162
10TRACK ASSEMBLY (LEFT HAND)
10ATRACK ASSEMBLY (RIGHT HAND)
11HANDLE, DISHRACK FRONT
12TINE, FOLD DOWN
13BASKET, UTENSIL ROW
14MAY W10082853
15MAY 8539102
16CLIP, CUPSHELF
17CLIP, DISPENSER GUARD
18MAY W10309090
19HANDLE, DISHRACK REAR
20CLIP, STEMWARE
