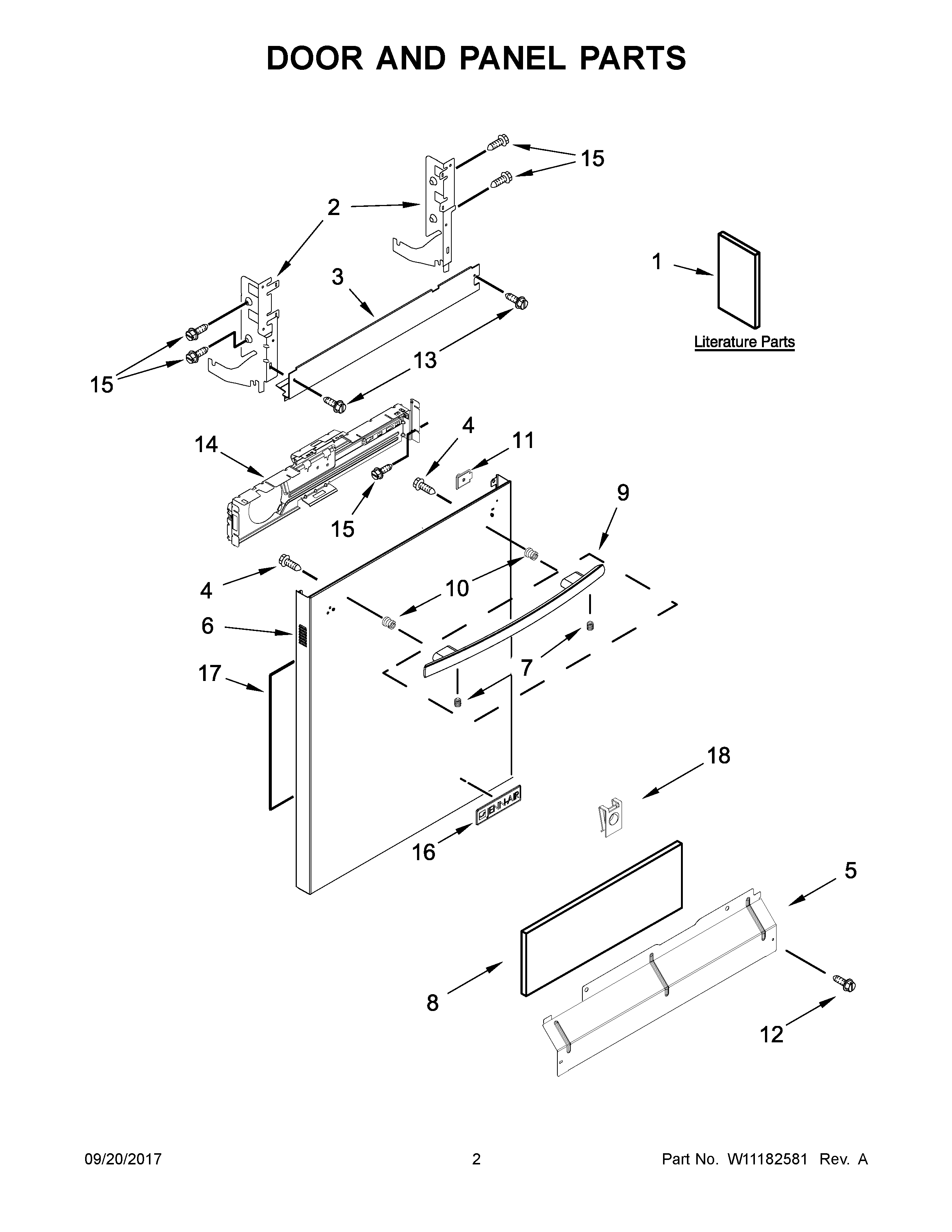

JDB9200CWS3 02 – DOOR AND PANEL PARTS

JDB9200CWS3 02 – DOOR AND PANEL PARTS

Written by

in

JDB9200CWS3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
1BMAY W10665639
1AENERGY GUIDE
2MAY 8534854
2AMAY 8534853
3BARRIER, VAPOR
4MAY W10316572
5ACCESS PANEL (BLACK)
6MAY W10665707
7MAY W10276608
8MAY W10519755
9MAY W10786149
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17MAY W10073520
18U-NUT
