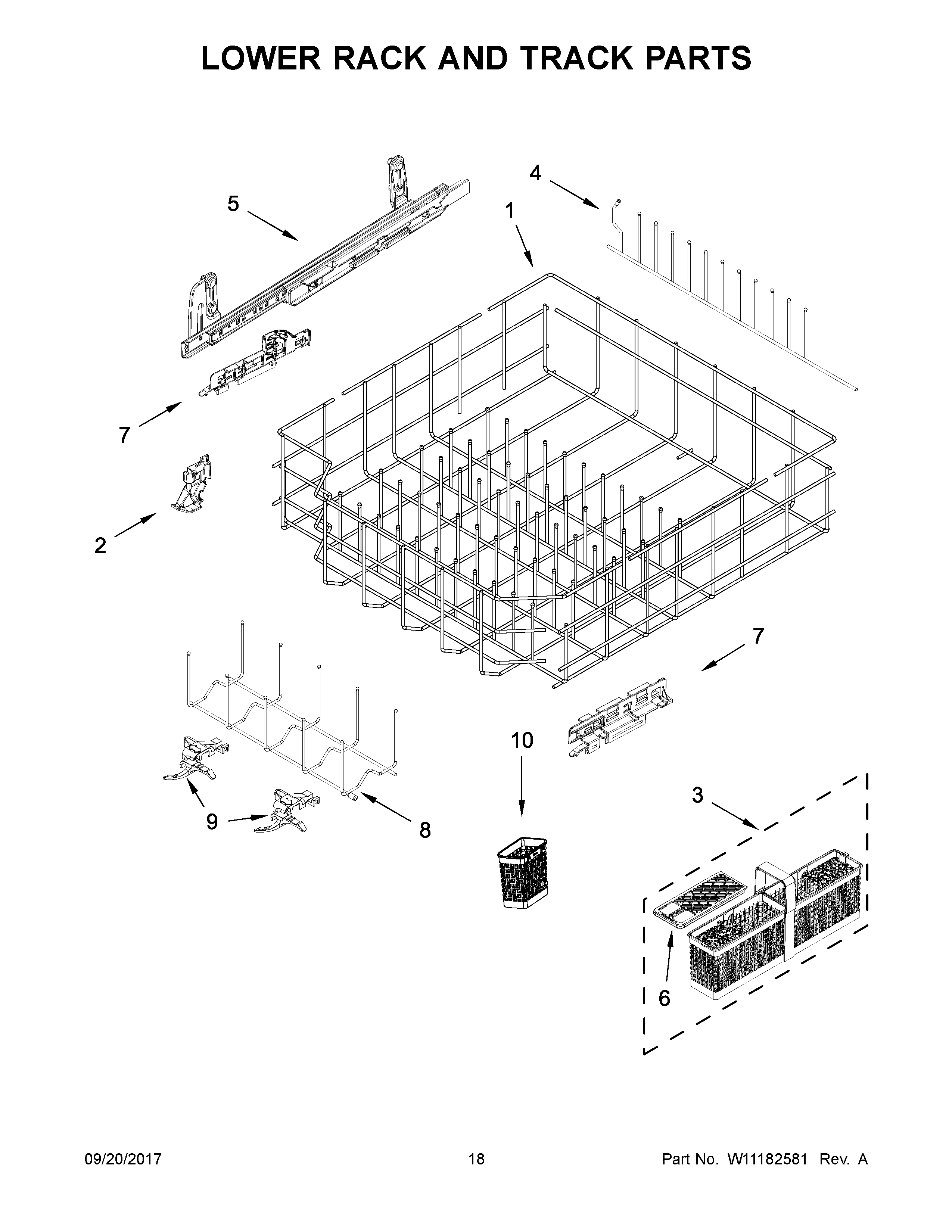

JDB9200CWS3 10 – LOWER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, LOWER
2ASUPPORT, FRONT SKI (RIGHT HAND)
2SUPPORT, FRONT SKI (LEFT HAND)
3BASKET ASSEMBLY, SILVERWARE
4TINEROW
5TRACK ASSEMBLY (LEFT HAND)
5ATRACK ASSEMBLY (RIGHT HAND)
6LID, SILVERWARE BASKET
7SUPPORT, REAR CARRIAGE (LEFT HAND)
7ASUPPORT, REAR CARRIAGE (RIGHT HAND)
8TINE ROW, SLIDING
9RETAINER, SLIDING TINE ROW
10BASKET, UTENSIL
