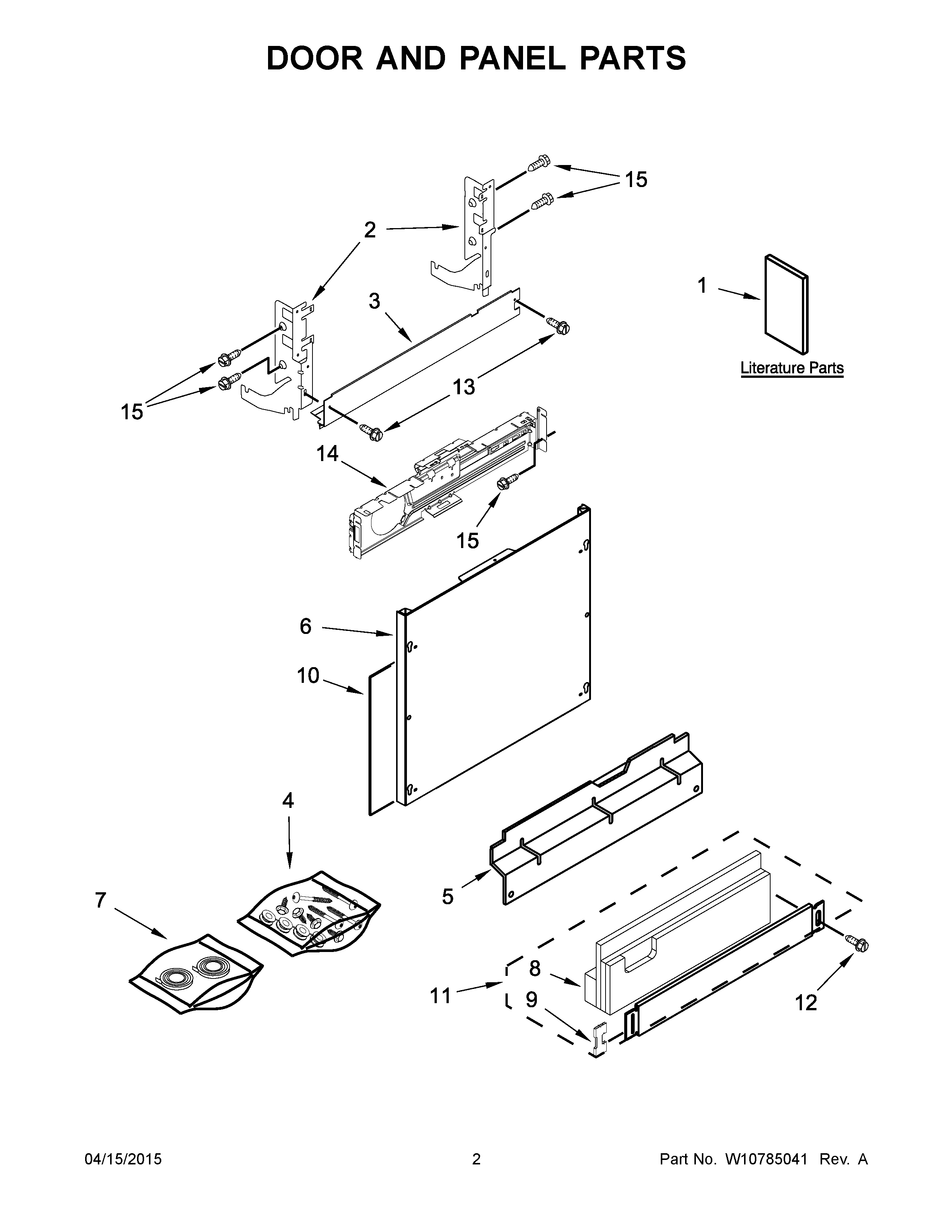

JDB9200CWX2 02 – DOOR AND PANEL PARTS

JDB9200CWX2 02 – DOOR AND PANEL PARTS

Written by

in

JDB9200CWX2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DMAY W10754472
1ETEMPLATE, 6" CUSTOM PANEL
1MAY W10741197
1AMAY W10665625
1BMAY W10665639
1CMAY W10750900
2MAY 8534854
2AMAY 8534853
3MAY W10321448
4HARDWARE, CUSTOM PANEL
5MAY W10195777
6PANEL, CUSTOM 6“ (BLACK)
7SEAL, PANEL READY
8INSULATION, ACCESS PANEL
9CLIP, GROUNDING
10INSULATION, FRONT PANEL
11TOE PANEL (INCLUDES ITEM 9) (BLACK)
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
