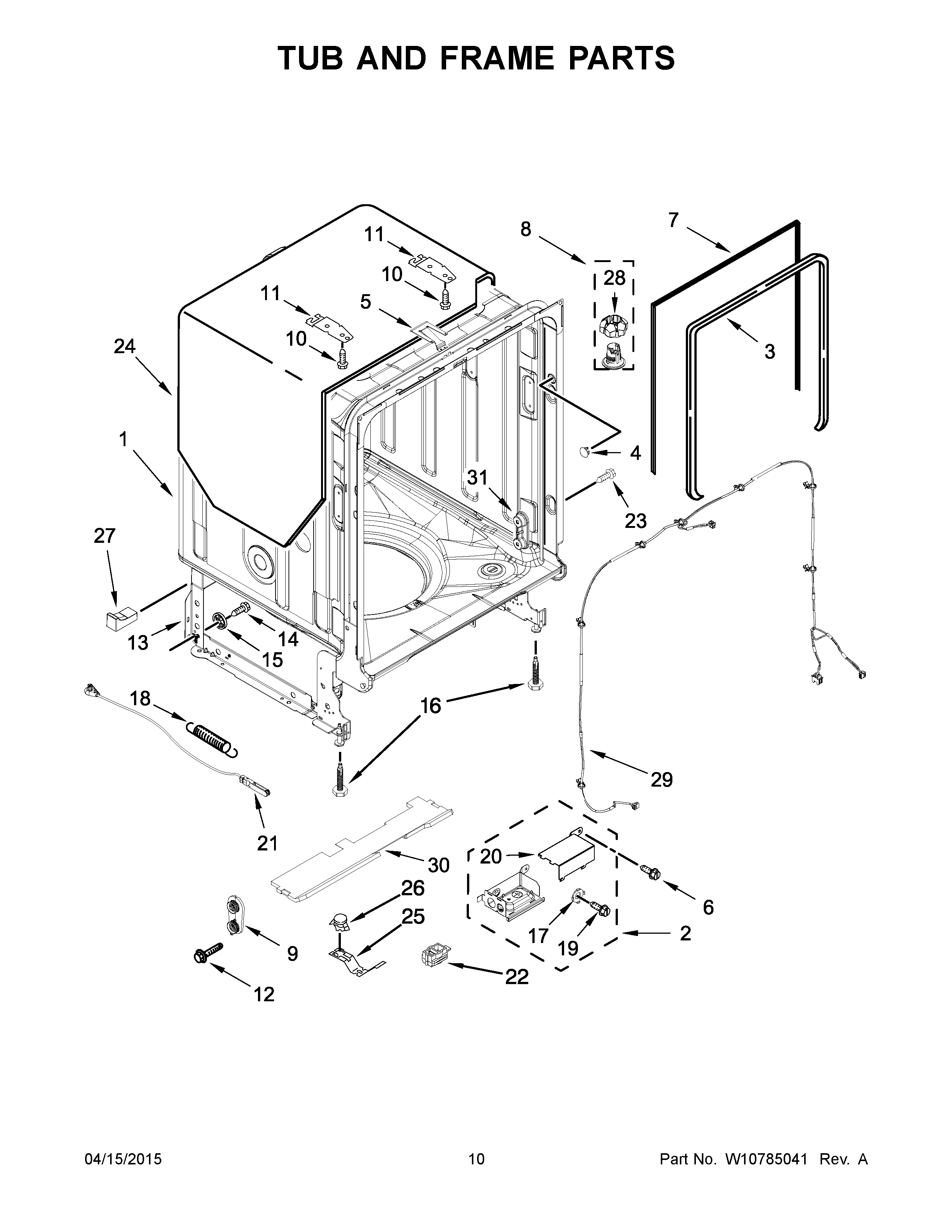

JDB9200CWX2 06 – TUB AND FRAME PARTS

JDB9200CWX2 06 – TUB AND FRAME PARTS

Written by

in

JDB9200CWX2 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10713318
2	ASSEMBLY, TERMINAL BOX
3	SEAL, DOOR
4	MAY W10082838
5	STRIKE, LATCH
6	Screw
7	SEAL, CABINET
8	LENS, LIGHT ASSEMBLY
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	SUPPORT ASSEMBLY, REAR
14	MAY W10348411
15	WHEEL LEG
16	LEVELER, LEG
17	WASHER, PRONGED CUP
18	SPRING, DOOR BALANCE
19	MAY 3400014
20	COVER, TERMINAL BOX
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	MAY W10309090
24	MAY 8573240
25	MAY W10300703
26	MAY W10195091
27A	SPACER, TUB/BRACE (RIGHT)
27	SPACER, TUB/BRACE (LEFT)
28	NUT, RETAINER
29	MAY W10566911
30	MAY W10746770
31	MOUNT, LOWER TRACK ASSEMBLY
