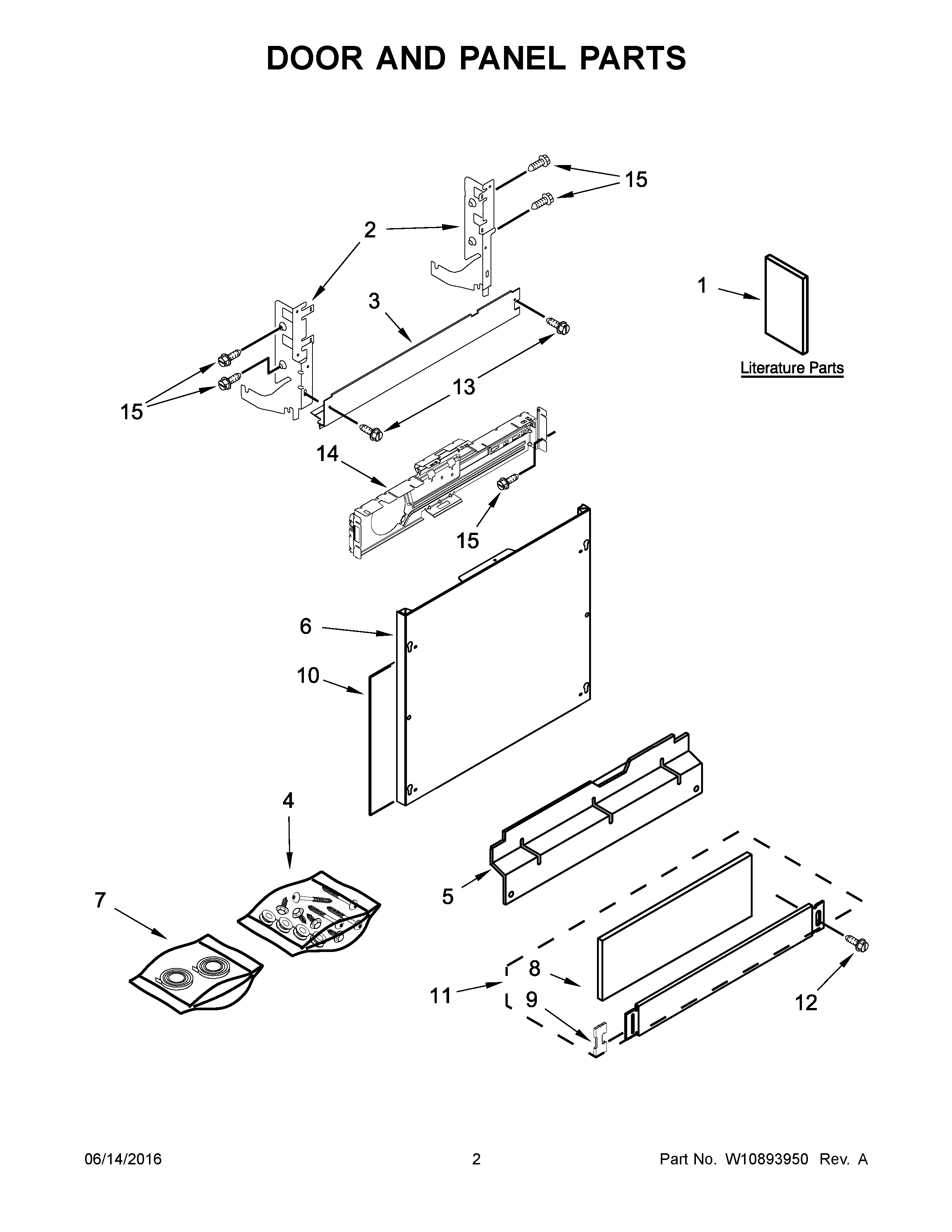

JDB9200CWX3 02 – DOOR AND PANEL PARTS

JDB9200CWX3 02 – DOOR AND PANEL PARTS

Written by

in

JDB9200CWX3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DMAY W10754472
1CMAY W10750900
1BMAY W10665639
1MAY W10741197
1AMAY W10810670
1ETEMPLATE, 6" CUSTOM PANEL
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4HARDWARE, CUSTOM PANEL
5MAY W10195777
6PANEL, CUSTOM 6“ (BLACK)
7SEAL, PANEL READY
8MAY W10519755
9CLIP, GROUNDING
10INSULATION, FRONT PANEL
11MAY W10799405
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
