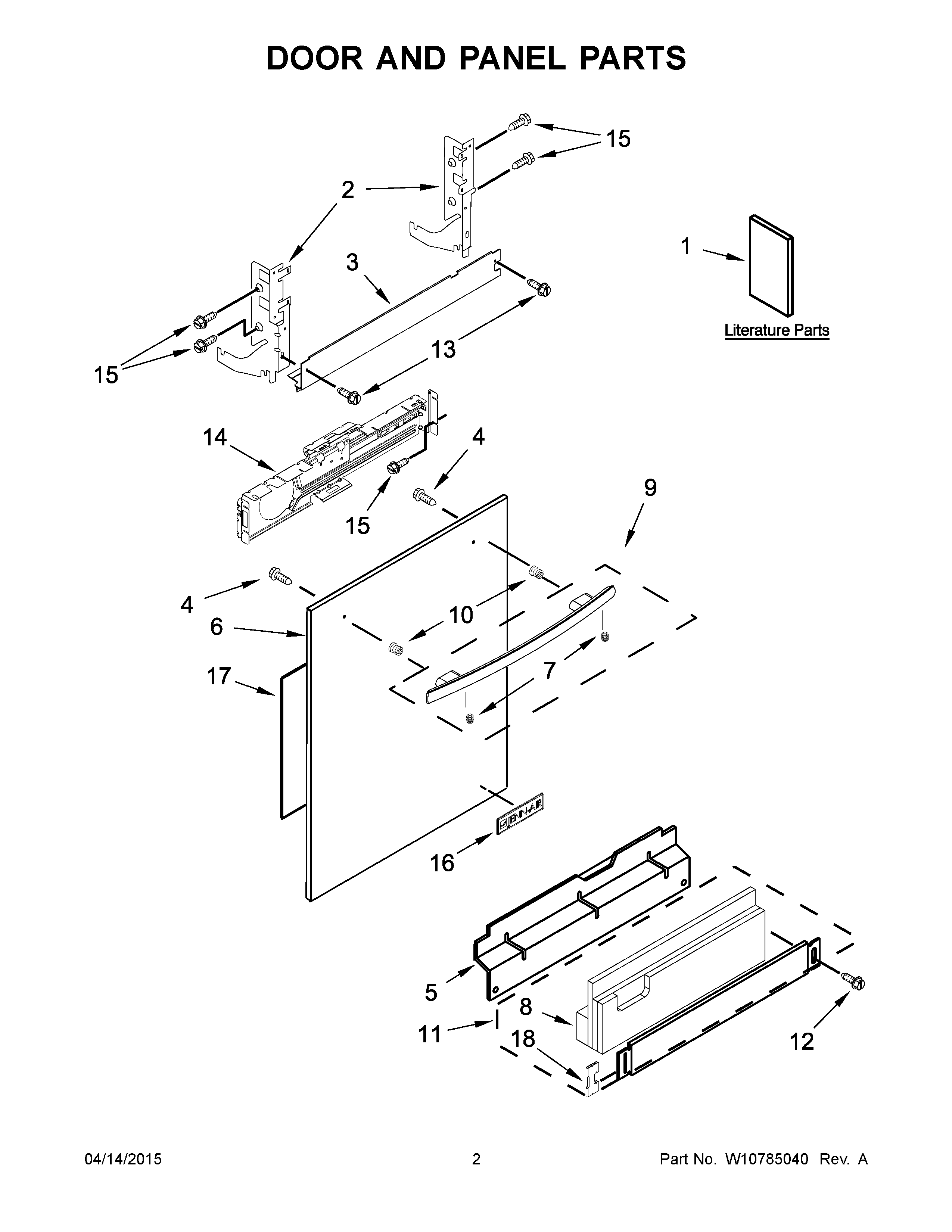

JDB9200CWY1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DMAY W10754472
1MAY W10741197
1BMAY W10665639
1AMAY W10665625
1CMAY W10750900
2AMAY 8534853
2MAY 8534854
3MAY W10321448
4MAY W10316572
5MAY W10195777
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (BLACK)
7MAY W10276608
8INSULATION, ACCESS PANEL
9MAY W10496321
10MAY W10208695
11TOE PANEL (INCLUDES ITEM 9) (BLACK)
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16ASSEMBLY, BADGE (BLACK)
17MAY W10073520
18CLIP, GROUNDING
