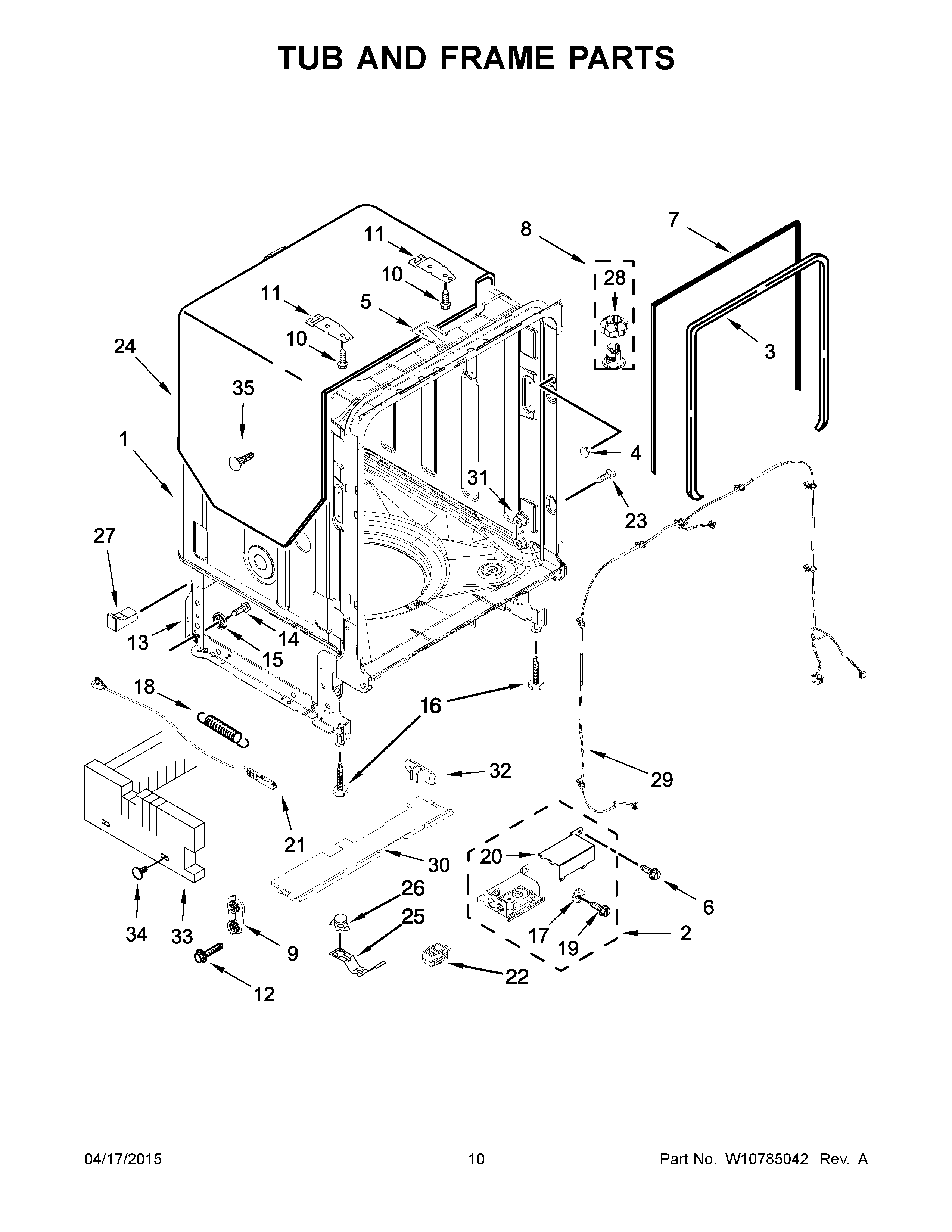

JDB9800CWP1 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10713319
2ASSEMBLY, TERMINAL BOX
3SEAL, DOOR
4MAY W10082838
5STRIKE, LATCH
6Screw
7SEAL, CABINET
8LENS, LIGHT ASSEMBLY
9DOOR BALANCE ASSEMBLY
10MAY 3367670
11MAY 8269145
12SCREW
13SUPPORT ASSEMBLY, REAR
14MAY W10348411
15WHEEL LEG
16LEVELER, LEG
17WASHER, PRONGED CUP
18MAY 8270020
19MAY 3400014
20COVER, TERMINAL BOX
21CABLE, DOOR ASSEMBLY
22MAY W10292870
23MAY W10309090
24MAY 8573239
25MAY W10300703
26MAY W10195091
27ASPACER, TUB/BRACE (RIGHT)
27SPACER, TUB/BRACE (LEFT)
28NUT, RETAINER
29MAY W10566911
30SOUND INSULATION, BOTTOM
31MOUNT, LOWER TRACK ASSEMBLY
32HANGER, SOFTENER DRAIN HOSE
33MAY W10666418
34RETAINER
35RETAINER, PUSH
