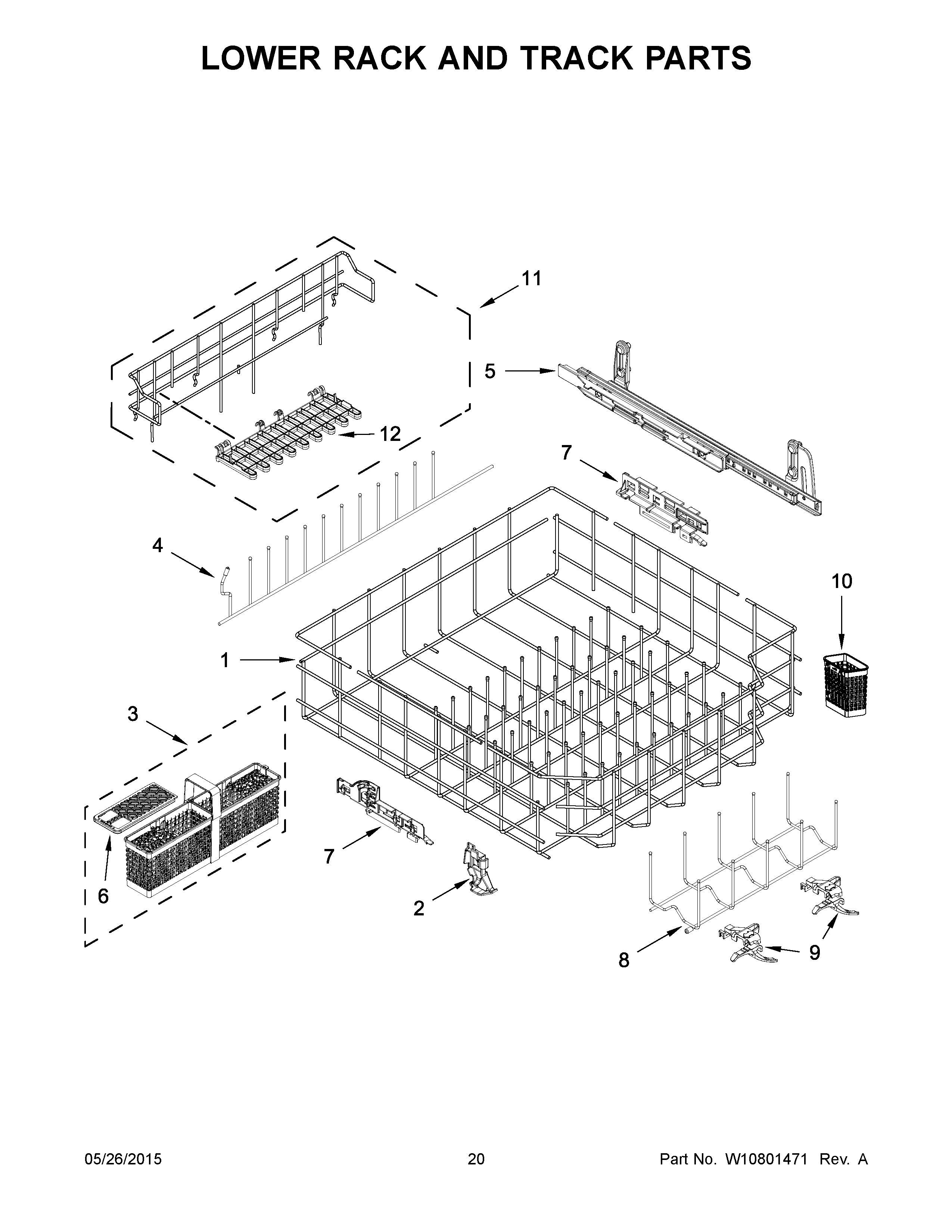

JDB9800CWP2 11 – LOWER RACK AND TRACK PARTSadmin2025-04-26T09:46:27+00:00JDB9800CWP2 11 – LOWER RACK AND TRACK PARTS
Products
| Position | Product |
|---|
| 1 | DISHRACK, LOWER |
| 2A | SUPPORT, FRONT SKI (RIGHT HAND) |
| 2 | SUPPORT, FRONT SKI (LEFT HAND) |
| 3 | BASKET ASSEMBLY, SILVERWARE |
| 4 | TINEROW |
| 5A | MAY W10579132 |
| 5 | MAY W10579131 |
| 6 | LID, SILVERWARE BASKET |
| 7 | SUPPORT, REAR CARRIAGE (LEFT HAND) |
| 7A | SUPPORT, REAR CARRIAGE (RIGHT HAND) |
| 8 | TINE ROW, SLIDING |
| 9 | RETAINER, SLIDING TINE ROW |
| 10 | BASKET, UTENSIL |
| 11 | CUPSHELF ASSEMBLY, SIDE |
| 12 | CUPSHELF |
