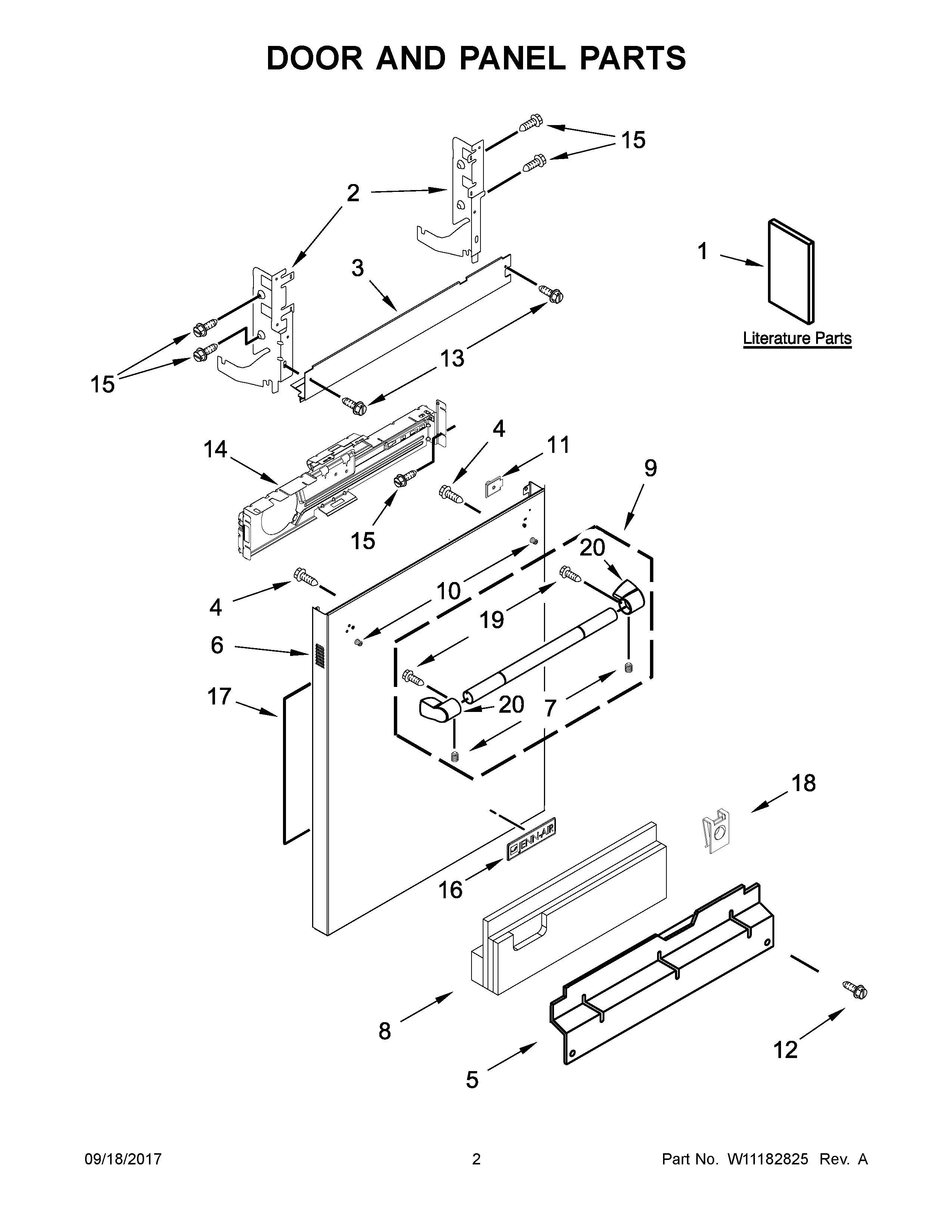

JDB9800CWP3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BMAY W10665639
1DTECH SHEET, FRENCH
1AENERGY GUIDE
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
2AMAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5ACCESS PANEL (BLACK)
6PANEL, FRONT (INCLUDES 4, 10, 11 & 16) (STAINLESS)
7SCREW, SET
8INSULATION, FOUR LAYER
9MAY W10786143
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16NAMEPLATE (STAINLESS)
17INSULATION, FRONT PANEL
18U-NUT
19MAY M0207303
20MAY W10194838
20AMAY W10194837
