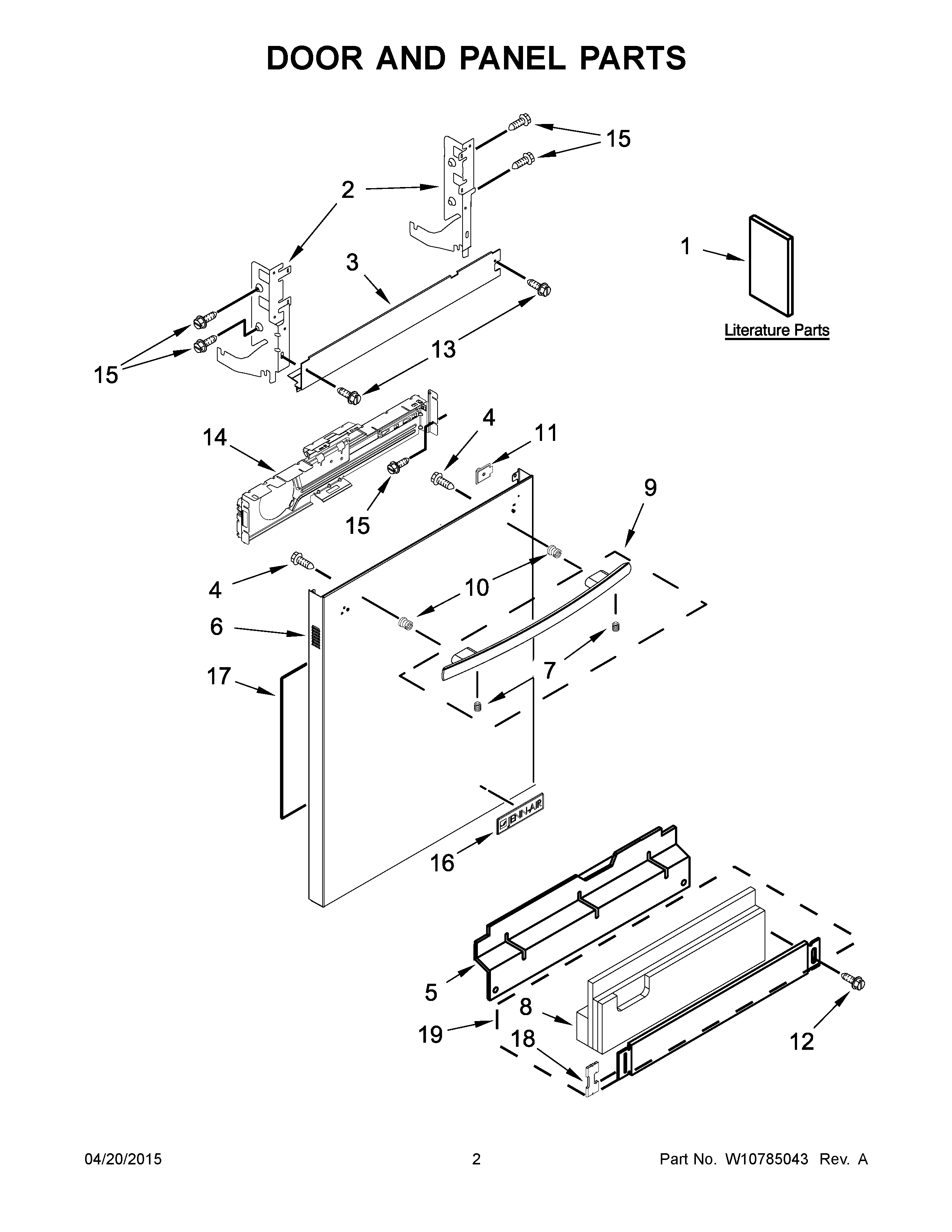

JDB9800CWS1 02 – DOOR AND PANEL PARTS

JDB9800CWS1 02 – DOOR AND PANEL PARTS

Written by

in

JDB9800CWS1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CMAY W10750900
1BMAY W10665639
1MAY W10741197
1DMAY W10754472
1AMAY W10665625
2AMAY 8534853
2MAY 8534854
3MAY W10320859
4MAY W10316572
5MAY W10195777
6MAY W10665631
7MAY W10276608
8MAY W10526105
9MAY W10709335
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17MAY W10620222
18CLIP, GROUNDING
19MAY W10586590
