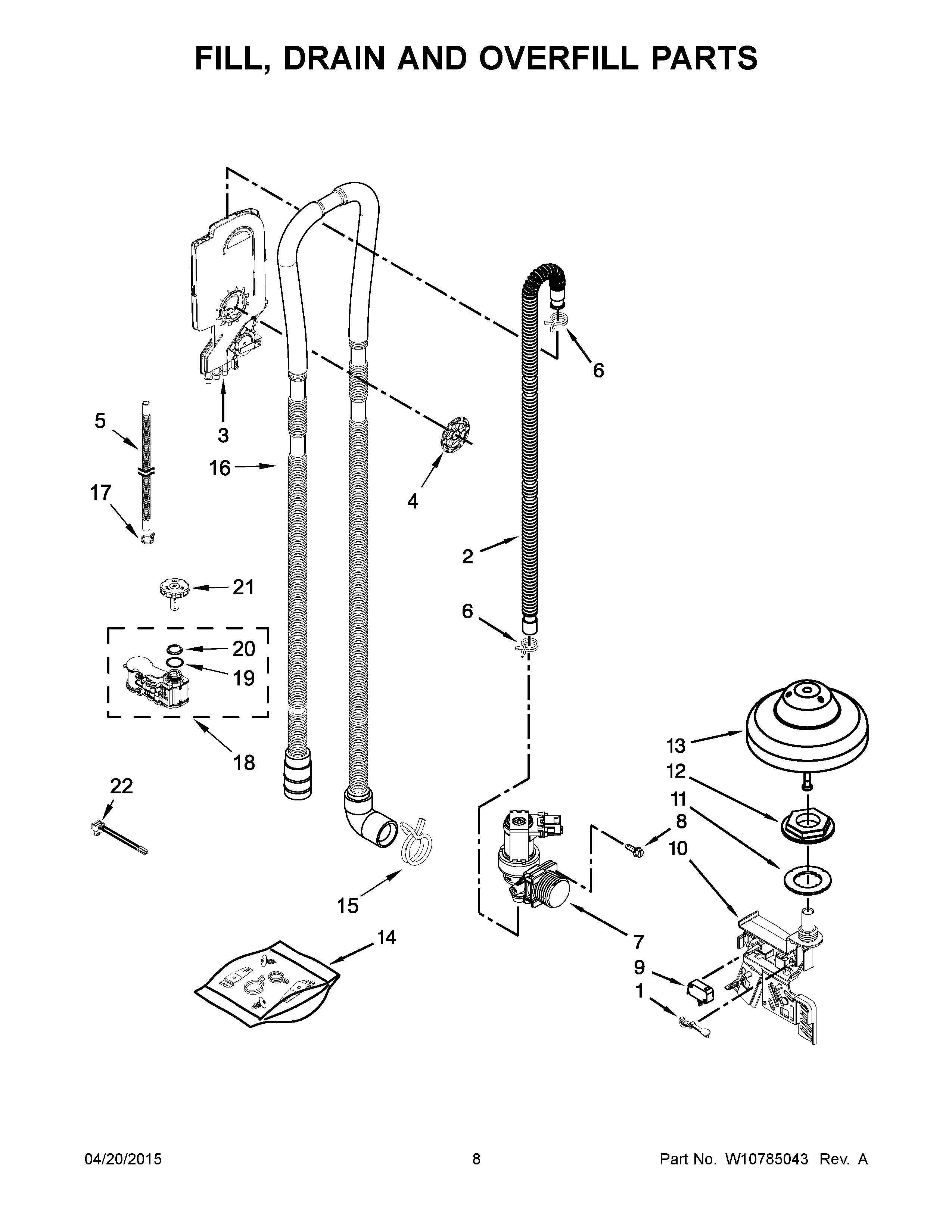

JDB9800CWS1 05 – FILL, DRAIN AND OVERFILL PARTS

JDB9800CWS1 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

JDB9800CWS1 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2MAY W10321919
3MAY W10458714
4NUT, REGEN DOSAGE
5MAY W10346255
6MAY 371505
7MAY W10327247
8SCREW
9MAY W10195039
10HOUSING, OVERFILL (ALSO ORDER ITEM 11)
11MAY 8531743
12MAY W10195038
13MAY W10195036
14MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
15MAY 370445
16MAY W10545279
17MAY 9724997
18MAY W10347358
19GASKET, SOFTENER TANK
20NUT, SOFTENER TANK
21MAY W10610924
22MAY W10367058
