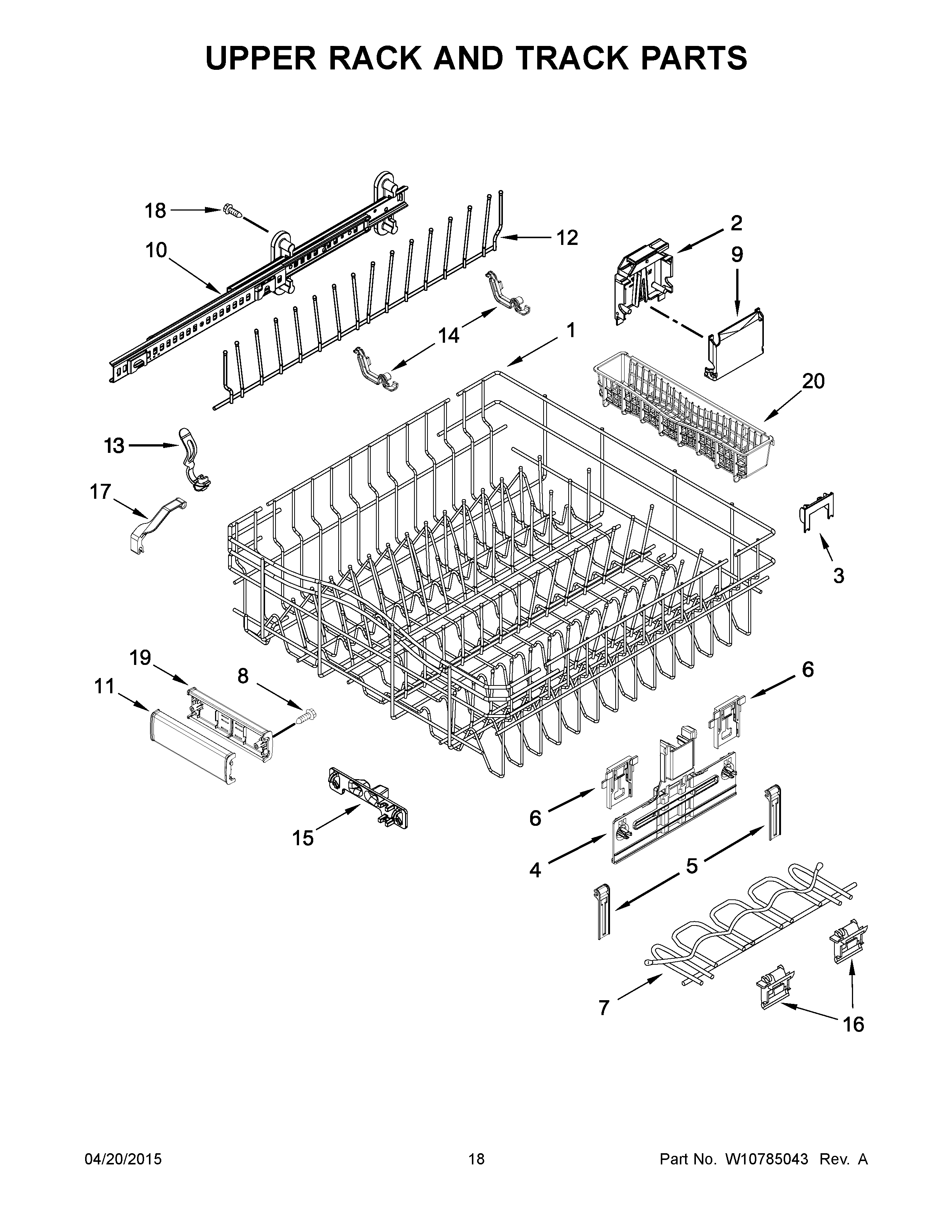

JDB9800CWS1 10 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2A	HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
2	HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
3	CLIP-LOCK ADJUSTER ARM
4	ADJUSTER ASSEMBLY
5	MAY W10195839
6	POSITIONER, ADJUSTER
7	CUPSHELF
8	MAY 9741232
9	MAY W10250162
10	TRACK ASSEMBLY (LEFT HAND)
10A	TRACK ASSEMBLY (RIGHT HAND)
11	HANDLE, DISHRACK FRONT
12	TINE, FOLD DOWN
13	CLIP, NO FLIP
14	MAY W10082853
15	MAY 8539102
16	CLIP, CUPSHELF
17	CLIP, DISPENSER GUARD
18	MAY W10309090
19	HANDLE, DISHRACK REAR
20	BASKET, UTENSIL ROW
