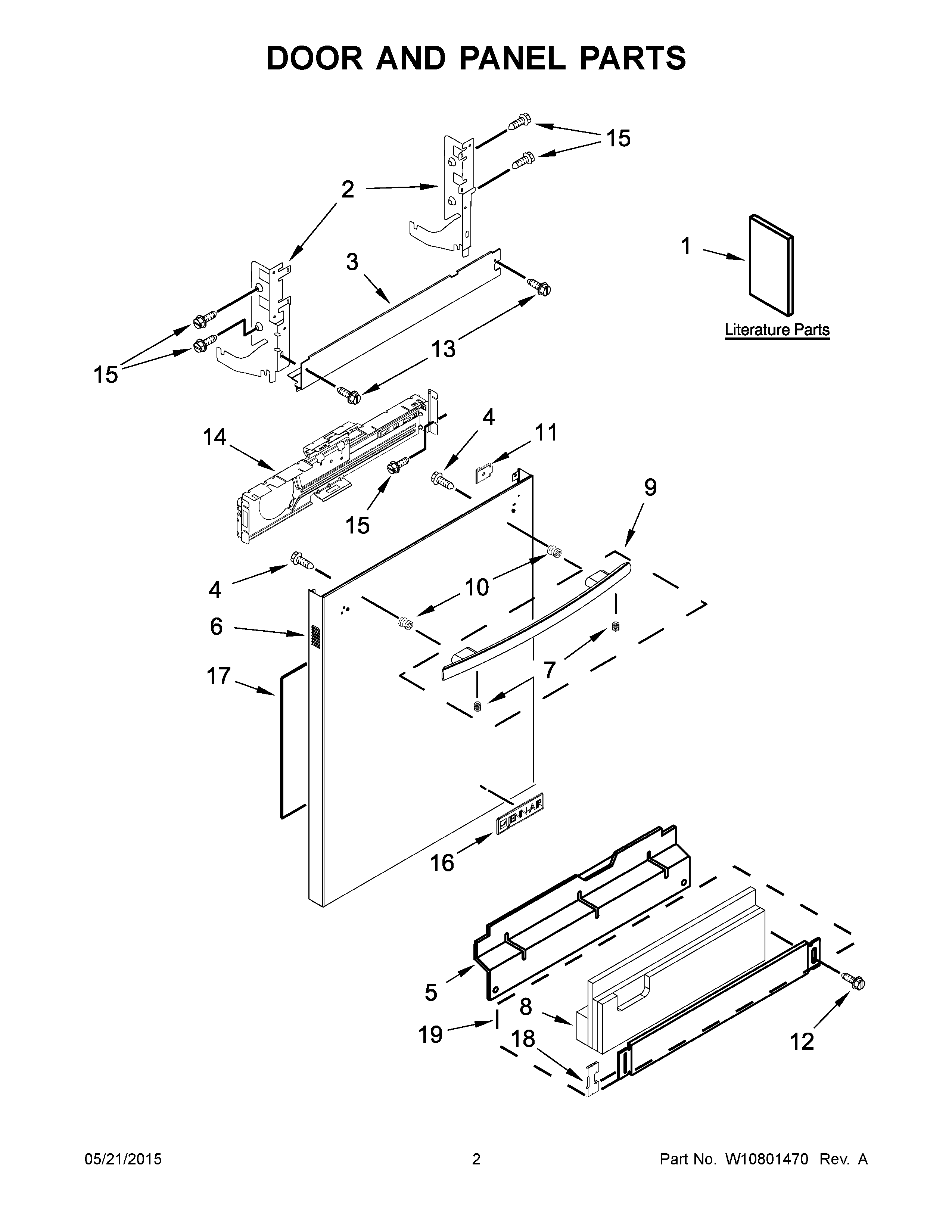

JDB9800CWS2 02 – DOOR AND PANEL PARTS

JDB9800CWS2 02 – DOOR AND PANEL PARTS

Written by

in

JDB9800CWS2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1C	MAY W10750900
1B	MAY W10665639
1	MAY W10741197
1D	MAY W10754472
1A	MAY W10665625
2A	MAY 8534853
2	MAY 8534854
3	MAY W10320859
4	MAY W10316572
5	MAY W10195777
6	MAY W10665631
7	MAY W10276608
8	MAY W10526105
9	MAY W10709335
10	STUD, MOUNTING
11	LIGHT, PIPE
12	SCREW (BLACK)
13	Screw
14	BRACKET, CONTROL
15	SCREW
16	ASSEMBLY, BADGE (STAINLESS)
17	MAY W10620222
18	CLIP, GROUNDING
19	MAY W10586590
