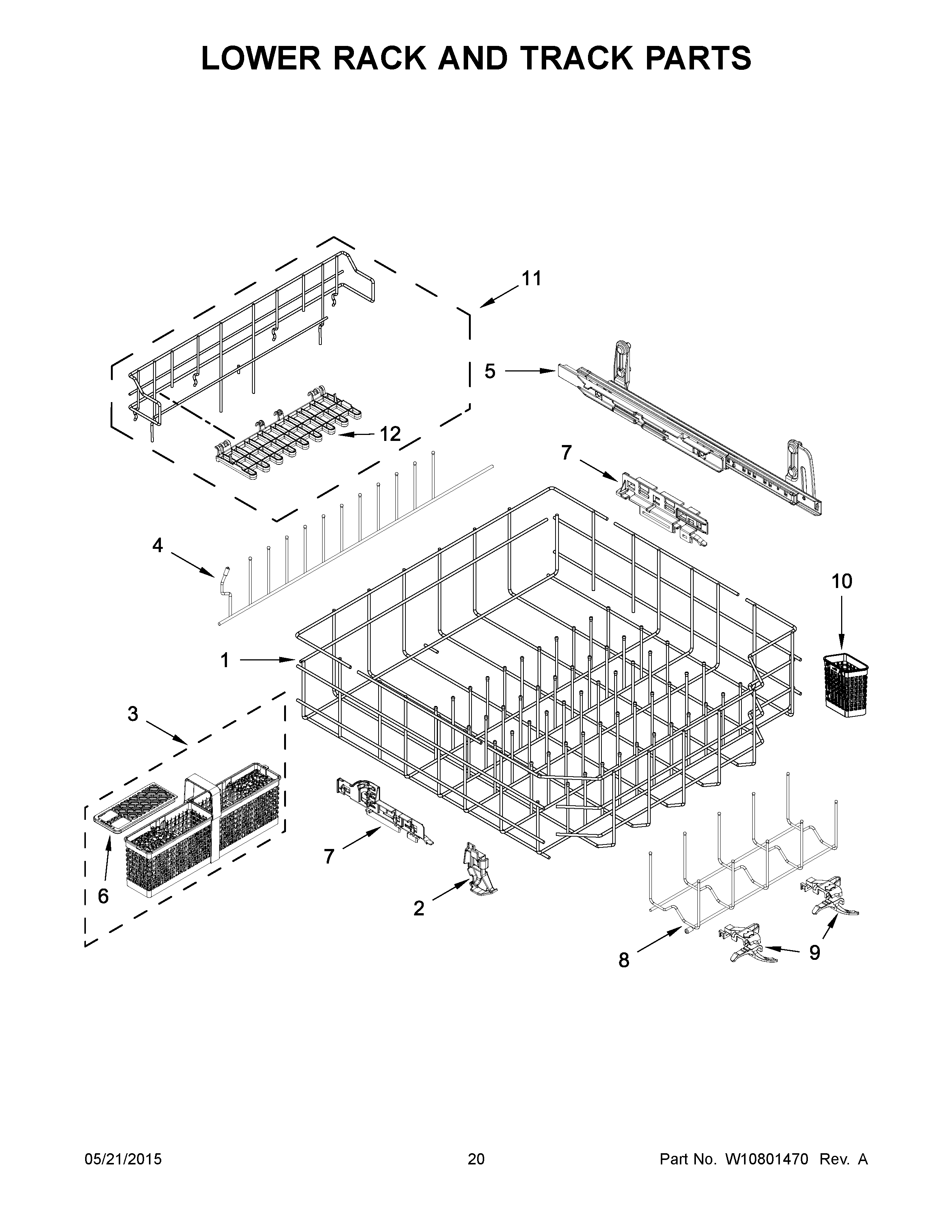

JDB9800CWS2 11 – LOWER RACK AND TRACK PARTS

Written by

Products

Position	Product
1	DISHRACK, LOWER
2A	SUPPORT, FRONT SKI (RIGHT HAND)
2	SUPPORT, FRONT SKI (LEFT HAND)
3	BASKET ASSEMBLY, SILVERWARE
4	TINEROW
5A	MAY W10579132
5	MAY W10579131
6	LID, SILVERWARE BASKET
7	SUPPORT, REAR CARRIAGE (LEFT HAND)
7A	SUPPORT, REAR CARRIAGE (RIGHT HAND)
8	TINE ROW, SLIDING
9	RETAINER, SLIDING TINE ROW
10	BASKET, UTENSIL
11	CUPSHELF ASSEMBLY, SIDE
12	CUPSHELF
