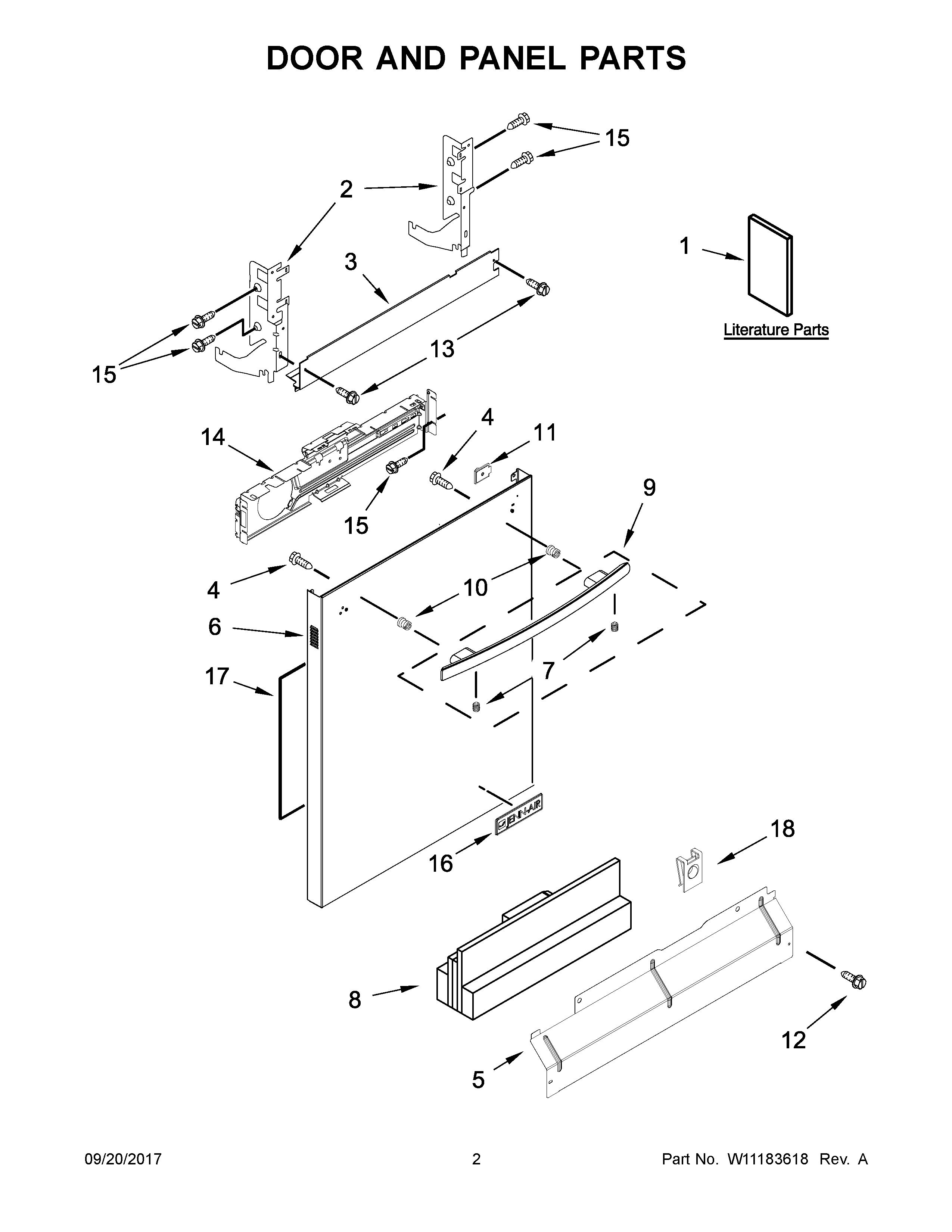

JDB9800CWS3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BMAY W10665639
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
2AMAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4MAY W10316572
5ACCESS PANEL (BLACK)
6MAY W10665631
7MAY W10276608
8INSULATION, FOUR LAYER
9MAY W10786149
10STUD, MOUNTING
11LIGHT, PIPE
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17INSULATION, FRONT PANEL
18U-NUT
