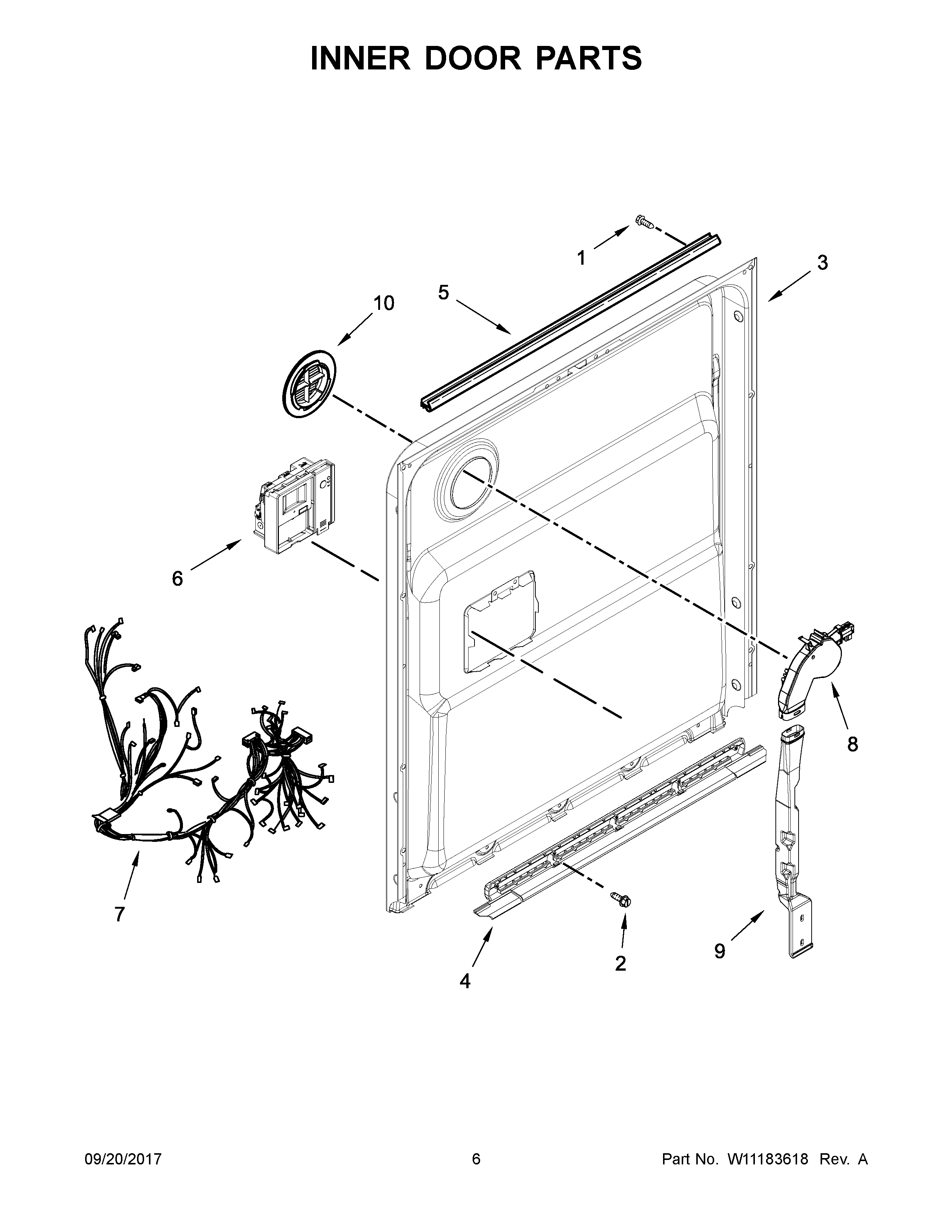

JDB9800CWS3 04 – INNER DOOR PARTS

JDB9800CWS3 04 – INNER DOOR PARTS

Written by

in

JDB9800CWS3 04 – INNER DOOR PARTS

Products

PositionProduct
1SCREW
2MAY 8281217
3MAY W10712593
4SEAL, DOOR BOTTOM
5MAY W10195007
6DISPENSER ASSEMBLY
7WIRING HARNESS
8MAY W10469574
9VENT
10DEFLECTOR, VENT (ALSO ORDER ITEM 6)
