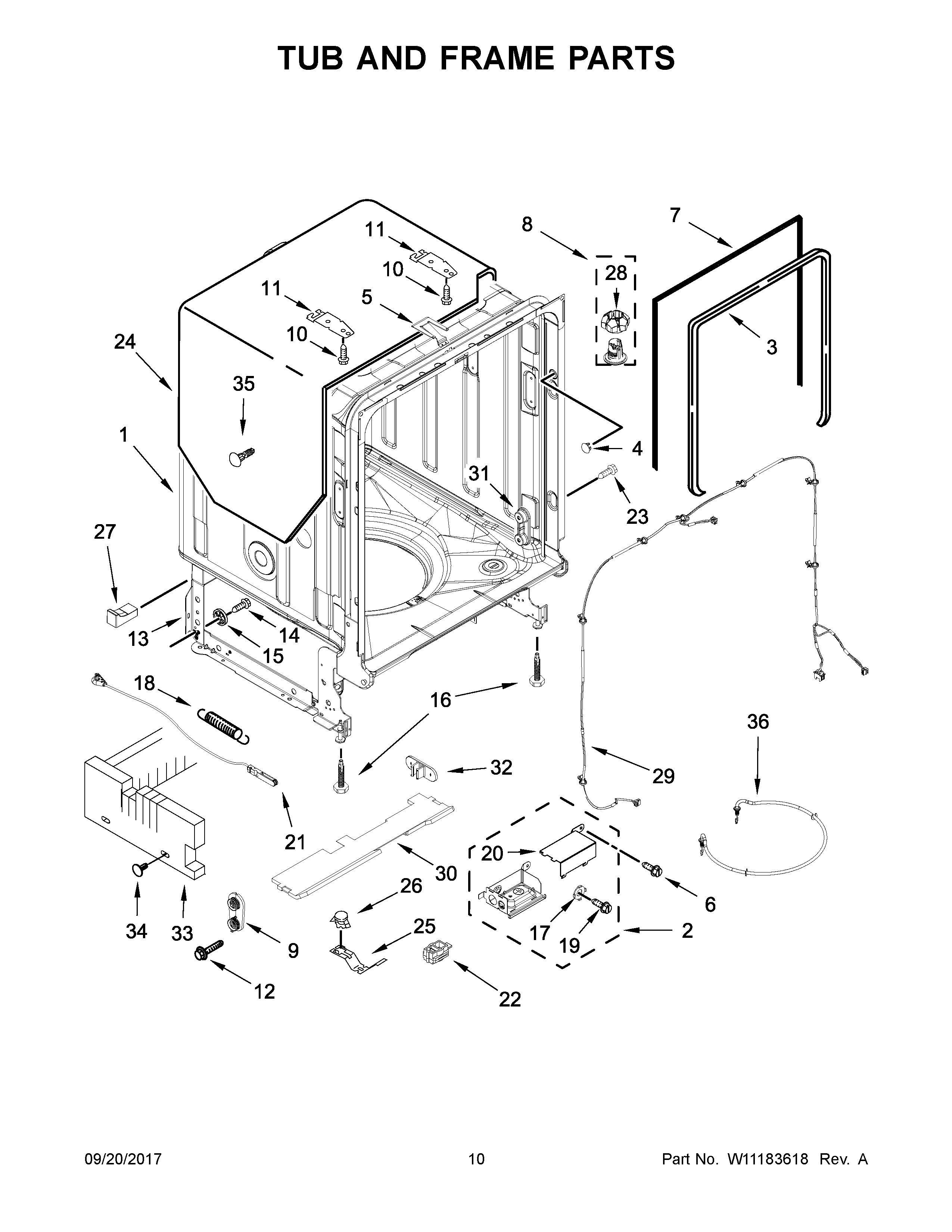

JDB9800CWS3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10713319
2	ASSEMBLY, TERMINAL BOX
3	GASKET, TUB
4	PLUG, TUB
5	STRIKE, LATCH
6	Screw
7	SEAL, CABINET
8	LENS, LIGHT ASSEMBLY
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	SUPPORT ASSEMBLY, REAR
14	MAY W10348411
15	WHEEL LEG
16	LEVELER, LEG
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400014
20	COVER, TERMINAL BOX
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	MAY W10309090
24	SHIELD, TUB SOUND
25	MAY W10300703
26	MAY W10195091
27A	SPACER, TUB/BRACE (RIGHT)
27	SPACER, TUB/BRACE (LEFT)
28	NUT, RETAINER
29	JUMPER, TUB LIGHTS
30	SOUND INSULATION, BOTTOM
31	MOUNT, LOWER TRACK ASSEMBLY
32	HANGER, SOFTENER DRAIN HOSE
33	MAY W10666418
34	RETAINER
35	RETAINER, PUSH
36	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
