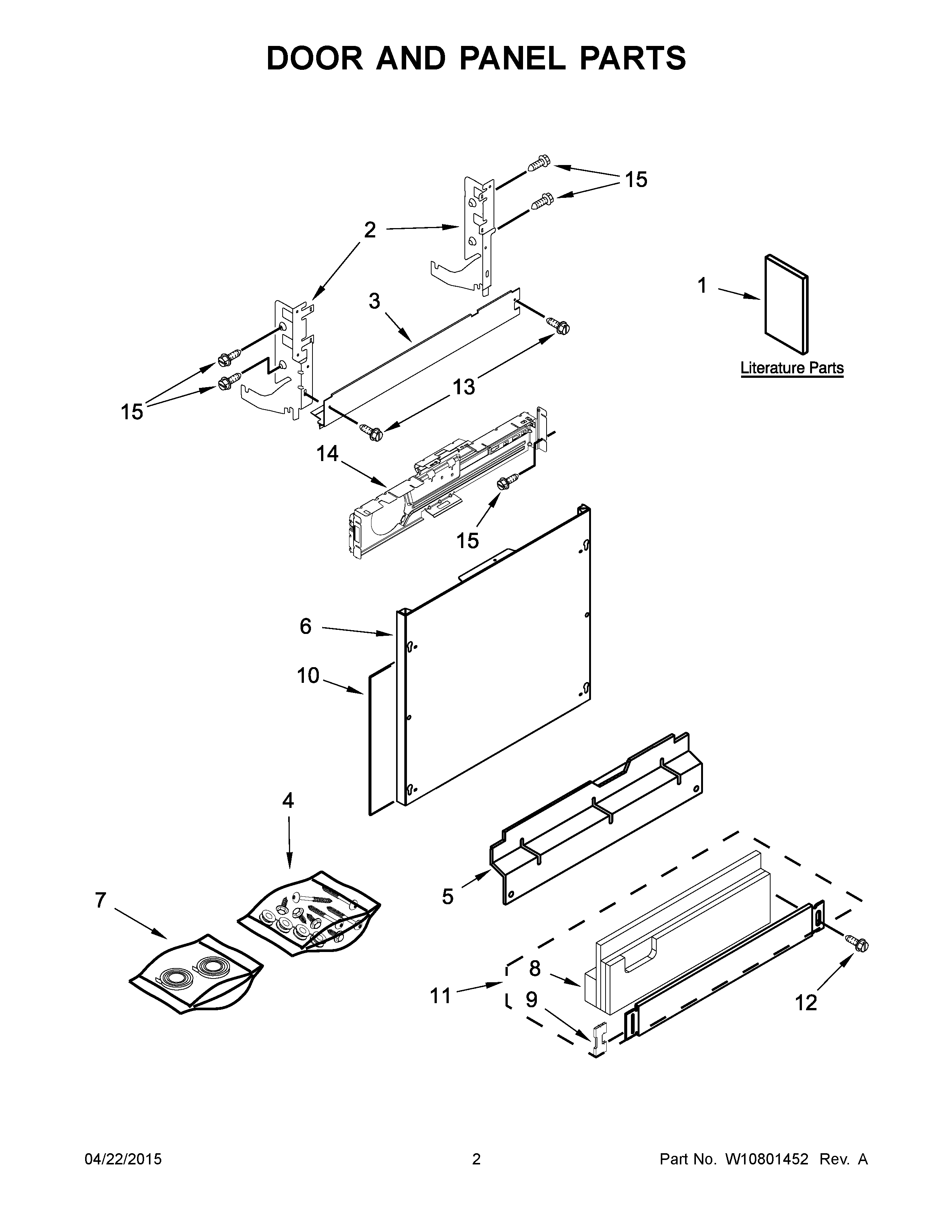

JDB9800CWX2 02 – DOOR AND PANEL PARTS

JDB9800CWX2 02 – DOOR AND PANEL PARTS

Written by

in

JDB9800CWX2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W10665625
1DMAY W10754472
1MAY W10741197
1CMAY W10750900
1ETEMPLATE, 6" CUSTOM PANEL
1BMAY W10665639
2AMAY 8534853
2MAY 8534854
3MAY W10320859
4HARDWARE, CUSTOM PANEL
5MAY W10195777
6PANEL, CUSTOM 6“ (BLACK)
7SEAL, PANEL READY
8MAY W10526105
9CLIP, GROUNDING
10INSULATION, FRONT PANEL
11MAY W10586590
12SCREW (BLACK)
13Screw
14BRACKET, CONTROL
15SCREW
