JDB9800CWX2 08 – UPPER WASH AND RINSE PARTS
Written by
in

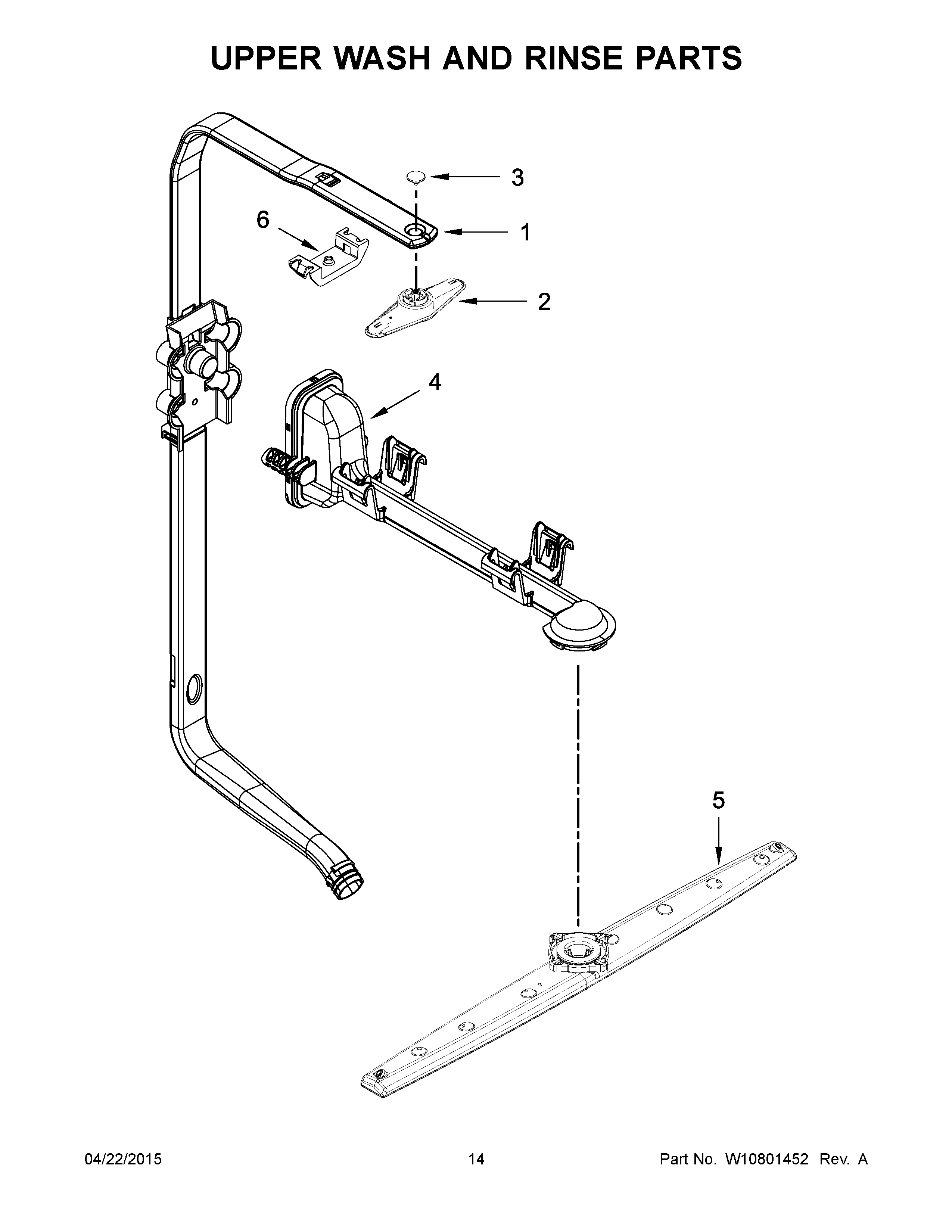

JDB9800CWX2 08 – UPPER WASH AND RINSE PARTS
Products
| Position | Product |
|---|---|
| 1 | FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) |
| 2 | SPRAYARM, THIRD LEVEL |
| 3 | RETAINER |
| 4 | MANIFOLD |
| 5 | SPRAYARM, UPPER |
| 6 | BRACKET, FEED TUBE |
