Aparts

JDC27GL4 2

JDC27GL4 2

Written by

in

JDC27GL4 2

Products

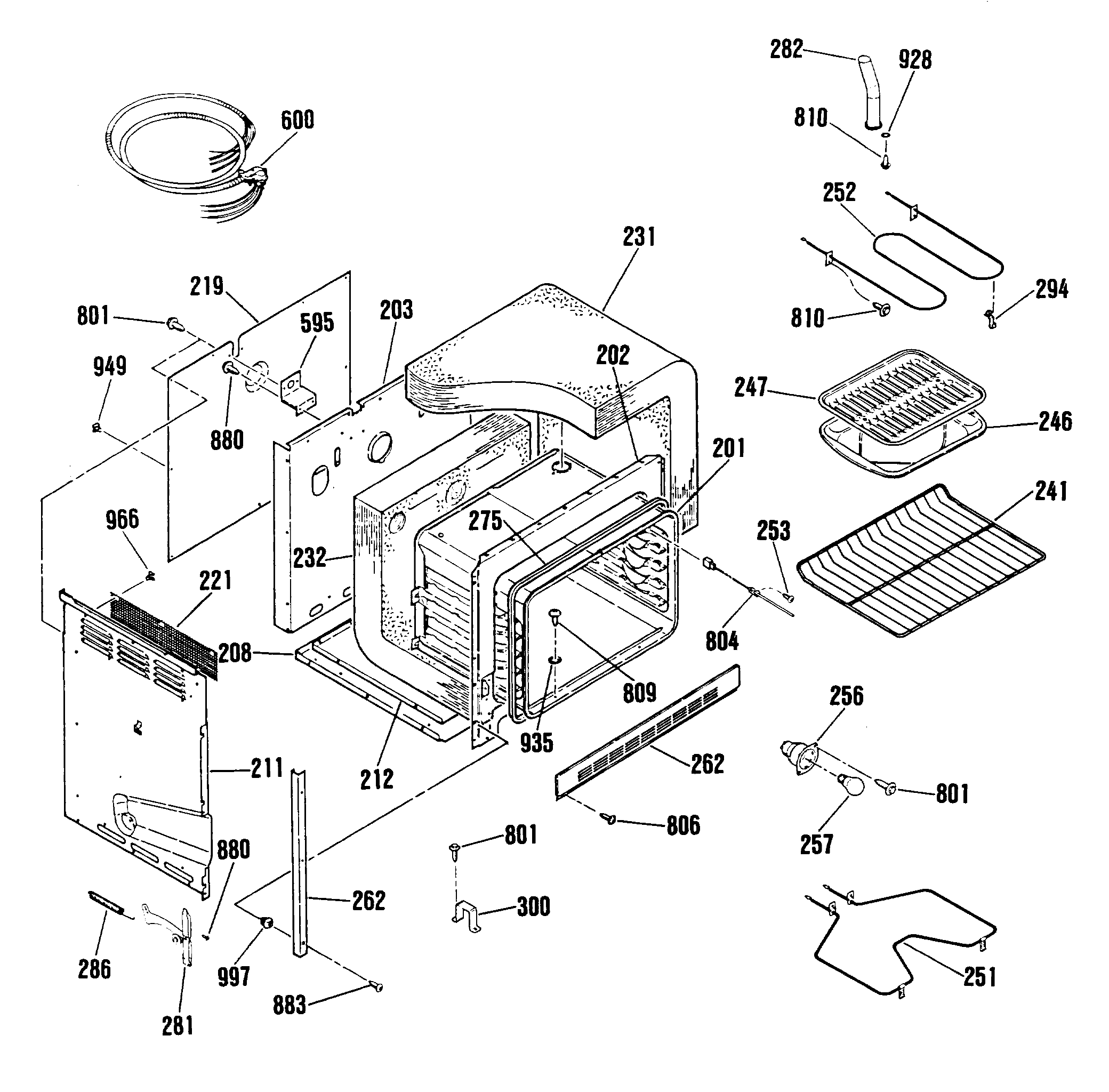

PositionProduct
201UNKNOWN
202GEN WB63X0423
203GEN WB63M0059
211SIDE INS RETAINER RT
211SIDE INS RETAINER LT
212GEN WB02K5122
221GEN WB02X9574
231GEN WB02X9676
232OV BACK INSULATION
241OVEN RACK-LOWER OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44M5 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256GEN WB08M0003
257GEN BUY-LOCAL
262TRIM-SIDE-RIGHT
262BTM TRIM-BLACK
262TRIM-SIDE-LEFT
275UNKNOWN
281GEN WB14X0134
281GEN WB14X0135
282GEN WB38M0006
286OV DOOR SPRING
294WB2X9719 GE Oven Support Bracket Clip
300GEN WB02M0086
595GEN WB02X9577
600HARNESS-CONDUIT WIRE
804WB1X681 GE Oven Screw
806SCREW-BRT. NI.
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
880WB1K5191 GE Oven Zinc FL Screw
883WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
928GEN WB01X1310
935GEN WB01X1201
966WB2X9573 GE Oven Clip
