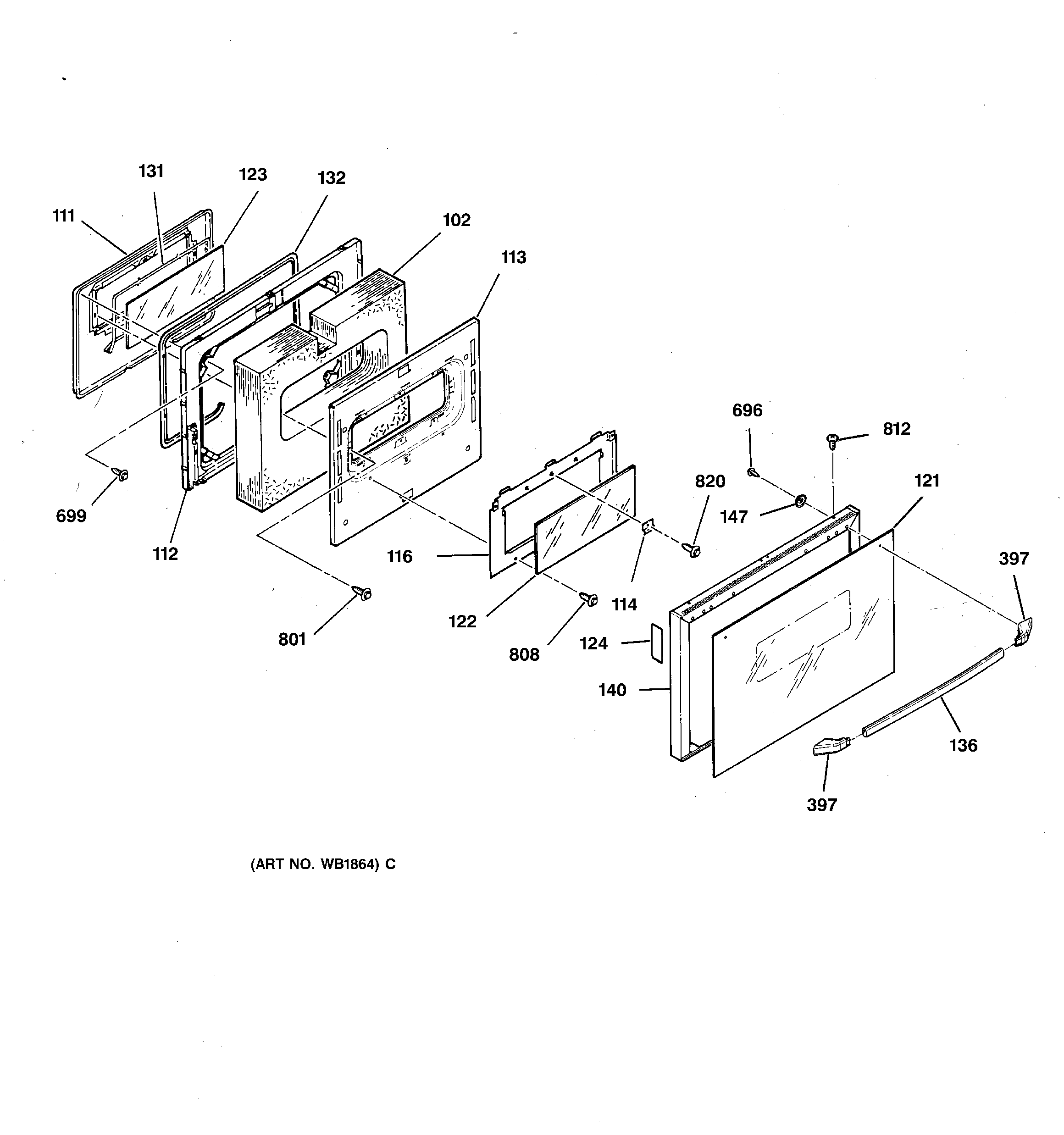

JDP36BW3WH DOOR PARTS

JDP36BW3WH DOOR PARTS

Written by

in

JDP36BW3WH DOOR PARTS

Products

PositionProduct
102OVEN DOOR INSULATION
112GEN WB55T10018
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
121GLASS OVN DR OUTER
122GEN WB57K5102
123CENTER GLASS
132WB02T10013 GE Oven Gasket
136WB15T10030 GE Oven Handle Assembly
140GEN WB55K5054
147GEN WB02K5312
397WB7X7183 GE Oven Black Handle Endcap
699WB1M1 GE Oven Screw
812SCREW-BLACK
812WB1K5191 GE Oven Zinc FL Screw
820WB1X1424D GE Oven Screw Package
