JDP36GP3AD 0

Written by

JDP36GP3AD 0

Products

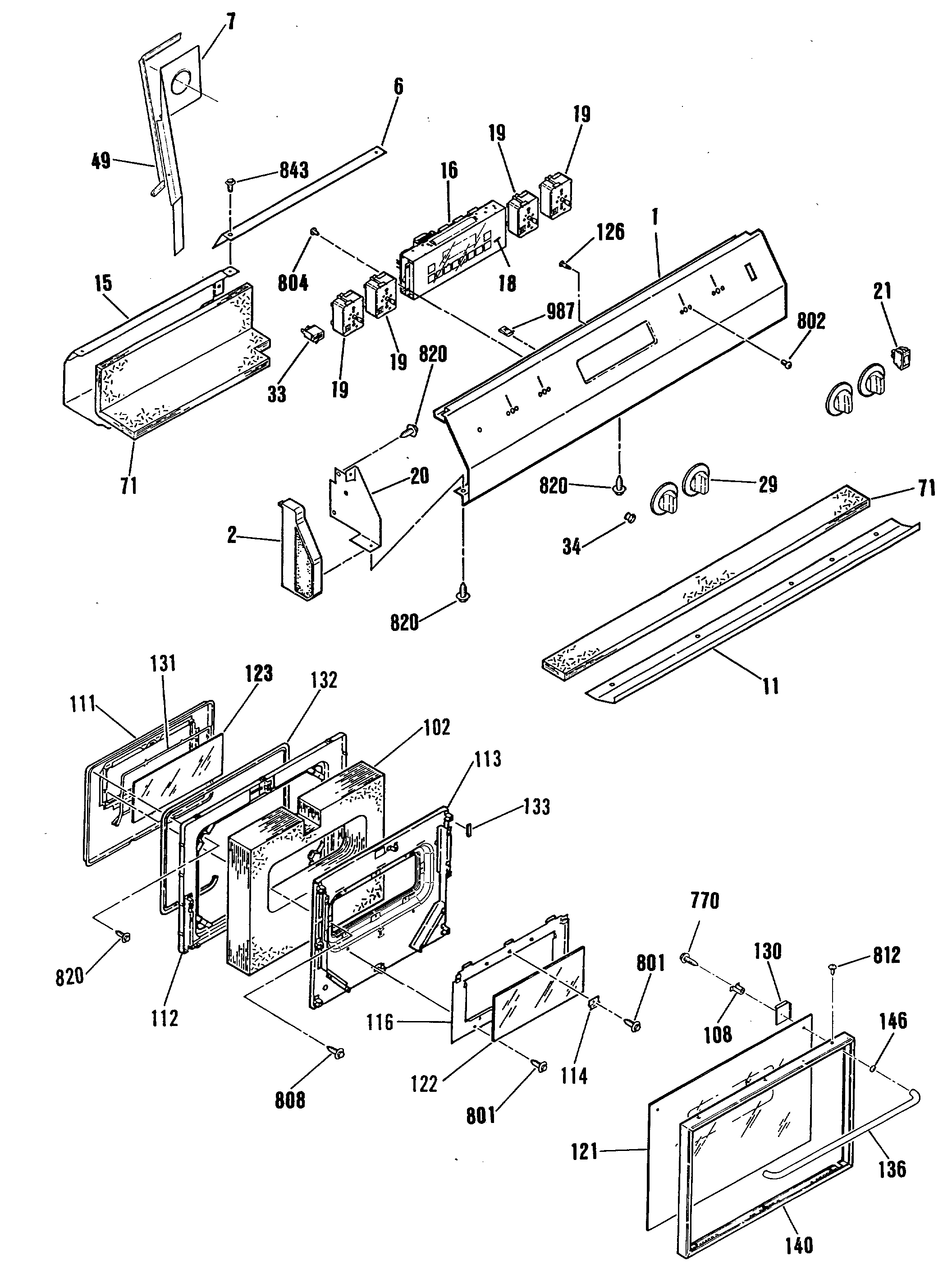

Position	Product
1	GEN WB36K5150
2	GEN WB07X1675
2	GEN WB07X1676
6	COVER CONTROL FILLER LT
7	GEN WB26K5038
11	BURNER BOX BOTTOM EXT.
15	GEN WB02X9563
16	GEN WB27K5073
18	GEN WB27K5058
19	WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
19	WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
20	GEN WB37K5018
20	GEN WB02K5239
20	GEN WB37K5019
21	GEN WB24X0415
29	GEN WB03M0026
33	WB25T10040 GE Oven Light Indicator
34	LENS
49	GEN WB32K5018
71	GEN WB06X0006
71	BURN BOX EXT INSULATION
102	OVEN DOOR INSULATION
108	GEN WB02M0046
111	GEN WB55M0010
112	UNKNOWN
113	UNKNOWN
114	GEN WB02M0001
116	GEN WB02X9178
121	GEN WB57K5183
122	GEN WB57K5141
123	CENTER GLASS
126	PLUG BUTTON CAP TUBE
130	GEN WB02K5150
131	WB2X9168 GE Oven Seal
132	WB2K5319 GE Oven Door Gasket
133	FELT WASHER
133	FELT PAD
136	GEN WB15K5024
140	UNKNOWN
146	GEN WB02K5151
770	WB1K5072 GE Oven Screw
801	WB1M1 GE Oven Screw
802	GEN WB01K5123
804	WB1X681 GE Oven Screw
808	WB1X1116 GE Oven Screw
812	WB1K5191 GE Oven Zinc FL Screw
843	WB1X1424D GE Oven Screw Package
987	GEN WB01X1311
999	MINI MANUAL/WIRE DIAGRAM
999	GEN WB18M0058
999	GEN 31-10069
999	GEN 49-8291
999	HARNESS WIRE BLOWER
999	GEN WB18K5369
