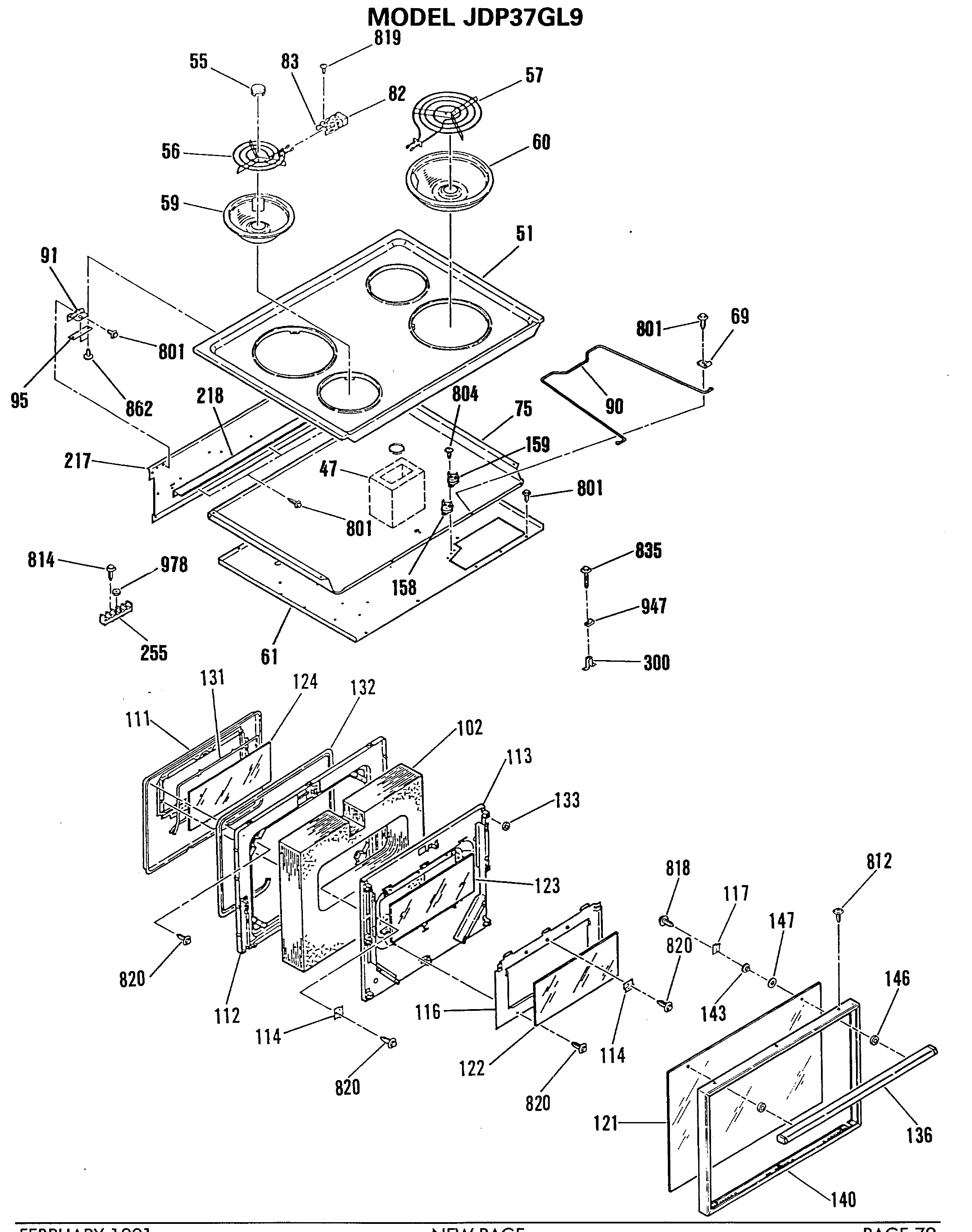

JDP37GL9 4

Products

Position	Product
47	GEN WB02X9895
51	COOKTOP
55	GEN WB32X0105
56	WB30X256 GE Oven Surface Unit 6 Inch
57	WB30X255 GE Oven Surface Unit 8 Inch
59	WB31M1 GE Oven 6" Universal Chrome Bowl
60	WB32X106 GE Oven 8" Chrome Drip Bowl
61	GEN WB64K5030
69	WB2M87 GE Oven Support Rod Clamp
75	BURNER BOX TOP
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	WB17X211 GE Oven Terminal Clip Black
90	UNKNOWN
91	GEN WB14X0136
95	HINGE MTG BRACKET
95	GEN WB02K5089
102	OV DOOR INSULATION
111	GEN WB55M0010
112	UNKNOWN
113	INSULATION RETAINER
114	GEN WB02M0001
116	GEN WB02X9178
117	OV DR GLASS RETAINER
121	WB56X1902 GE Oven Outer Glass
122	OV DR INTERMED GLASS-UP
123	CENTER GLASS
124	OV DR INNER GLASS
131	WB2X9168 GE Oven Seal
132	WB2X9373 GE Oven Gasket
136	OV DOOR HANDLE
140	UNKNOWN
143	FIBER WASHER
146	DOOR HANDLE SPACER-BLACK
147	UNKNOWN
158	UNKNOWN
159	UNKNOWN
217	WIRE COVER UPPER
218	GEN WB02X9570
300	UNKNOWN
300	GEN WB02M0086
801	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
814	WB1X1258 GE Oven Screw
818	GEN WB01X1250
819	WB1X1118 GE Oven Screw 6-32T
820	WB1X1424D GE Oven Screw Package
862	GEN WB01X1178
947	CABLE CLIP
978	WB1X1259 GE Hex Nut
