JDP39BK3BB DOOR

JDP39BK3BB DOOR

Written by

in

JDP39BK3BB DOOR

Products

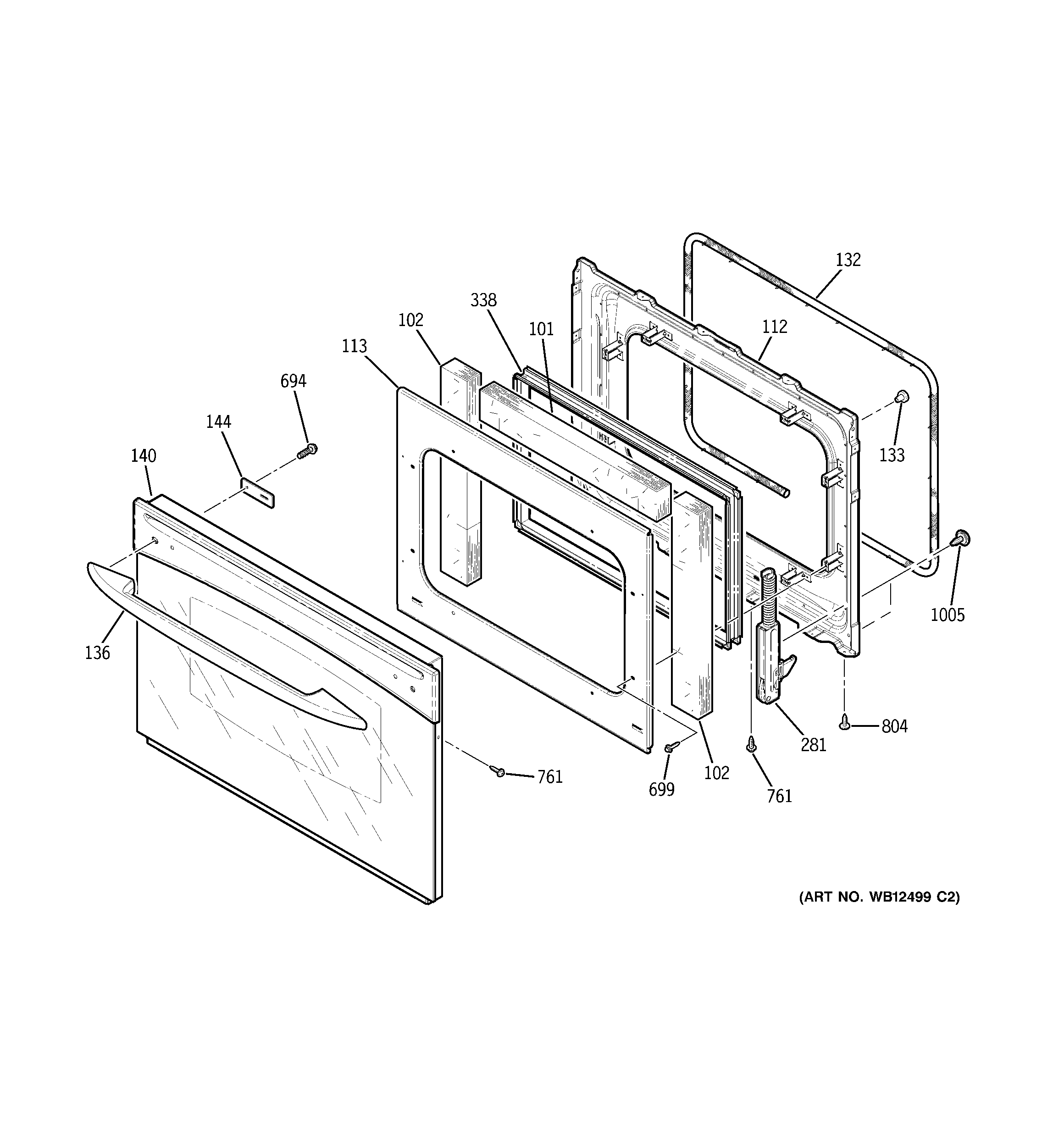

PositionProduct
101WB35X30052 GE Oven Door Insulation Assembly
102WB35K10025 GE Oven Side Door Insulation
112WB55T10148 GE Oven Door Liner Assembly
113WB02T10371 GE Oven Retainer Insulation
132WB04T10050 GE Oven Door Gasket
133WB01T10022 GE Oven Door Bumper
136GEN WB15T10108
140GEN WB56T10166
144GEN WB02T10147
281GEN WB10T10082
281GEN WB10T10081
338WB56T10105 GE Oven Inner Window Assembly
694WB01T10066 GE Oven Screw 10-16 XC02
699WB1M1 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
804WB1X681 GE Oven Screw
1005WB01T10008 GE Oven Screw 10-32
