JDP39DN4WW CONTROL PANEL & COOKTOP

JDP39DN4WW CONTROL PANEL & COOKTOP

Written by

in

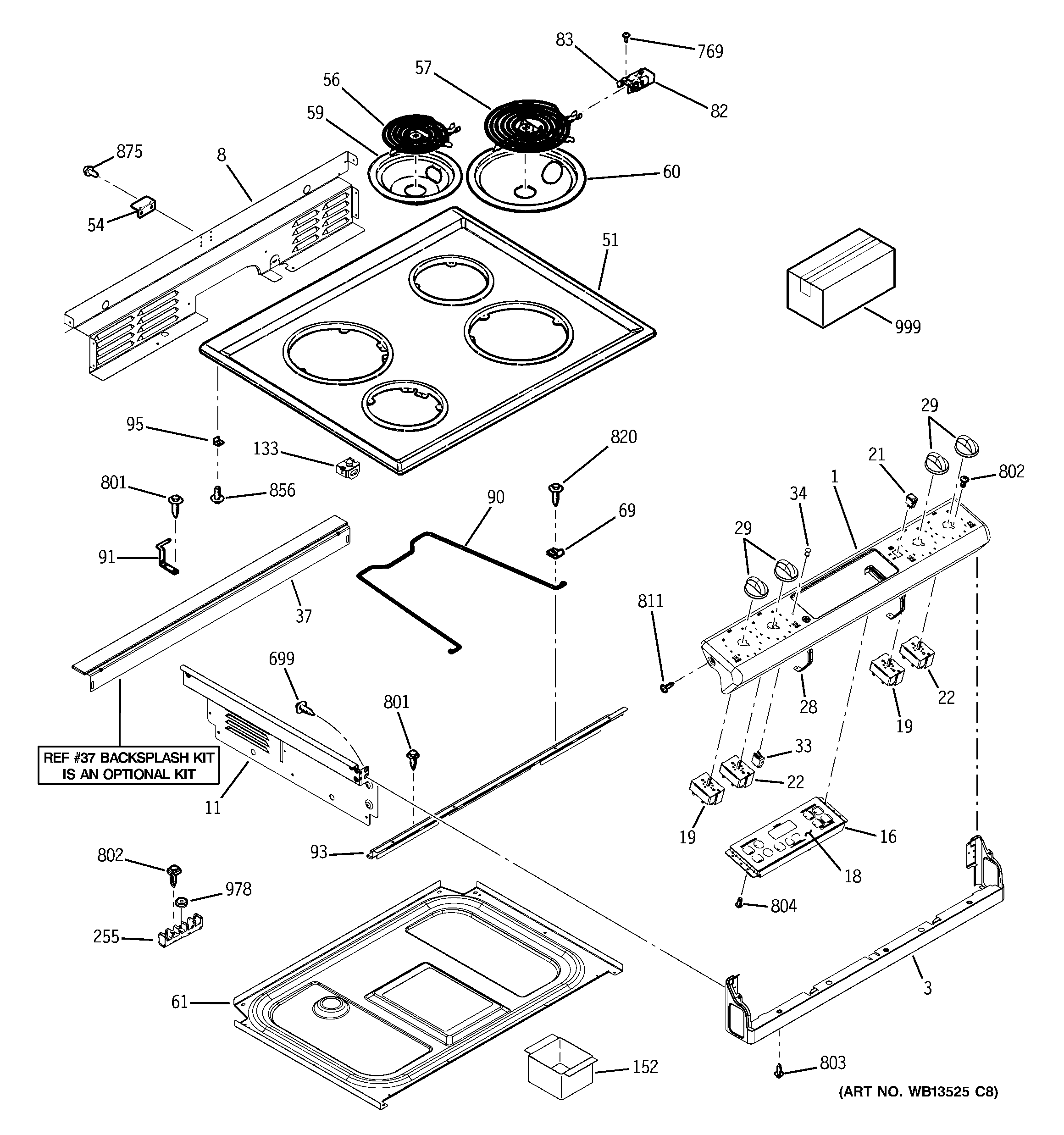

JDP39DN4WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T11193
1GEN WB36T11196
1GEN WB36T11195
3WB36T10795 GE Oven Bottom Control Panel
3GEN WB36T10793
3WB36T10792 GE Control Panel Bottom
8GEN WB07K10137
11WB07T10473 GE Oven Right Side Extension
11WB07T10474 GE Oven Extension Side Left
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11095
18GEN WB27T11080
18WB27T11096 GE Oven Control Faceplate
19WB24T10025 SWITCH INFIN(2500W)
21WB24T10042 GE Oven Rocker Switch
21WB24T10043 GE Oven Rocker Switch
21WB24T10053 GE Oven Rocker Switch
22WB24T10029 GE Oven Infinite Burner Switch
28WB02T10267 GE Oven Control Bracket
29WB03T10285 GE Oven Infinite Control Knob
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33WB25K10010 GE Oven Light Indicator Pilot
34LENS
37KIT BACKSPLASH (BK)
37OPTIONAL BACKSPLASH KIT
37OPTIONAL BACKSPLASH KIT
51MAINTOP BQ
51WB62T10427 GE Oven Main Top
51WB62T10425 GE Oven Maintop
54WB02X10739 GE Oven Anti-Tip Bracket
56WB30X20478 GE Oven Range Cooktop 6" Surface Unit Burner Element
57WB30X20481 GE Oven 8" Surface Element
59WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61WB64T10053 GE Oven Bottom Burner Box
69WB2M87 GE Oven Support Rod Clamp
82WB17T10006 GE Oven Burner Receptacle Block
83RECEPTACLE W/CLIP
90WB02T10268 GE Main Top Support Rod
91WB14T10028 GE Maintop Hinge
91WB14T10027 GE Maintenance Top Right
93WB34T10105 GE Oven Wire Cover
95WB10X255 GE Oven Hinge Bracket
133WB01T10022 GE Oven Door Bumper
152WB14T10066 GE Latch Box
255WB17K10001 GE Oven Block Terminal
699WB1M1 GE Oven Screw
769WB1K5167 GE Screw 8-18 X 3/8"
802GEN WB01K5123
803WB01T10095 GE Oven Screw 10-32 HWH I 13/16
804WB1X681 GE Oven Screw
811WB01T10094 GE Oven Screw 8-32 PN 1/2
820WB1X1424D GE Oven Screw Package
856WB1X1293 GE Oven Screw
875WH2X930 GE Screw
978WB1X1259 GE Hex Nut
999GEN 49-80591
999GEN 31-10651
999GEN 49-80632
999GEN 31-14262
