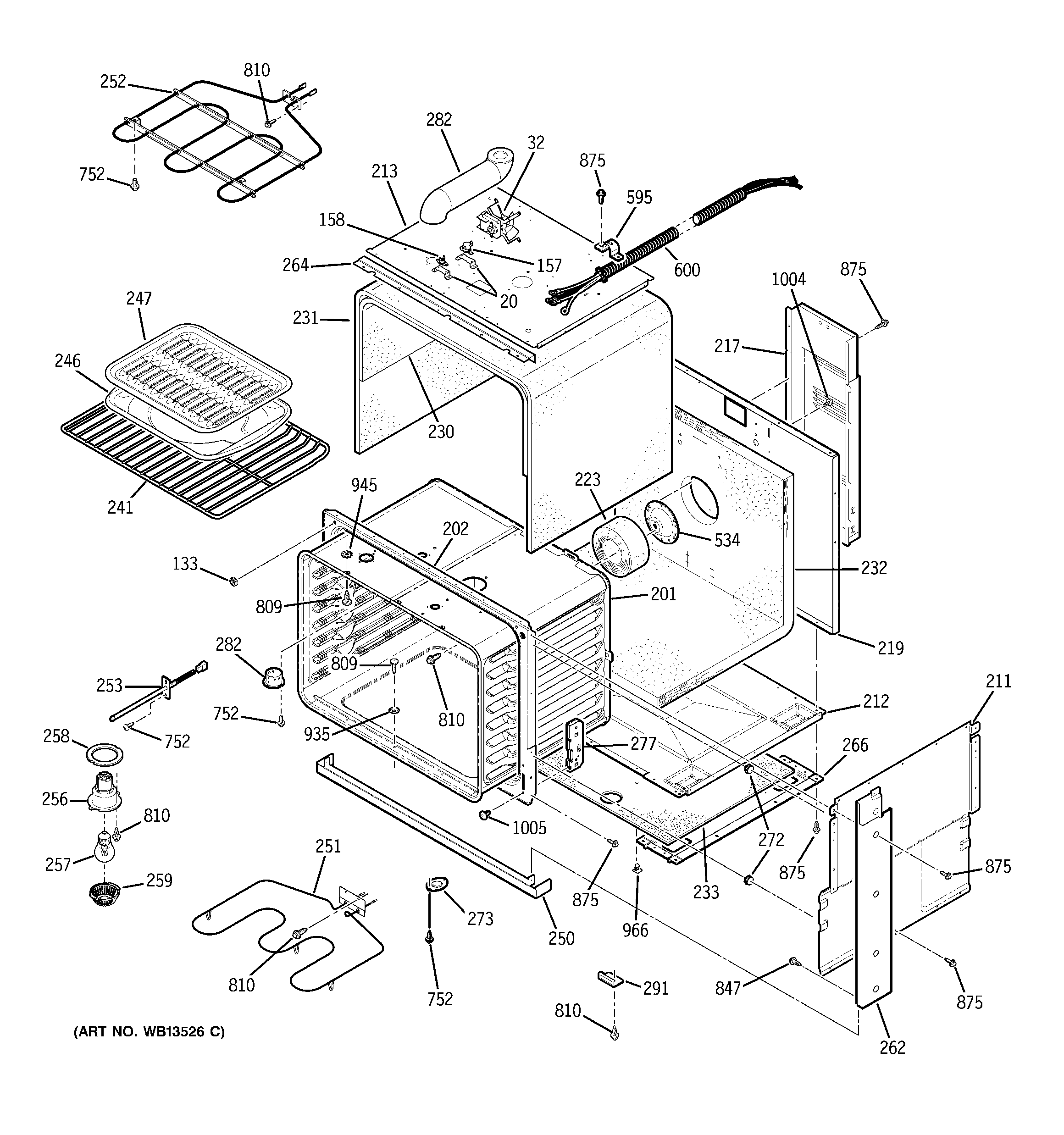

JDP39WK1WW BODY PARTS

JDP39WK1WW BODY PARTS

Written by

in

JDP39WK1WW BODY PARTS

Products

PositionProduct
20GEN WB02K5238
20WB02T10270 GE Oven Switch Bracket
32WB26T10032 GE Oven Fan Assembly
133WB01T10052 GE Oven Foam Tape
133WB03T10156 GE Oven Door Bumper
133GEN WB01T10096
133WB01T10022 GE Oven Door Bumper
157WB24T10117 GE Oven Limit Switch
158WB24T10118 GE Oven Limit Switch Bimetal
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
211GEN WB02K5306
212GEN WB02T10143
213GEN WB02T10269
217GEN WB34K10046
219GEN WB56T10136
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
233GEN WB35K10024
241WB48T10095 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
250GEN WB07K10143
251WB44T10018 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
258GEN WB04T10021
259WB25T10002 GE Oven Bulb Lens
262GEN WB07T10411
262GEN WB07T10412
264GEN WB07T10475
266WB02K10048 GE Base Rail
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10053
282WB38T10029 GE Oven Vent Tube Assembly
282WB38T10027 GE Oven Tube Vent Assembly
291GEN WB02X9152
291GEN WB02T10146
534WB26T10015 GE Oven Cavity Support
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K10012
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
847WB1K5167 GE Screw 8-18 X 3/8"
847WB1X1118 GE Oven Screw 6-32T
847GEN WB01K5161
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
