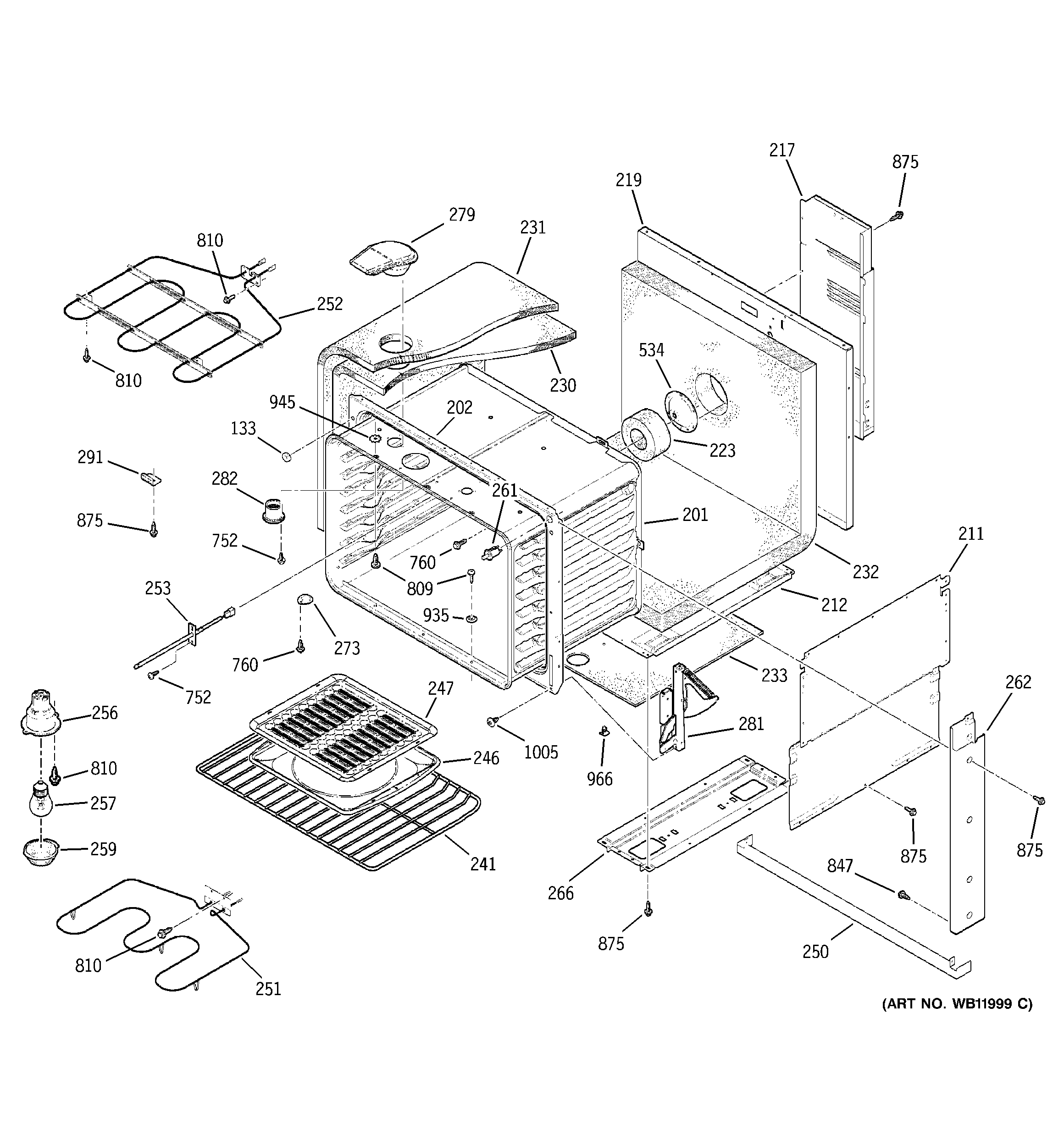

JDP46CD2CC BODY PARTS

JDP46CD2CC BODY PARTS

Written by

in

JDP46CD2CC BODY PARTS

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
201GEN WB63T10068
202GEN WB63T10064
211GEN WB02K5306
212INSULATION RETAINER-BTM
217GEN WB34K10046
219GEN WB56X10189
219GEN WB34T10035
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
233GEN WB35K10024
241WB48T10095 GE Oven Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
250TRIM LOWER
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K10153
262GEN WB07K10152
266WB02K10048 GE Base Rail
273GEN WB02K5365
279GEN WB38T10014
281GEN WB14T10010
281GEN WB14T10009
282GEN WB28K5010
291GEN WB02X9152
534GEN WB26T10003
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
847GEN WB01T10039
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
1005WB01T10008 GE Oven Screw 10-32
