JDP47CF1CC BODY PARTS

JDP47CF1CC BODY PARTS

Written by

in

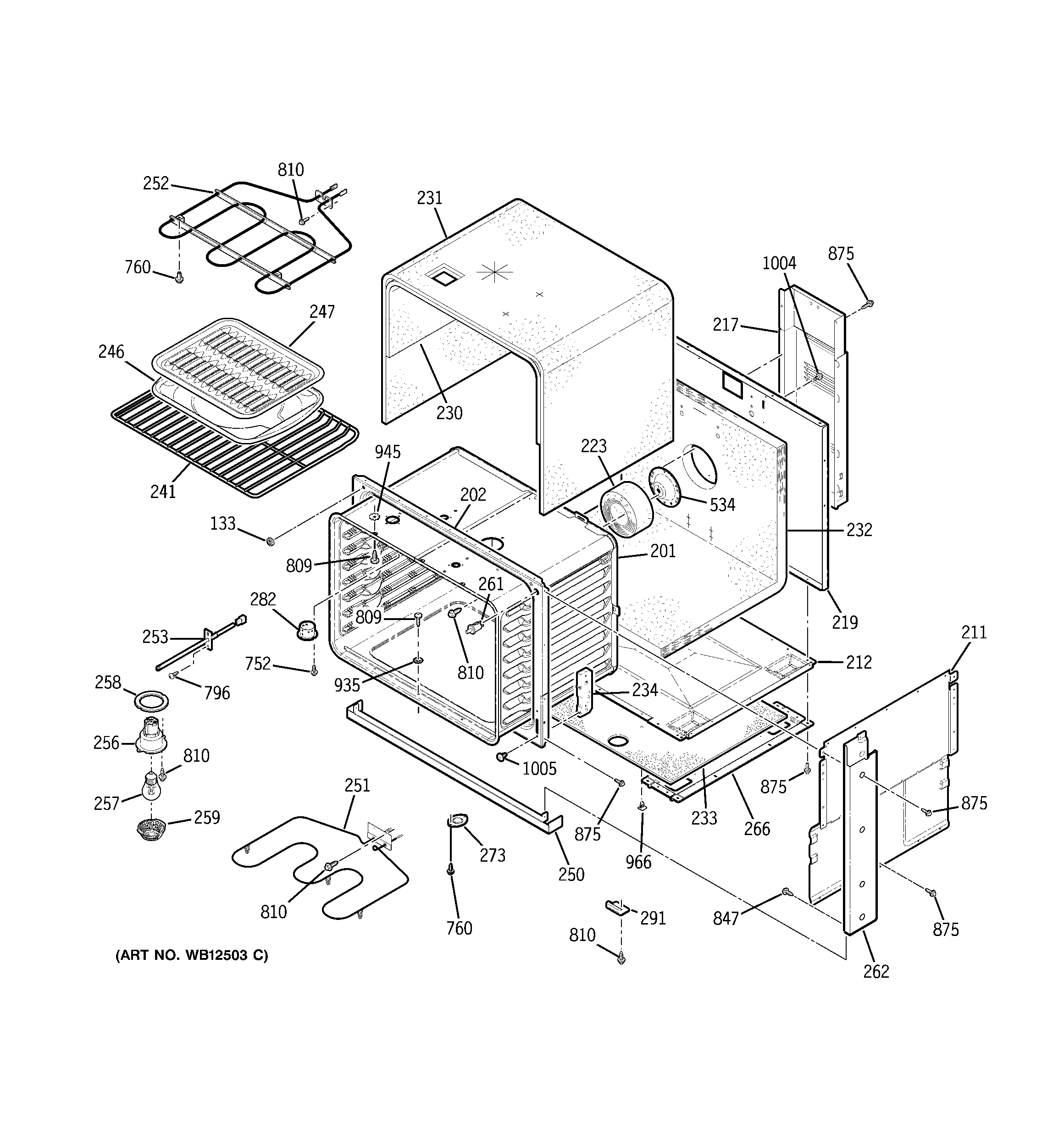

JDP47CF1CC BODY PARTS

Products

PositionProduct
133WB03T10156 GE Oven Door Bumper
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
211GEN WB02K5306
212GEN WB02T10143
217GEN WB34K10046
219WB02X20948 GE Oven Back Insulation Retainer
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
233GEN WB35K10024
234GEN WB10T10025
241WB48T10095 GE Oven Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
250TRIM LOWER
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
258GEN WB04T10021
259WB25T10002 GE Oven Bulb Lens
261GEN WB24T10065
262GEN WB07K10152
262GEN WB07K10153
266WB02K10048 GE Base Rail
282WB28T10075 GE Oven Vent Inlet Duct
282WB38X33650 GE Vent Tube
291GEN WB02T10146
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
847WB1X1118 GE Oven Screw 6-32T
847GEN WB01T10039
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
