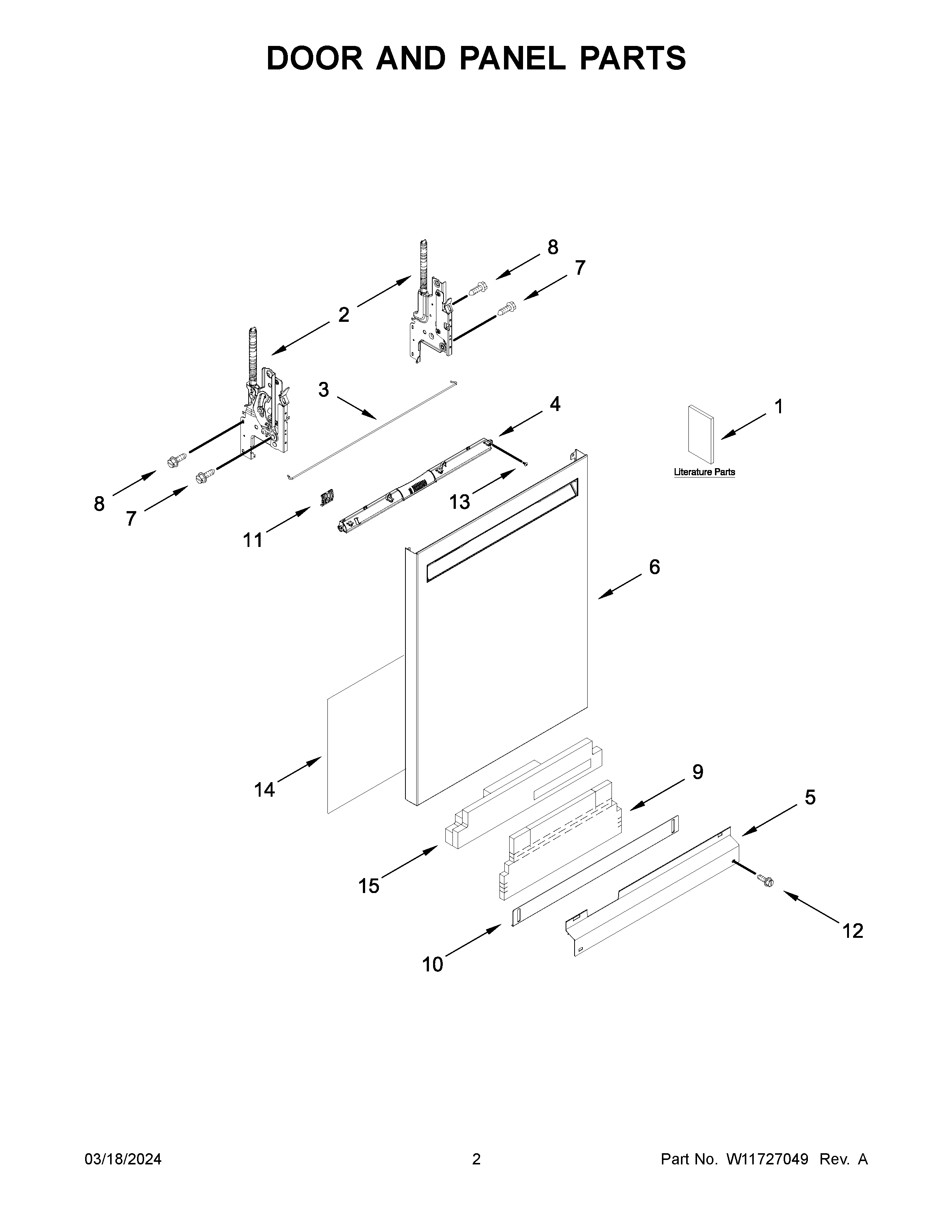

JDPSG244PS1 02 – DOOR AND PANEL PARTS

JDPSG244PS1 02 – DOOR AND PANEL PARTS

Written by

in

JDPSG244PS1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BENERGY GUIDE
1OWNERS MANUAL
1ATECH SHEET
2AW11712996 Whirlpool Door Hinge
2HINGE-DOOR
3W11377160 Whirlpool Brace Assembly
4W11177623 Whirlpool Cover
5W11545318 Whirlpool Toekick Plate
6W11505444 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13SCREW
14W10919861 Whirlpool Insulation Pad
15W11573700 Whirlpool Shield
