JDPSS244LL0 02 – DOOR AND PANEL PARTS
Written by
in

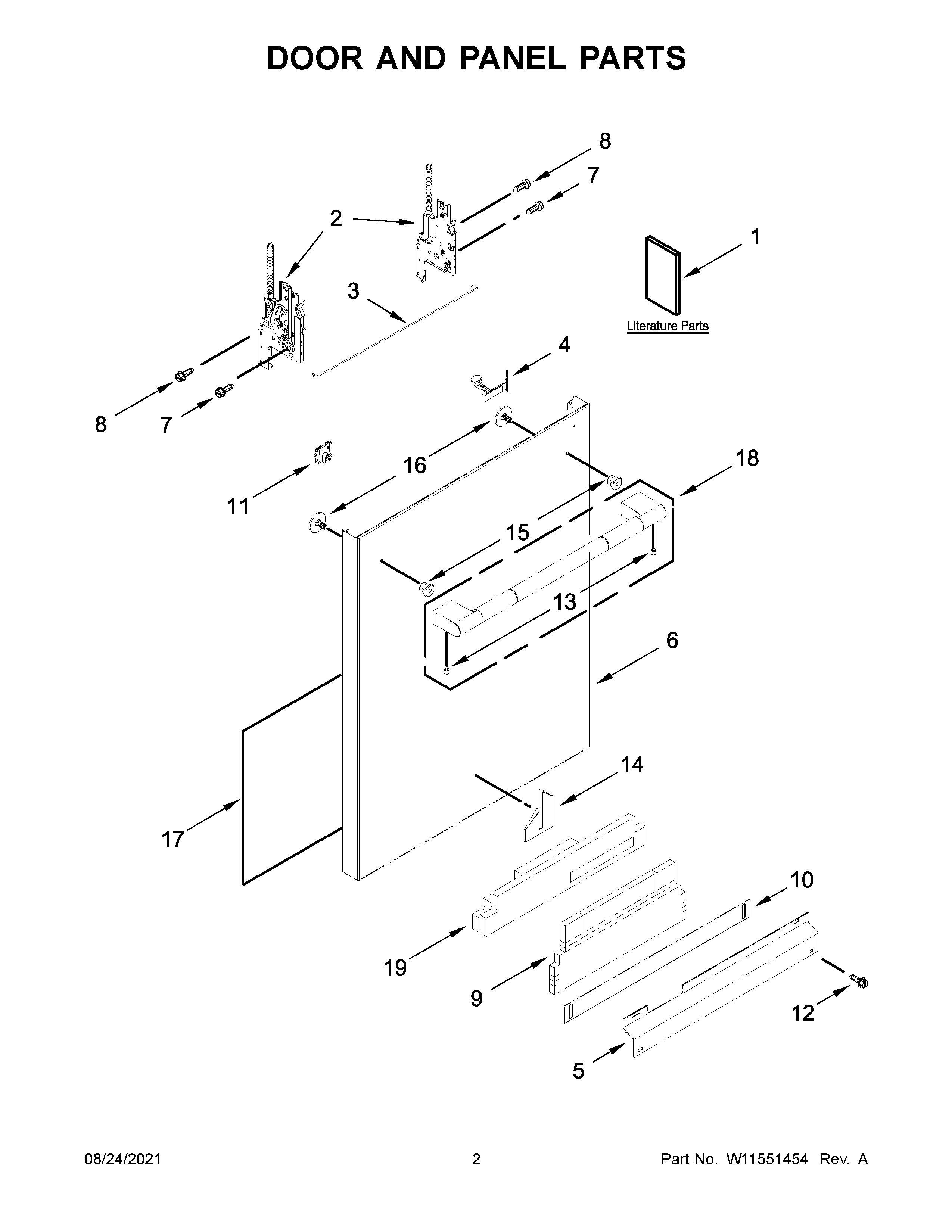

JDPSS244LL0 02 – DOOR AND PANEL PARTS
Products
Position
Product
1
OWNERS MANUAL
1B
ENERGY GUIDE
1A
TECH SHEET
2A
W11712996 Whirlpool Door Hinge
2
HINGE-DOOR
3
W11377160 Whirlpool Brace Assembly
4
W11102920 Whirlpool Indicator Light
5
W11545318 Whirlpool Toekick Plate
6
W11505430 Whirlpool Panel
7
W11676450 Whirlpool Screw
8
WPW10309090 Whirlpool Dishwasher Screw
9
W11573704 Whirlpool Dishwasher Shield
10
W11579528 Whirlpool Toe Panel
11
W10692757 Whirlpool Dishwasher Nut Assembly
12
W11551775 Whirlpool Screw
13
W10917698 Whirlpool Dishwasher Screw
14
W11320231 Whirlpool Dishwasher Nameplate
15
W11157086 Whirlpool Dishwasher Door Handle Stud
16
W10826179 Whirlpool Dishwasher Screw
17
W10919861 Whirlpool Insulation Pad
18
W11320226 Whirlpool Dishwasher Handle
19
W11573700 Whirlpool Shield
←
