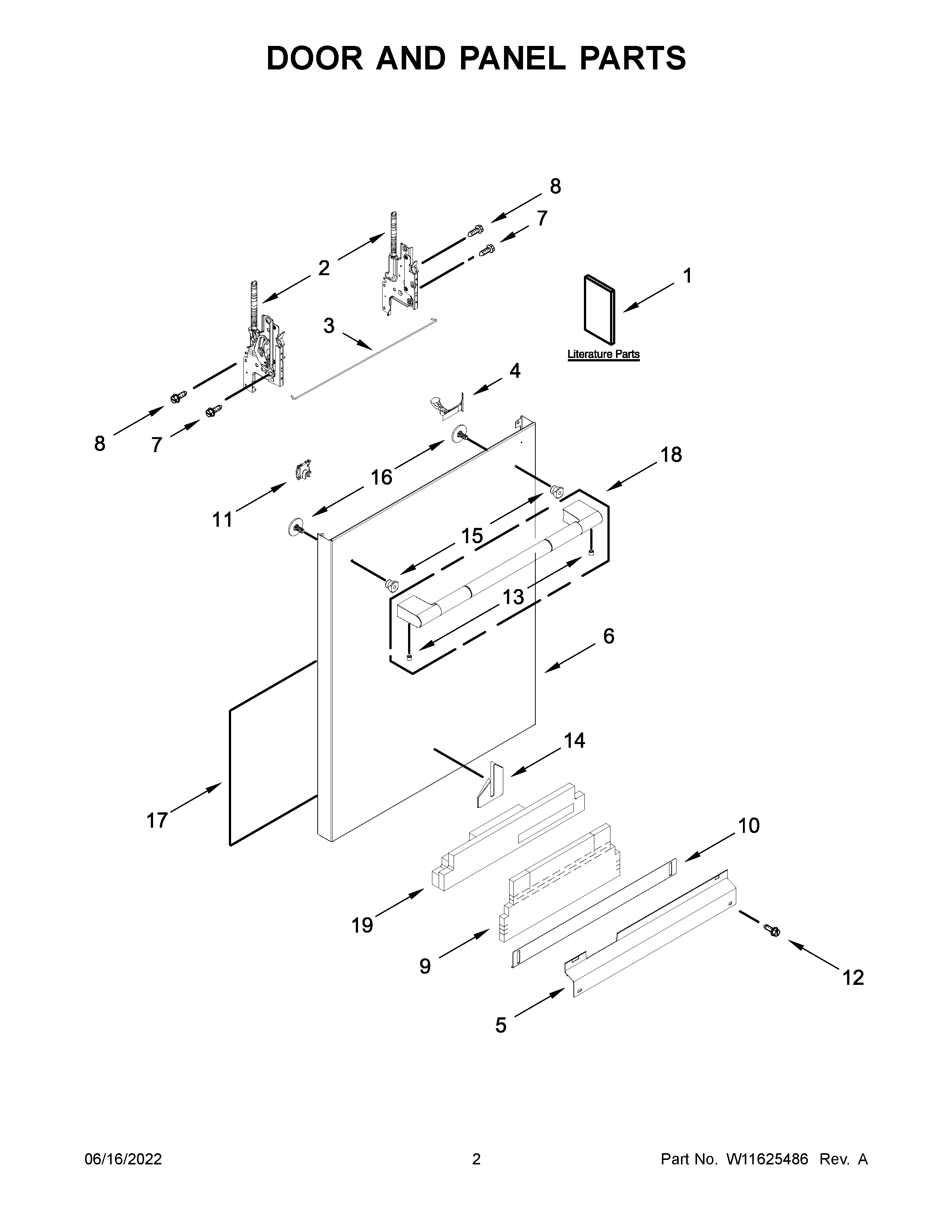

JDPSS244LL2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	OWNERS MANUAL
1B	ENERGY GUIDE
1A	TECH SHEET
2A	W11712996 Whirlpool Door Hinge
2	HINGE-DOOR
3	W11377160 Whirlpool Brace Assembly
4	W11102920 Whirlpool Indicator Light
5	W11545318 Whirlpool Toekick Plate
6	W11505430 Whirlpool Panel
7	W11676450 Whirlpool Screw
8	WPW10309090 Whirlpool Dishwasher Screw
9	W11573704 Whirlpool Dishwasher Shield
10	W11579528 Whirlpool Toe Panel
11	W10692757 Whirlpool Dishwasher Nut Assembly
12	W11551775 Whirlpool Screw
13	W10917698 Whirlpool Dishwasher Screw
14	W11320231 Whirlpool Dishwasher Nameplate
15	W11157086 Whirlpool Dishwasher Door Handle Stud
16	W10826179 Whirlpool Dishwasher Screw
17	W10919861 Whirlpool Insulation Pad
18	W11320226 Whirlpool Dishwasher Handle
19	W11573700 Whirlpool Shield
