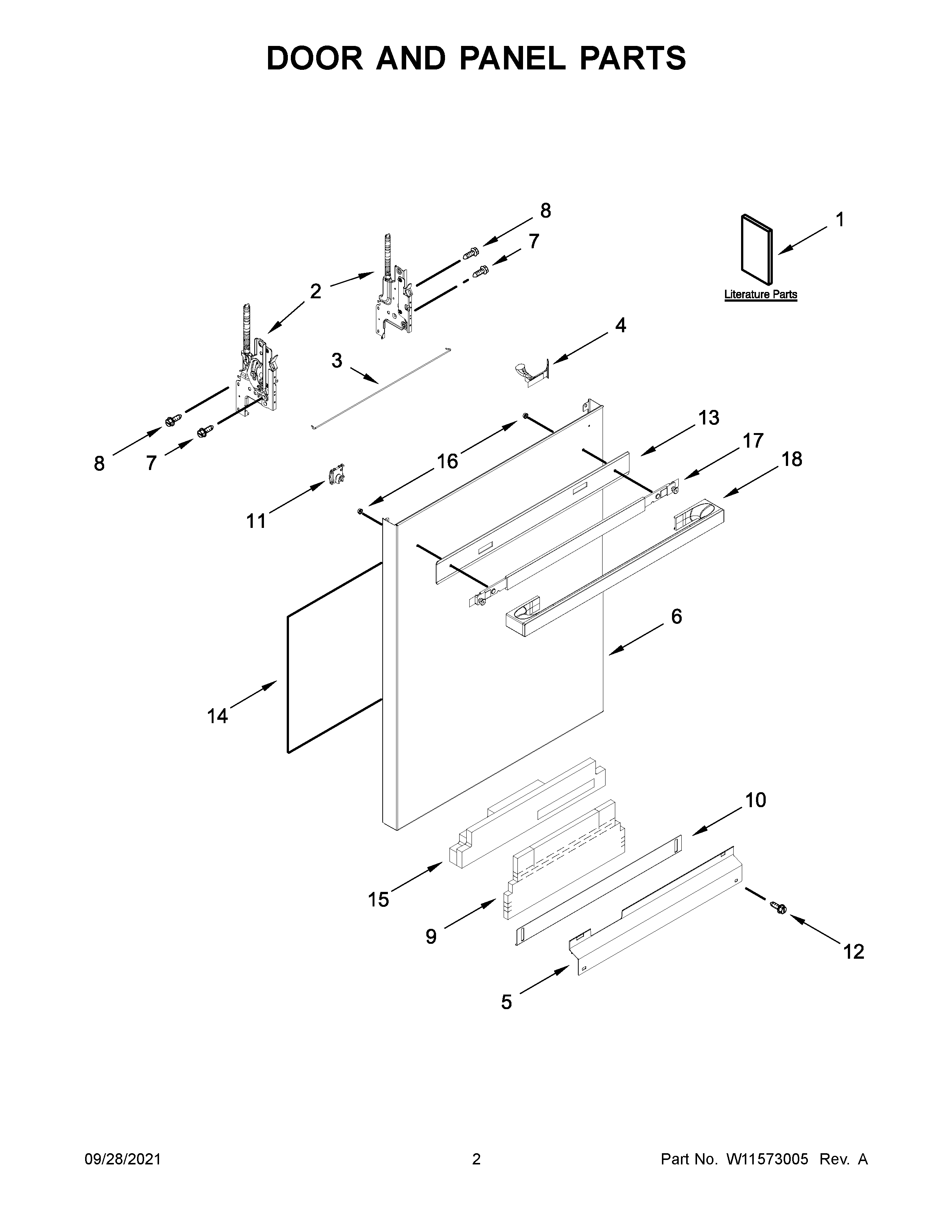

JDPSS244LM1 02 – DOOR AND PANEL PARTS

JDPSS244LM1 02 – DOOR AND PANEL PARTS

Written by

in

JDPSS244LM1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BENERGY GUIDE
1OWNERS MANUAL
1ATECH SHEET
2W11323124 Whirlpool Door Hinge
2AW11323123 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5W11545318 Whirlpool Toekick Plate
6W11579514 Whirlpool Dishwasher Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13CHANNEL, HANDLE REINFORCEMENT
14W10919861 Whirlpool Insulation Pad
15W11573700 Whirlpool Shield
16WP776338 Whirlpool Compactor Nut
17W11505239 Whirlpool Handle
18W11190789 Whirlpool Handle Assembly
