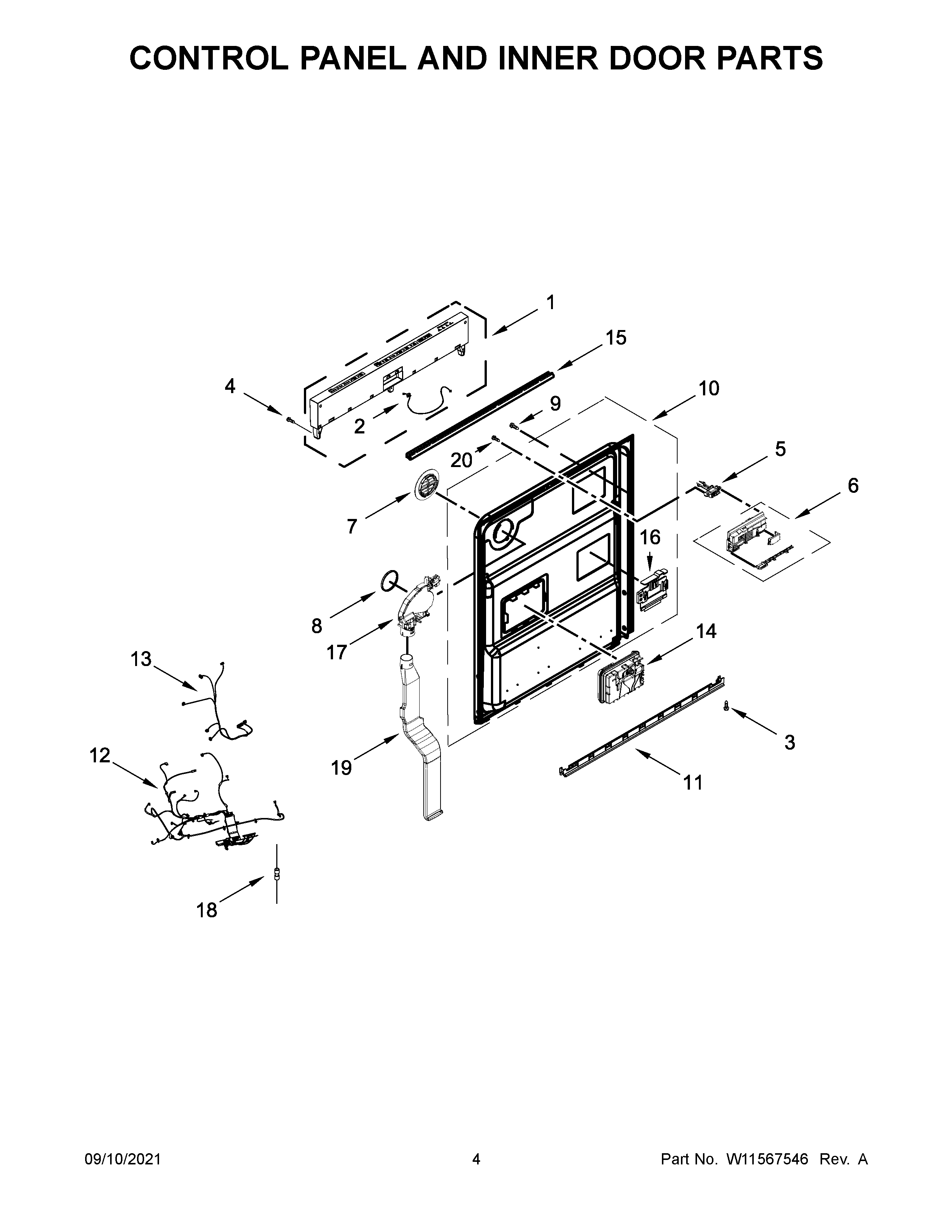

JDPSS245LX0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11572093 Whirlpool Console + Core
2W11084876 Whirlpool Wire Harness
3W11627527 Whirlpool Screw
4W10381476 Whirlpool Dishwasher Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11572094 Whirlpool Electronic Control Board + Core
7W11545290 Whirlpool Deflector
8W11545539 Whirlpool Gasket Seal
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & FUSE)
13W11678803 Whirlpool Wire Harness
14DISPENSER
15W11412696 Whirlpool Seal
16W11088985 Whirlpool Bracket Assembly
17W11414073 Whirlpool Vent Assembly
18W11397505 Whirlpool Wire Harness
19W11038734 Whirlpool Vent Tube
20WPW10213953 Whirlpool Screw
