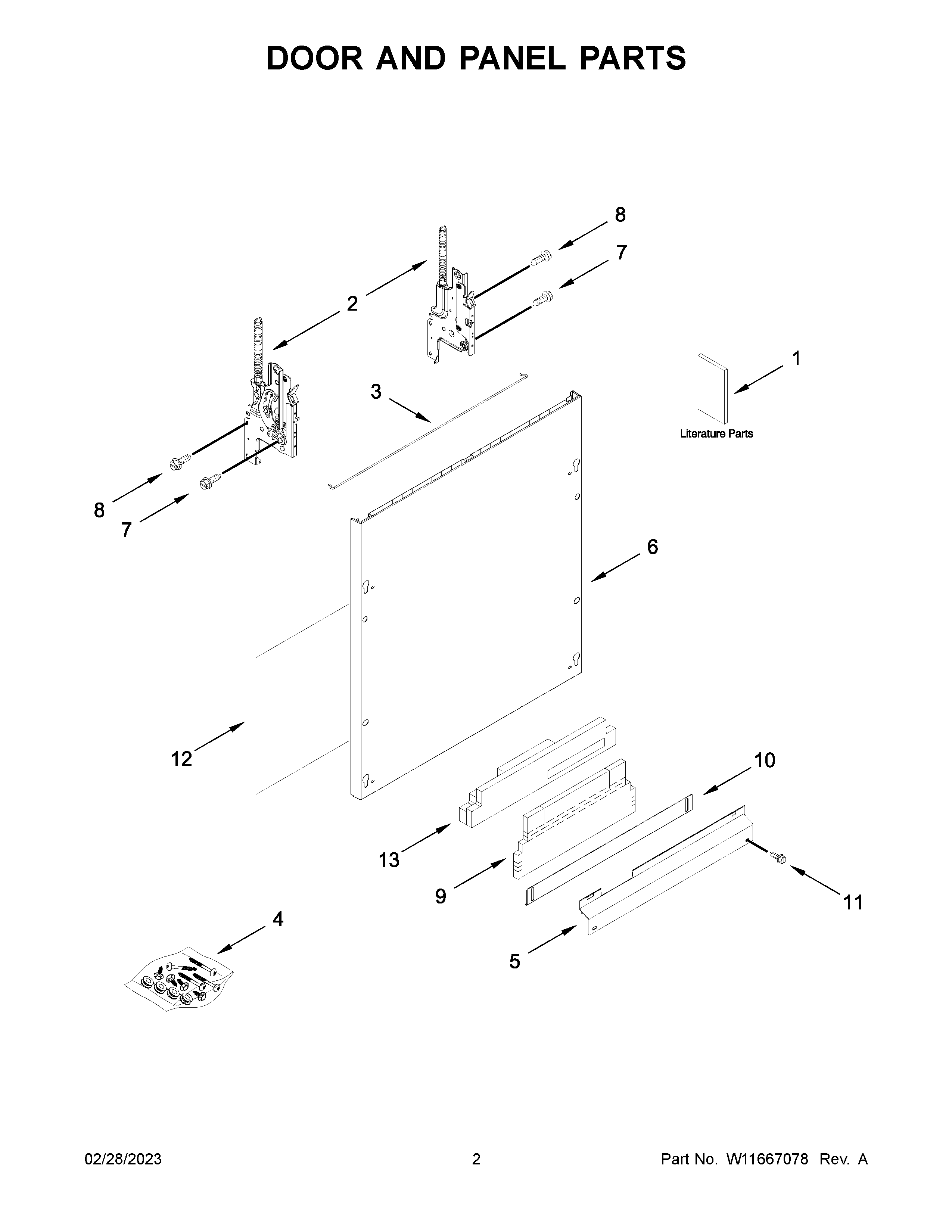

JDPSS245LX1 02 – DOOR AND PANEL PARTS

JDPSS245LX1 02 – DOOR AND PANEL PARTS

Written by

in

JDPSS245LX1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1CW11460372 Whirlpool Dishwasher Template
1OWNERS MANUAL
1BTECH SHEET
2W11323124 Whirlpool Door Hinge
2AW11323123 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
5W11545318 Whirlpool Toekick Plate
6W11505234 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W11551775 Whirlpool Screw
12W11298981 Whirlpool Insulation Pad
13W11573700 Whirlpool Shield
