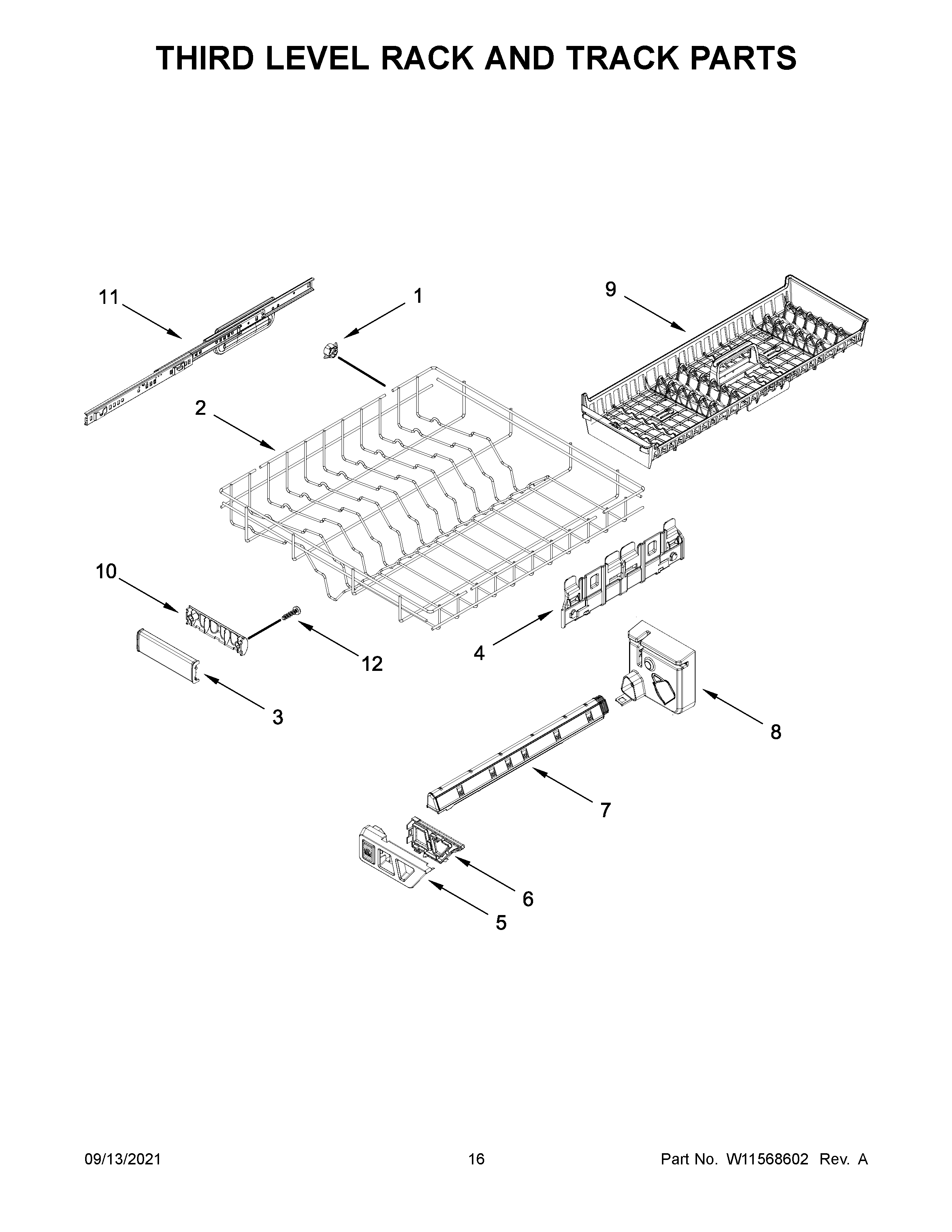

JDPSS246LL0 09 – THIRD LEVEL RACK AND TRACK PARTS
Written by
in
JDPSS246LL0 09 – THIRD LEVEL RACK AND TRACK PARTS
Products
Position
Product
1
W11545286 Whirlpool Nut
2
RACK, THIRD LEVEL
3
HANDLE, DISHRACK
4
W11130709 Whirlpool Mount
5
W11305291 Whirlpool Manifold
6
W11193057 Whirlpool Manifold Assembly
7
W11175552 Whirlpool Feed Tube Assembly
8
W11175564 Whirlpool Manifold Assembly
9
W11690650 Whirlpool Basket Ware
10
HANDLE, DISHRACK REAR
11A
W11047815 Whirlpool Track
11
W11047813 Whirlpool Track
12
WP9741232 Whirlpool Dishwasher Screw
←
