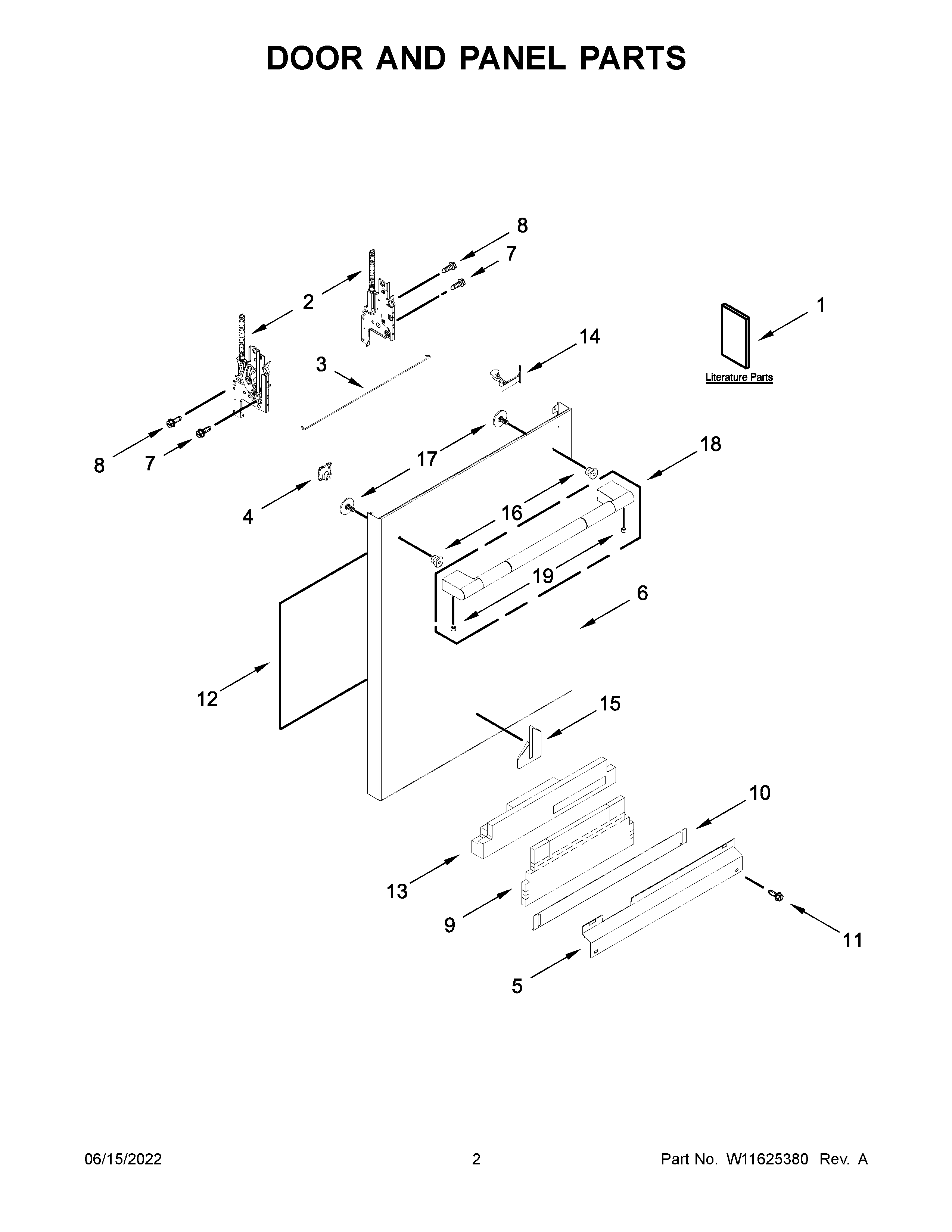

JDPSS246LL1 02 – DOOR AND PANEL PARTS

JDPSS246LL1 02 – DOOR AND PANEL PARTS

Written by

in

JDPSS246LL1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1OWNERS MANUAL
1AENERGY GUIDE
1BTECH SHEET
2AW11712996 Whirlpool Door Hinge
2HINGE-DOOR
3W11377160 Whirlpool Brace Assembly
4W10692757 Whirlpool Dishwasher Nut Assembly
5W11545318 Whirlpool Toekick Plate
6W11505430 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W11551775 Whirlpool Screw
12W10919861 Whirlpool Insulation Pad
13W11573700 Whirlpool Shield
14W11102920 Whirlpool Indicator Light
15W11320231 Whirlpool Dishwasher Nameplate
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10826179 Whirlpool Dishwasher Screw
18W11320226 Whirlpool Dishwasher Handle
19W10917698 Whirlpool Dishwasher Screw
