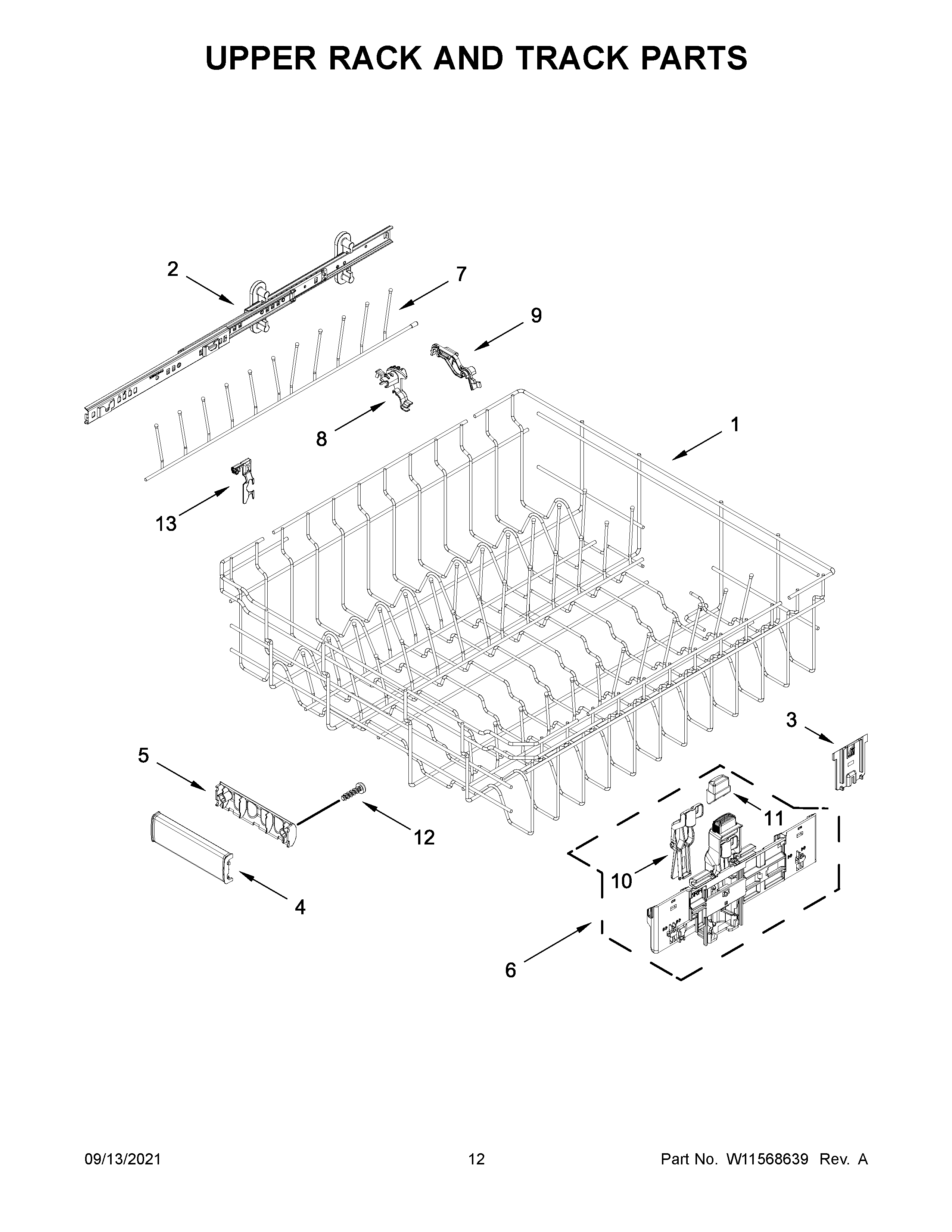

JDPSS246LM0 07 – UPPER RACK AND TRACK PARTS

JDPSS246LM0 07 – UPPER RACK AND TRACK PARTS

Written by

in

JDPSS246LM0 07 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, UPPER
2AW11212734 Whirlpool Track
2W11666271 Whirlpool Track
3W11580020 Whirlpool Positioner
4HANDLE, DISHRACK
5HANDLE, DISHRACK REAR
6AW11180153 Whirlpool Adjuster
6W11685751 Whirlpool Adjuster
7TINE ROW, FOLD DOWN
8W11179755 Whirlpool Clip
9W11627535 Whirlpool Tine Pivot
10W11180178 Whirlpool Positioner
11BUTTON, ADJUSTER ARM
12WP9741232 Whirlpool Dishwasher Screw
13W11373133 Whirlpool Clip Assembly
