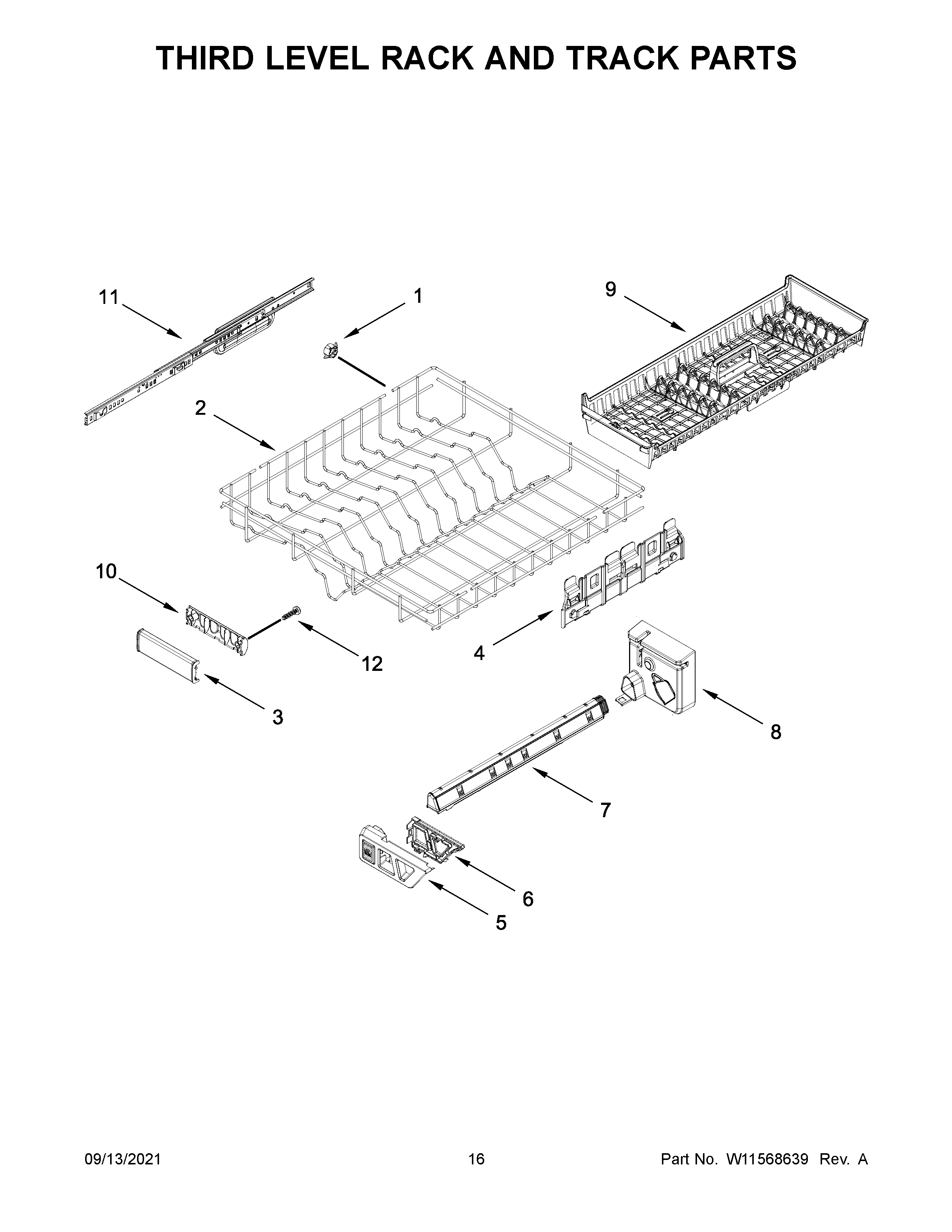

JDPSS246LM0 09 – THIRD LEVEL RACK AND TRACK PARTS

JDPSS246LM0 09 – THIRD LEVEL RACK AND TRACK PARTS

Written by

in

JDPSS246LM0 09 – THIRD LEVEL RACK AND TRACK PARTS

Products

PositionProduct
1W11545286 Whirlpool Nut
2RACK, THIRD LEVEL
3HANDLE, DISHRACK
4W11130709 Whirlpool Mount
5W11305291 Whirlpool Manifold
6W11193057 Whirlpool Manifold Assembly
7W11175552 Whirlpool Feed Tube Assembly
8W11175564 Whirlpool Manifold Assembly
9W11690650 Whirlpool Basket Ware
10HANDLE, DISHRACK REAR
11AW11047815 Whirlpool Track
11W11047813 Whirlpool Track
12WP9741232 Whirlpool Dishwasher Screw
