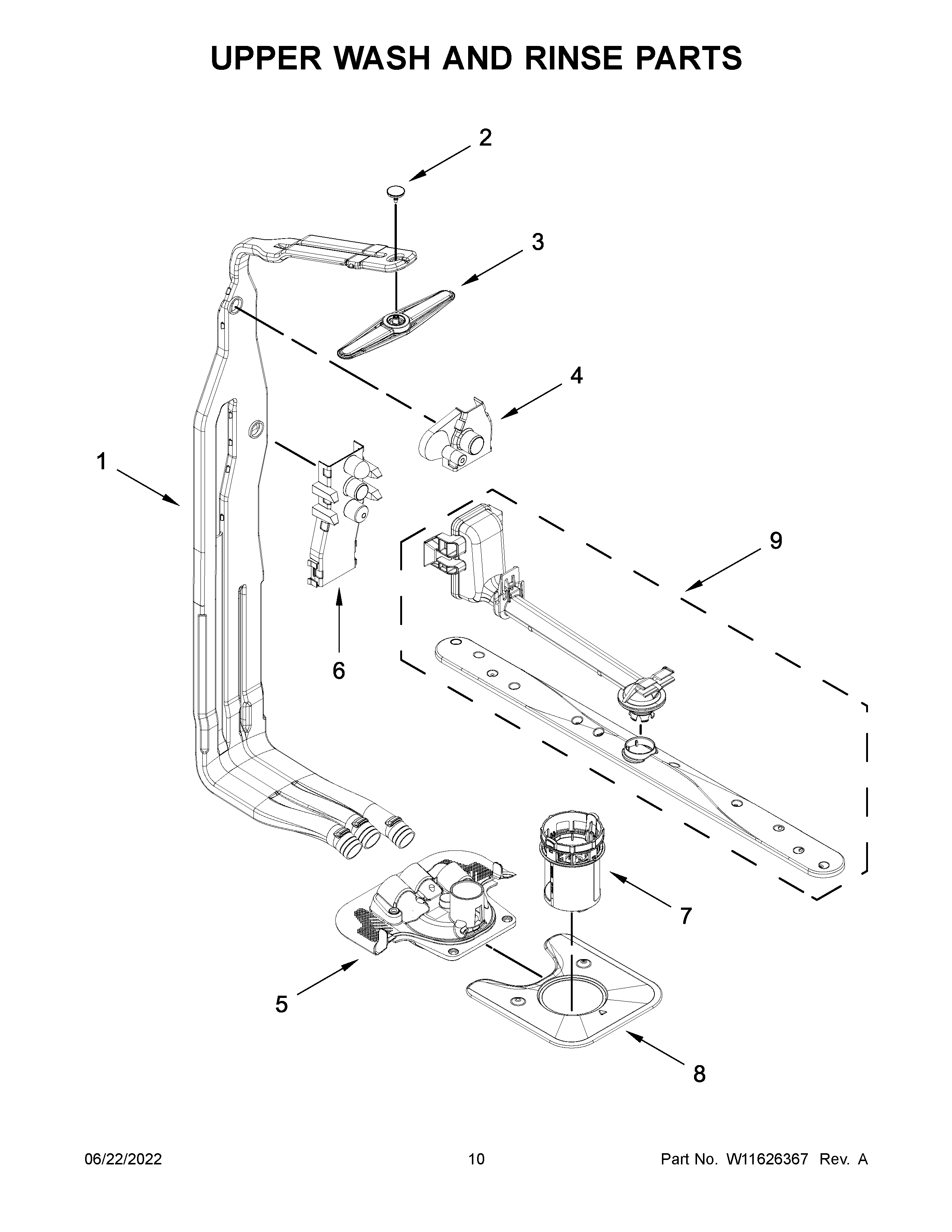

JDPSS246LM1 06 – UPPER WASH AND RINSE PARTS

JDPSS246LM1 06 – UPPER WASH AND RINSE PARTS

Written by

in

JDPSS246LM1 06 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1W11744286 Whirlpool Feed Tube
2W11590538 Whirlpool Retainer Assembly
3W11573766 Whirlpool Dishwasher Spray Arm
4W10892835 Whirlpool Retainer
5W11679656 Whirlpool Dishwasher Diverter
6W11690647 Whirlpool Retainer Clip
7W11460958 Whirlpool Filter
8W11590541 Whirlpool Screen
9MANIFOLD
