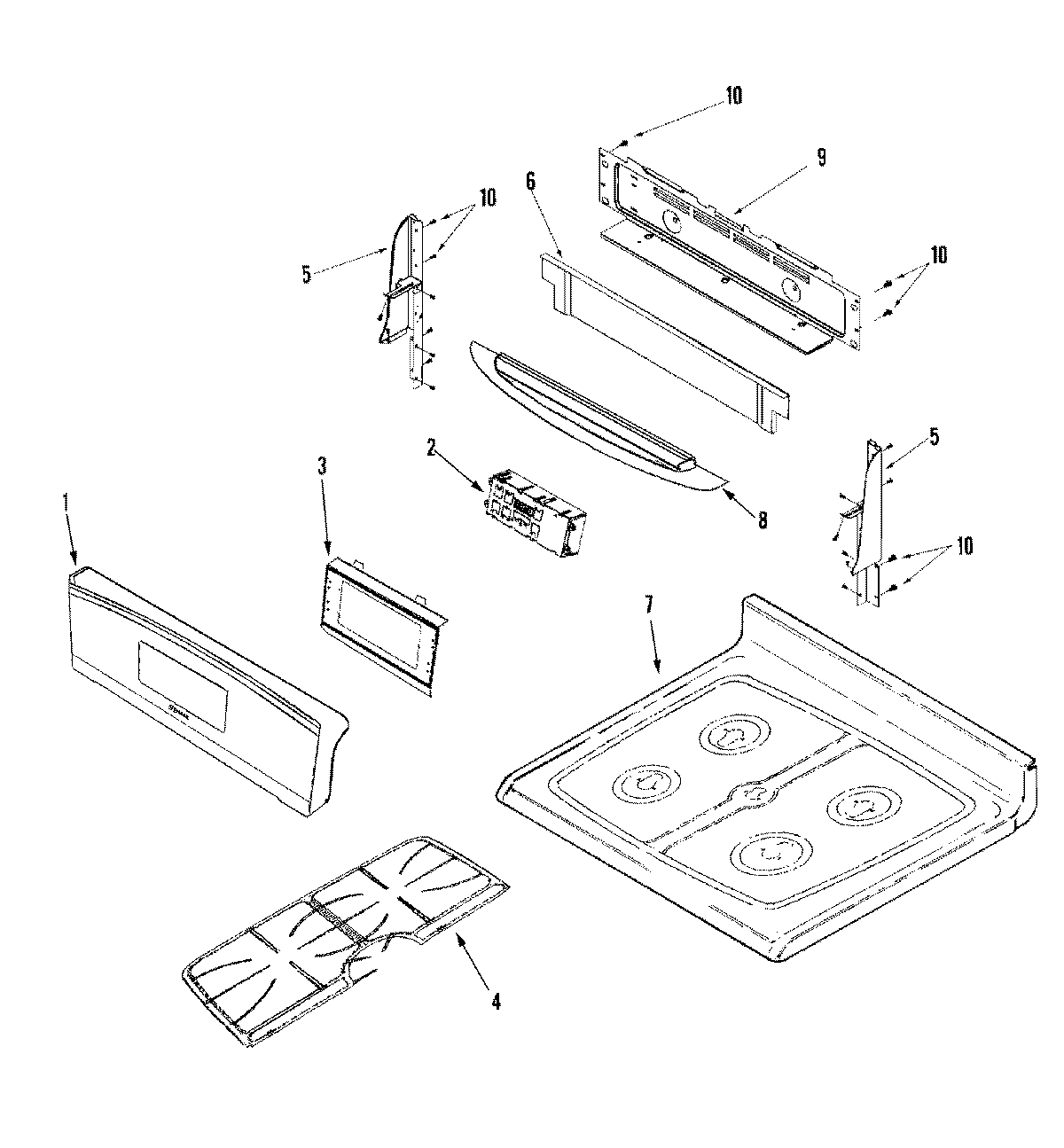

JDR8880RDB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	BACKGAURD ASSY. (BLACK)
2	MAY 8507P333-60
3	MAY 74011982
4	W10919249 Whirlpool Burner Grate Foot
4	MAY M0275597
4	MAY 74009143
5	End Cap (Right Black)
5	End Cap (Left Black)
6	MAY 74009444
7	MAY 74009086
8	MAY 74009202
8	SCREW, SHOULDER
9	MAY 74010983
9	SCREW (8BX3/8-NI)
10	SCREW
