JDR8880RDB 04 – DOOR/DRAWER

JDR8880RDB 04 – DOOR/DRAWER

Written by

in

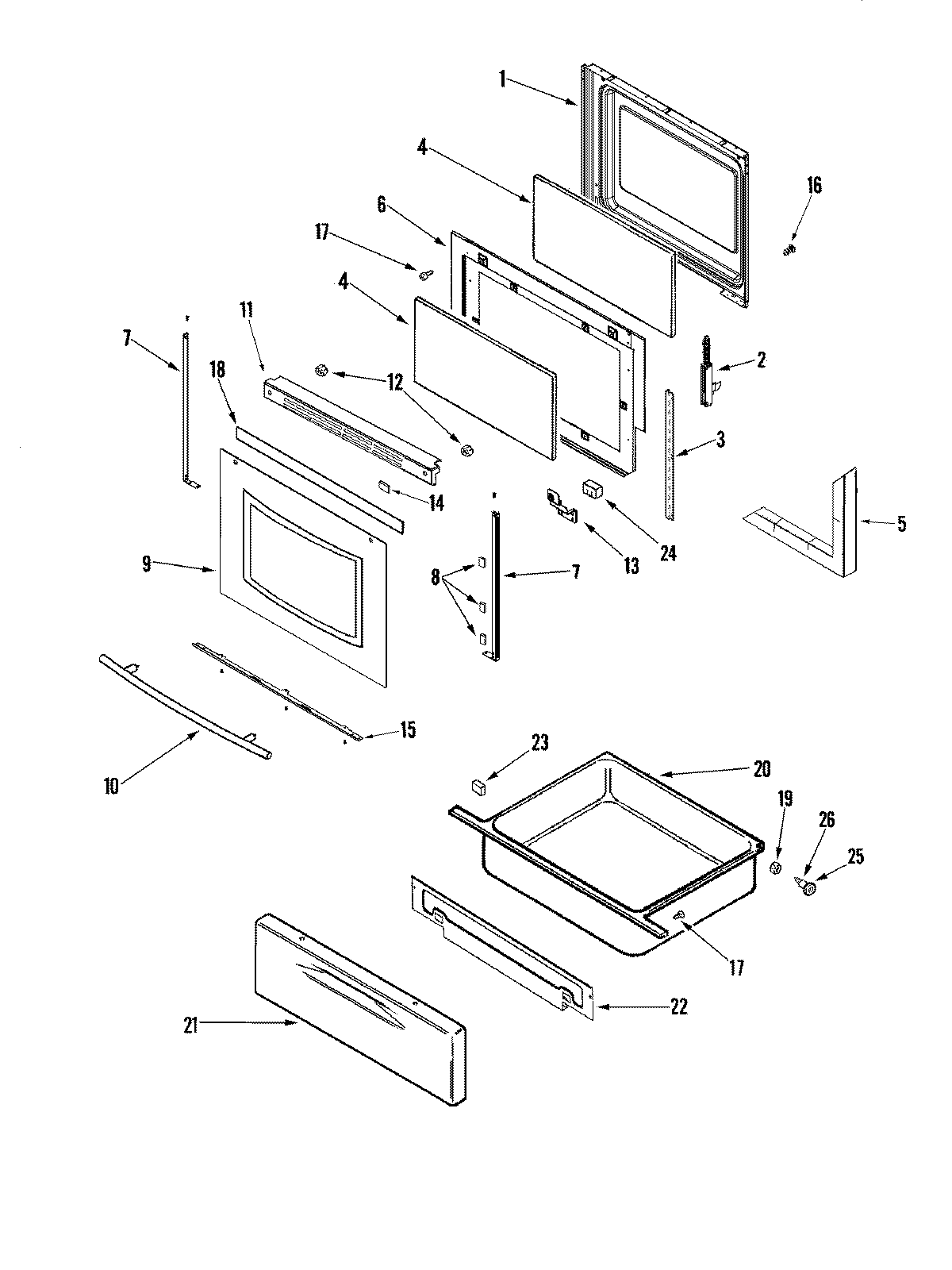

JDR8880RDB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
33801F886-51 Whirlpool Mounting Bracket
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6Retainer, Side
7MAY 74010560
8WP74009025 Whirlpool Double Sided Tape
9MAY 74008686
10MAY 74008920
11WP98008545 Whirlpool Screw
11MAY 74008890
12WP3400029 Whirlpool Dishwasher Nut
13BRACKET, DOOR HANDLE (RT)
13BRACKET, DOOR HANDLE (LT)
14WP74004224 Whirlpool Tape
15TRIM, BOTTOM (BLK)
16SCREW (10-24X5/16-NI)
17SCREW
18TAPE, FOIL (3“ WIDE)
19WP488130 Whirlpool Air Conditioner Nut
20WP3405F037-80 Whirlpool Utility Drawer
21PANEL, DRAWER (BLK)
22SHIELD, DRAWER HEAT
23WP74005546 Whirlpool RU Spacer
24INSULATION, CORNER (DOOR)
25SHAFT, STORAGE DRAWER ROLLER
26WP74004078 Whirlpool Door Roller
