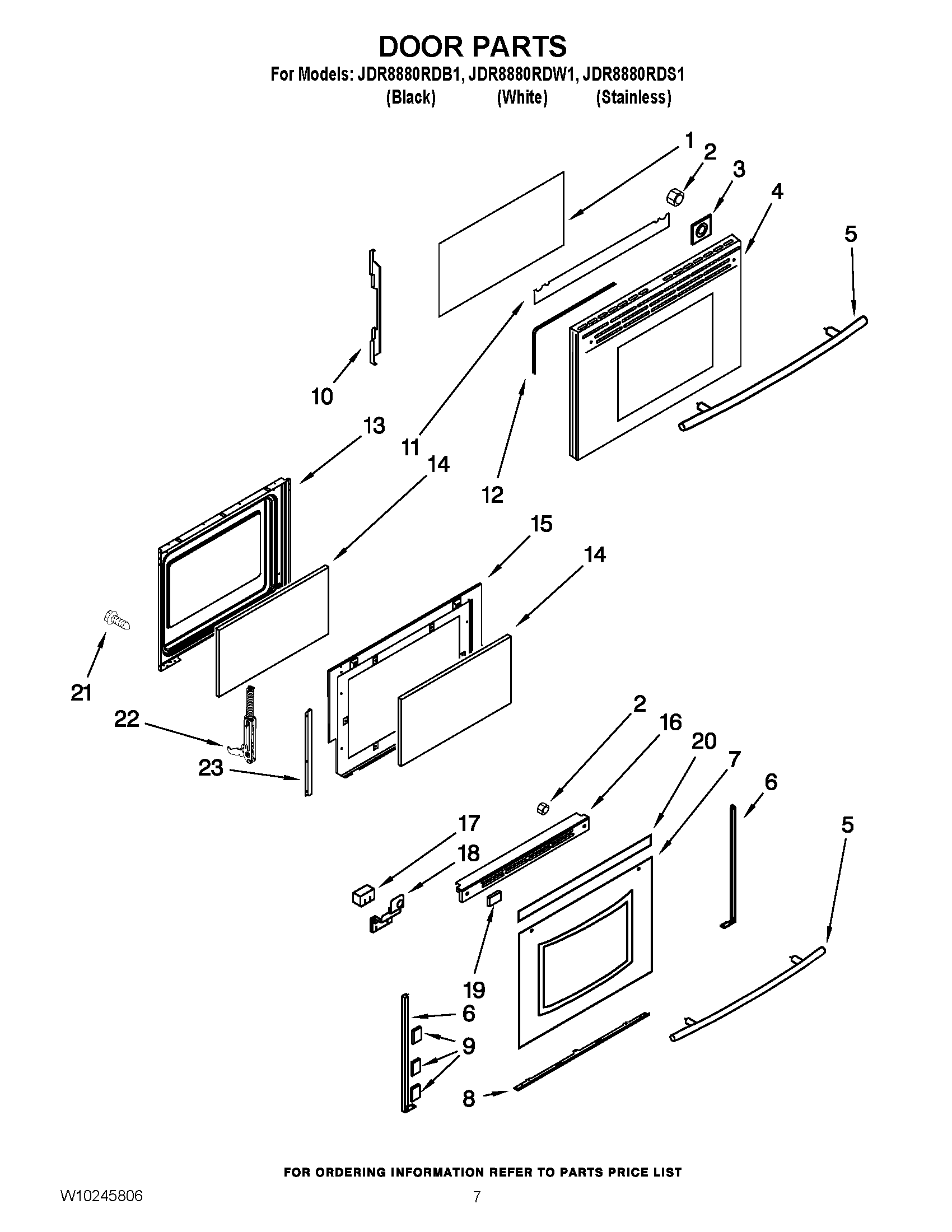

JDR8880RDB1 06 – DOOR PARTS

Products

Position	Product
1	MAY 7002P246-60
2	MAY 7103P176-60
3	MAY 3823F017-45
4	PANEL, DOOR (STL)
5	HANDLE, DOOR (WHITE)
6	MAY 3608F126-71
6	MAY 3608F126-70
7	GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS)
7	MAY 7902P784-60
8	MAY 3608F092-70
8	MAY 3608F092-71
9	MAY W10208307
9	Tape, Double Sided (White)
10	MAY 3801F918-51
11	STRAP, INSULATION
12	MAY 7201P140-60
13	MAY 2402W297-19
14	MAY 7902P463-60
15	Retainer, Side
16	MAY 3608F139-70
16	TRIM, TOP
17	INSULATION, CORNER (DOOR)
18	MAY 3801P858-45
18	MAY 3801P857-45
19	MAY W10208318
20	TAPE, FOIL 3“
21	SCREW (10-24X5/16-NI)
22	MAY 7106P124-60
23	BRACKET, INNER GLASS
