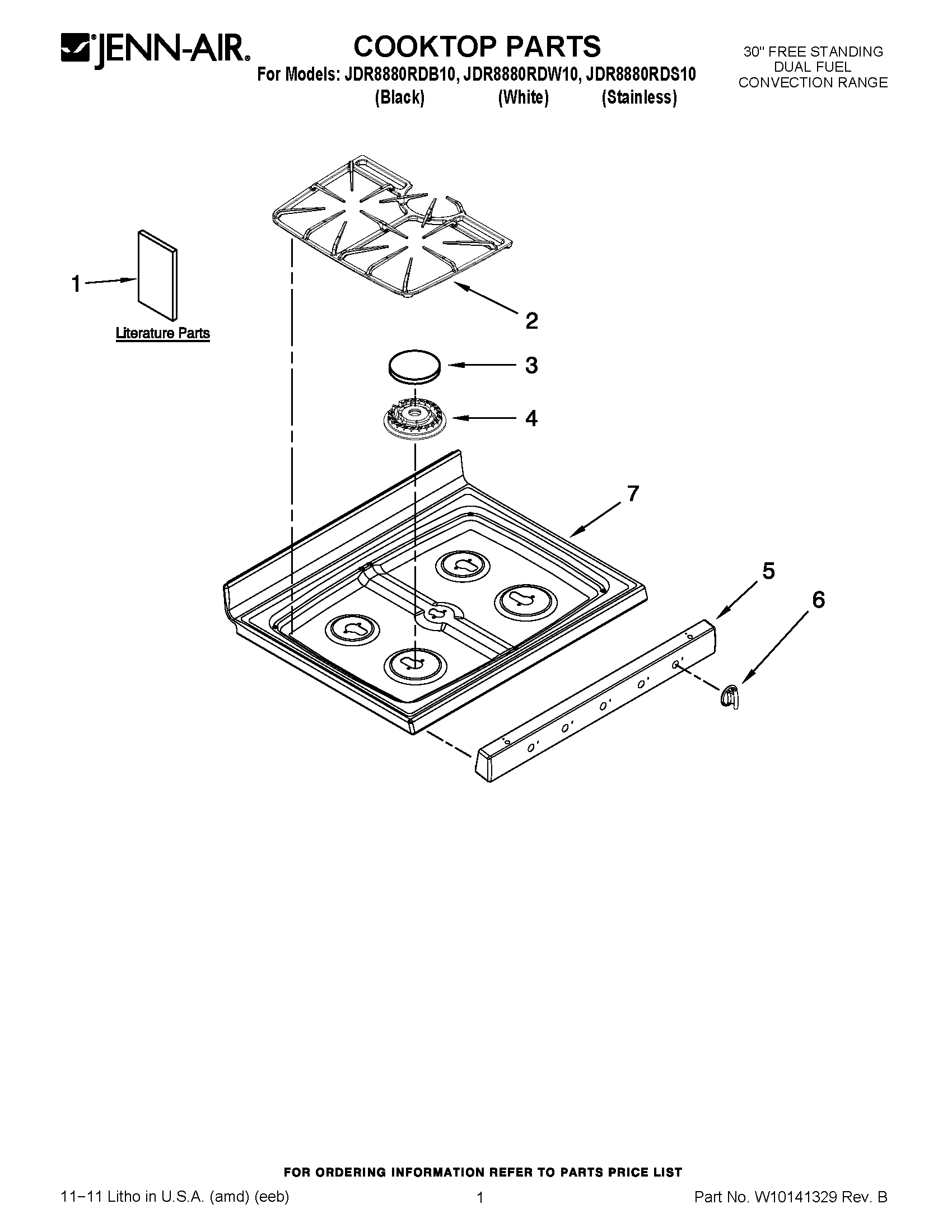

JDR8880RDB10 01 – COOKTOP PARTS

Products

Position	Product
1	Wiring Diagram
1	MAY 8113P622-60
2	MAY 74009143
2	GRATE, DOUBLE (GRY-FOR WHT MOD
3	WP74007925 Whirlpool Burner Cap
3	CAP, BURNER (SMR-GRY)
3	WP3191898 Whirlpool Surface Burner Cap Black
3	WP74007420 Whirlpool Large Gray Burner Cap
3	WP74007752 Whirlpool Burner Cap (Medium Gray)
3	WPW10154101 Whirlpool Burner Cap
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5	PANEL, MANIFOLD (WHT)
5	MAY 74009138
5	PANEL, MANIFOLD (STL)
6	WP74009147 Whirlpool Control Knob
7	MAY 74009086
7	TOP, MAIN 5 BURNER (WHT)
