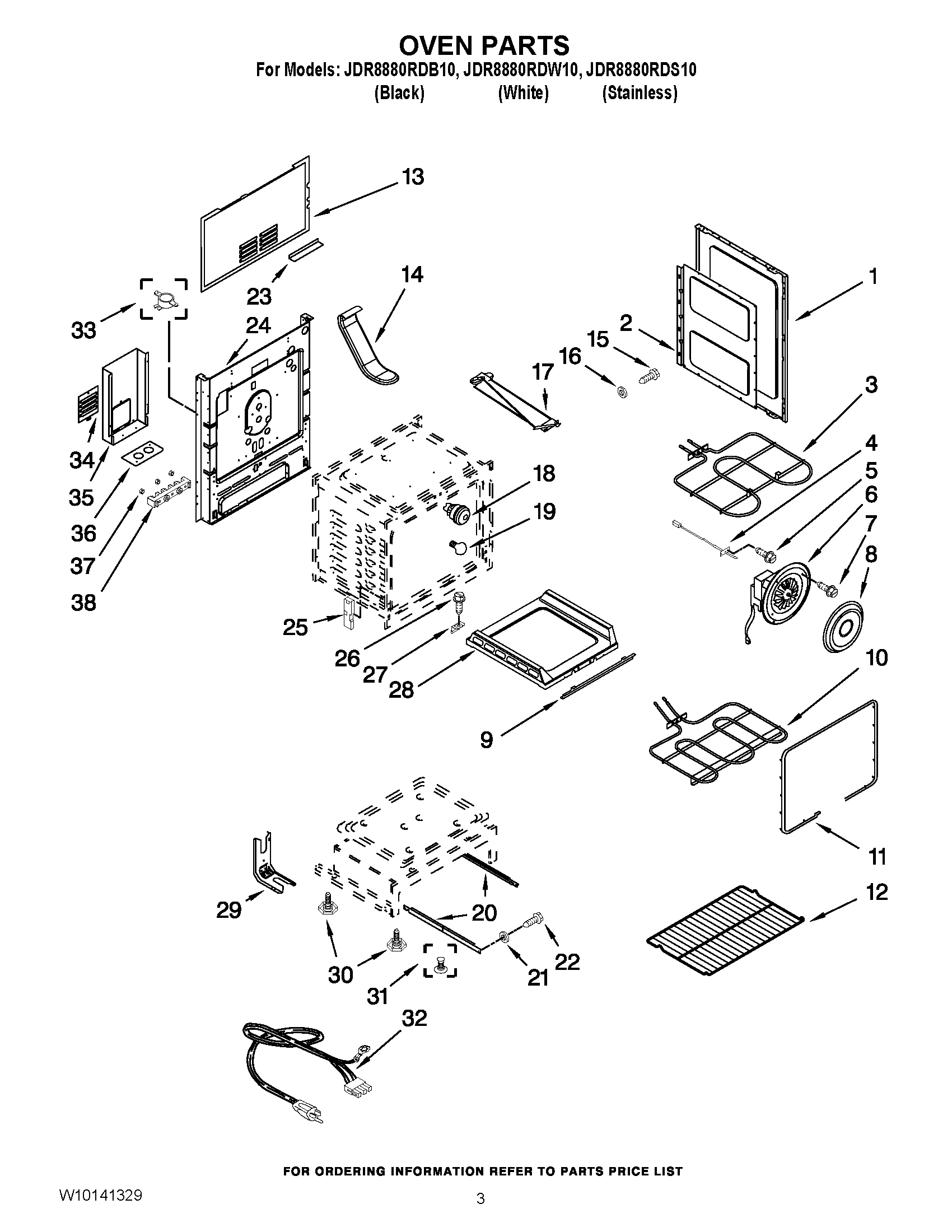

JDR8880RDB10 03 – OVEN PARTS

Products

Position	Product
NI	MAY 5171P839-60
NI	SPUDS, LP GAS (KIT OF 5)
NI	4396923 Whirlpool Broil Pan Set Gray Porcelain
NI	MAY 5171P790-60
1	MAY 74009710
1	MAY 74008709
2	MAY 74008701
3	MAY 74011910
4	12001656 Whirlpool Range Oven Temperature Sensor
5	SCREW
6	MAY 74011177
8	MAY 47005783
9	SUPPORT, OVEN BOTTOM (FRONT)
10	MAY 7406P456-60
11	MAY 740086960
12	WP74008763 Whirlpool Oven Rack
13	COVER, MAIN WIRE (ELE)
14	Smoke Eliminator
15	SCREW W/SHOULDER (No.8)
16	SPACER, SIDE PANEL
17	MAY 74011896
18	WP74011278 Whirlpool Light
19	RANGE ONLY 40W 120V APPL BULB
20	RUNNER, SERVICE DRAWER
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	BOTTOM, WIRE COVER
24	MAY 74008699
25	WP74010551 Whirlpool Receiver
26	WP74003976 Whirlpool Screw
27	SUPPORT, OVEN BOTTOM (REAR)
28	WPW10211368 Whirlpool Oven Bottom
29	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
30	W11665456 Whirlpool Range Level Foot
31	MAY 74008688
32	MAY 74006398
33	74008715 Whirlpool Thermal Limiter Switch
34	MAY 74008340
35	MAY 74008760
36	PLATE, CONDUIT REINFORCEMENT
37	WP7103P027-60 Whirlpool Nut
38	WPW10245259 Whirlpool Terminal Block
