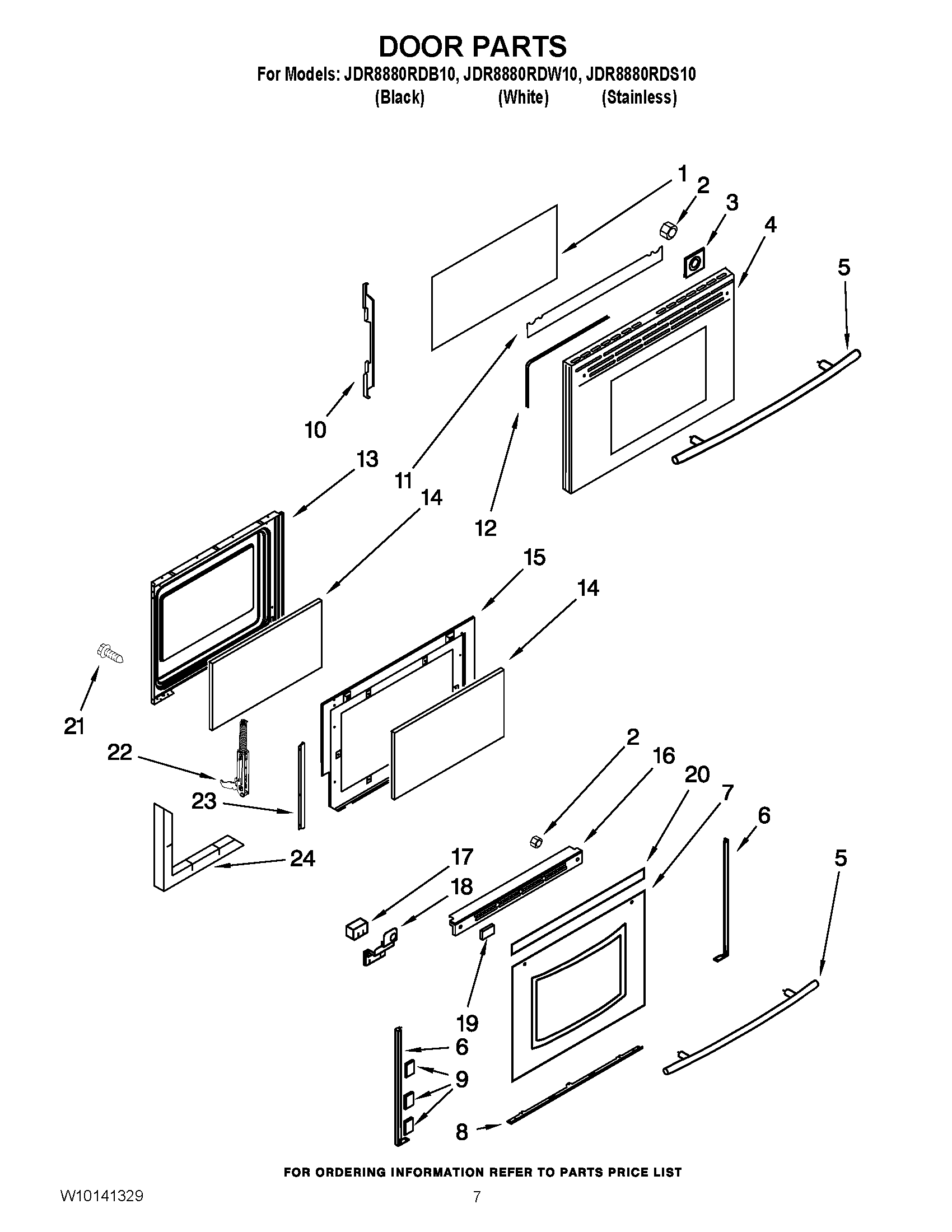

JDR8880RDB10 06 – DOOR PARTS

JDR8880RDB10 06 – DOOR PARTS

Written by

in

JDR8880RDB10 06 – DOOR PARTS

Products

PositionProduct
1MAY 7902P805-60
2WP3400029 Whirlpool Dishwasher Nut
3MAY 74008914
4PANEL, DOOR (STL)
5MAY 74008920
6MAY 74010561
6MAY 74010560
7MAY 74008686
7GLASS, DOOR (WHT)
8WP3608F092-71 Whirlpool Bottom Trim
8TRIM, BOTTOM (BLK)
9WP74009014 Whirlpool Double Tape
9WP74009025 Whirlpool Double Sided Tape
10MAY 3801F918-51
11TAPE, FOIL
1274008916 Whirlpool Window Gasket
13MAY 74008926
1474003645 Whirlpool Range Oven Door Inner Glass
15Retainer, Side
16MAY 74008747
16MAY 74008890
17INSULATION, CORNER (DOOR)
18MAY 74009413S
18BRACKET, DOOR HANDLE (LT)
19WP74004224 Whirlpool Tape
20TAPE, FOIL (3“ WIDE)
21SCREW (10-24X5/16-NI)
2274010546 Whirlpool Range Oven Door Hinge
233801F886-51 Whirlpool Mounting Bracket
24INSULATION, OVEN DOOR
