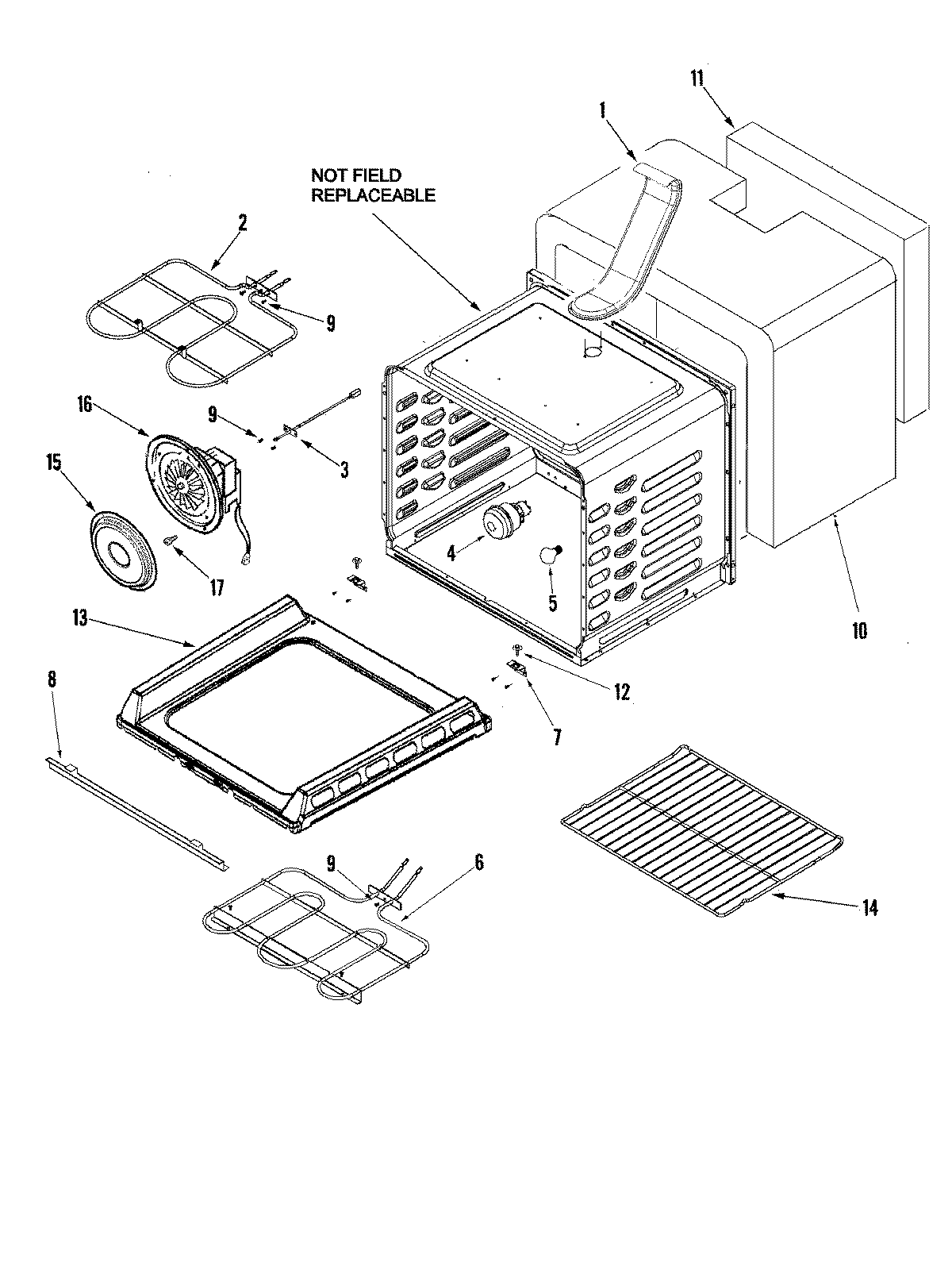

JDR8880RDS 02 – CAVITY

Products

PositionProduct
1MAY 8034P009-60
1Smoke Eliminator
2MAY 74011910
312001656 Whirlpool Range Oven Temperature Sensor
4WP74011278 Whirlpool Light
5RANGE ONLY 40W 120V APPL BULB
6MAY 7406P456-60
7SUPPORT, OVEN BOTTOM (REAR)
8SUPPORT, OVEN BOTTOM (FRONT)
9SCREW
10INSULATION, WRAPPER
11MAY 7002P492-60
12WP74003976 Whirlpool Screw
13WPW10211368 Whirlpool Oven Bottom
14WP74008763 Whirlpool Oven Rack
15COVER, CONVECT
16MAY 74011177
